3

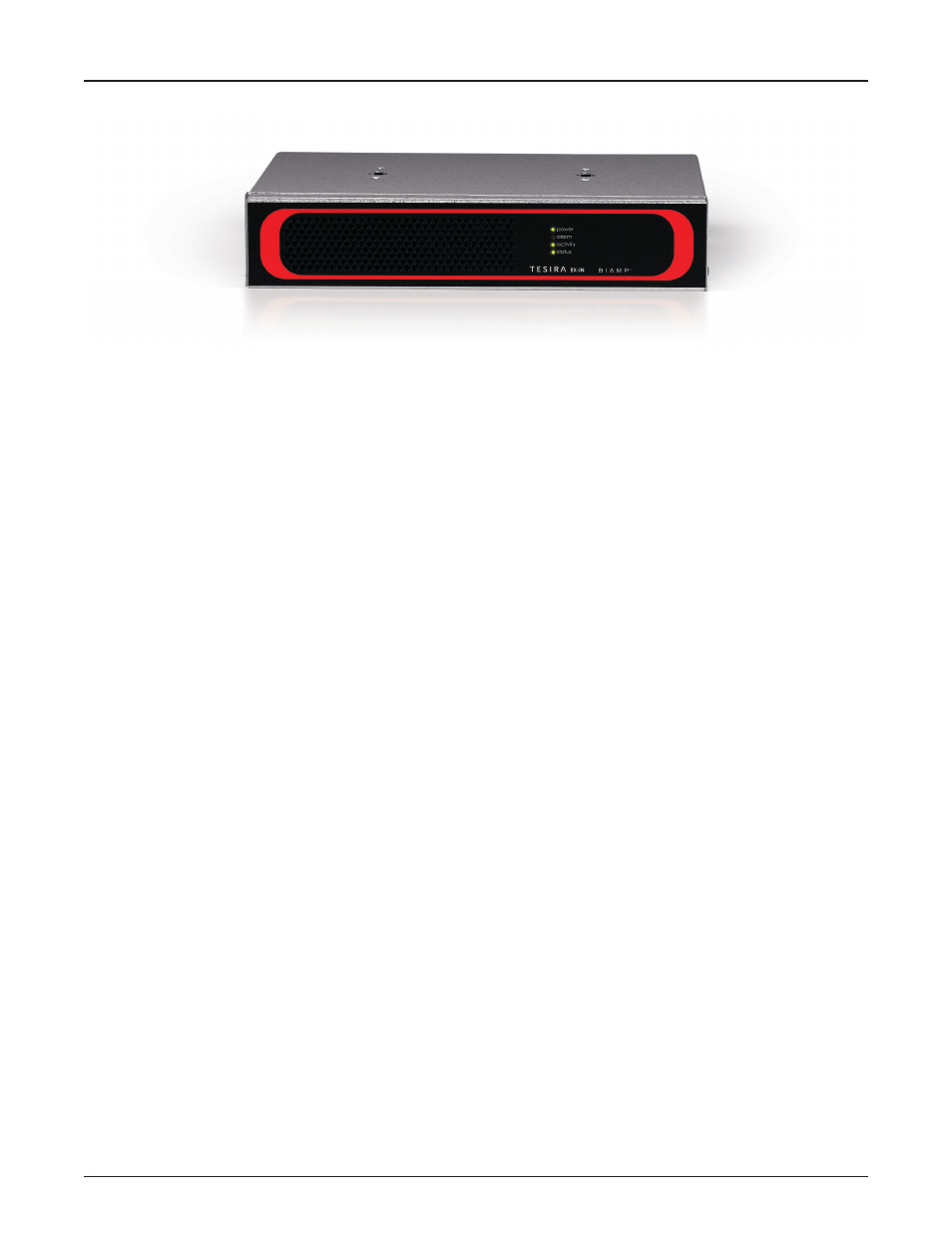

TESIRA EX-IN, EX-OUT & EX-IO

The Tesira

®

EX-IN, EX-OUT and EX-IO are half-rack expander units for use with Tesira SERVER and

SERVER-IO devices. Each expander provides a total of four channels of analog audio. The EX-IN is a
4-channel mic/line level input expander, the EX-OUT is a 4-channel mic/line level output expander and
the EX-IO provides two channels of mic/line level input and two channels of mic/line level output. The
expanders communicate with the Tesira AVB network for audio networking, configuration and control,
and are powered by PoE+.

FEATURES

• Input and output expanders allow placement of audio I/O in remote locations
• Expanders can be added seamlessly to existing Tesira installations as the system’s needs

change and grow

• Half-rack chassis facilitates discreet and convenient installation without the need for an

equipment rack

• Fully configurable and controllable via the software

BENEFITS

• Audio and control networking over AVB
• Powered by PoE+
• Plug-in barrier strip connectors
• Front panel LEDs for device status indications
• Half-rack chassis
RoHS compliant and AES grounded
• Covered by Biamp Systems’ 5-year warranty
