Appendix-c fluid calibration (other than water), R 1. 0 2, F i l l – Sotera 800 Series (825, 850) User Manual
Page 11
11
CAUTION:
CAUTION:
CAUTION:
CAUTION:
CAUTION: Calibrating with a fluid other than water voids
Table #1. After calibration, set the meter to CAL 4, and use
the meter on CAL 4 (unless you input a different number during
step 9 below).
You will need a container of known volume, at least 5 gallons
or larger. Do not exceed a 60 gallon container.
1.
1.
1.
1.

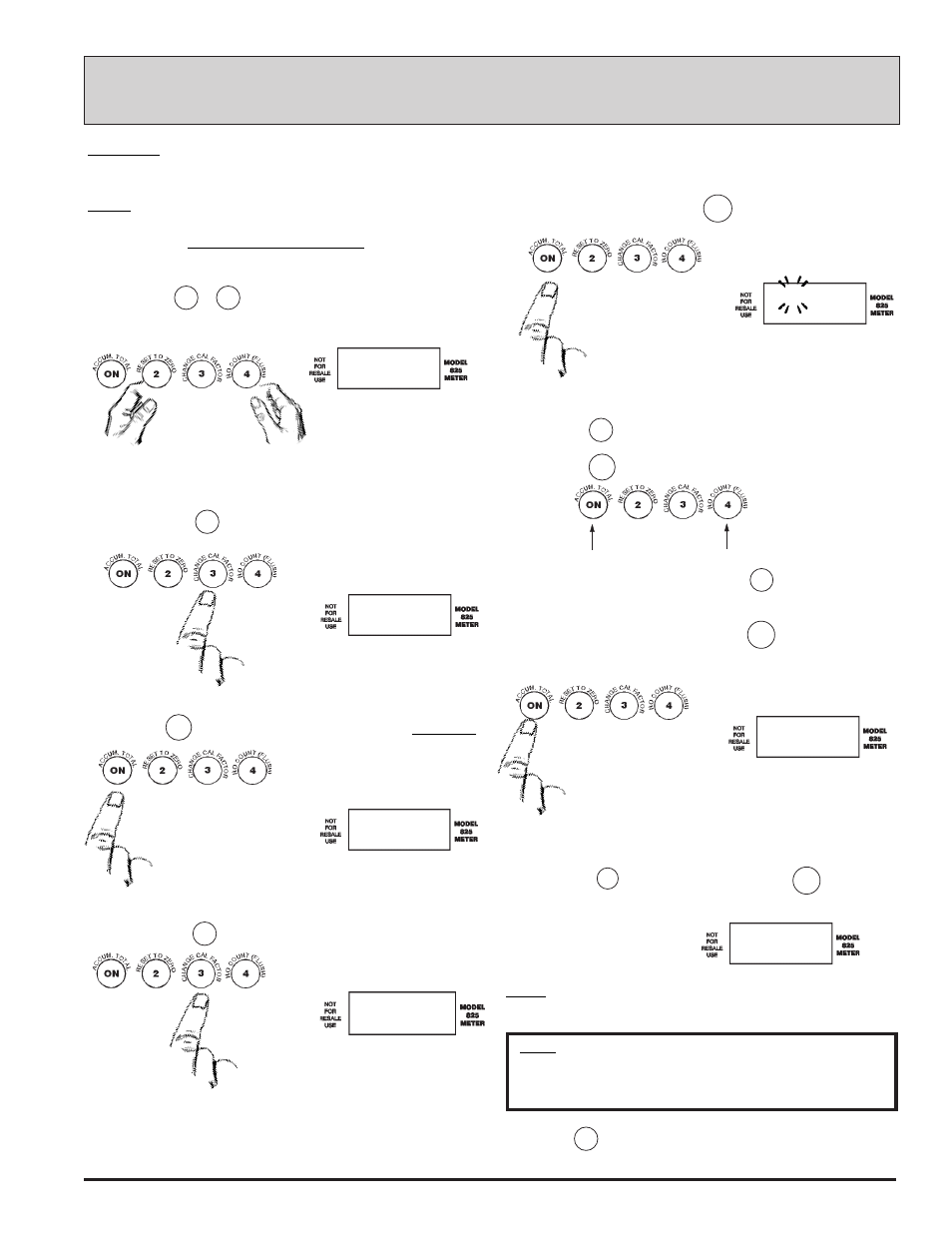

1. Press the 2 & 4 buttons at the same time
and hold for 3 seconds.
The display will read the version of the software loaded in
the meter (example: "7r1.02").
2.
2.
2.
2.
2. Press button 3 to enter calibration mode.
The unit of measure will be displayed.
3.
3.
3.
3.
3. Press the ON button to change unit of measure, if required.
4.
4.
4.
4.
4. Press button 3 .
The display will read "FILL".
5.
5.
5.
5.
5. Now dispense fluid into your container. "FILL" will flash on
the display. For best results, dispense fluid at the same flow
rate that will be used in actual use.
6.
6.
6.
6.
6. After dispensing, press the ON button.
The left digit of the display will blink.
7.
7.
7.
7.
7. Press the 4 button to increment the digit to the amount
of fluid dispensed (example: 05.00).
Press the ON button to move to the right.
If you make a mistake, press button 2 to start back at the
left- most digit.
8.
8.
8.
8.
8. After number is loaded, press the ON button again
to accept.
99999. Display now shows .
This is the default for water. Check Table 1 for your
fluid. Press 3 to change the Cal #. Press ON to accept.
Display will again Show "7r1.02".
Note:
Note:
Note:
Note:
Note: IF YOU ACCEPT CAL 4, USE THE METER ON CAL 4
WHEN DISPENSING THIS FLUID.
Note: If the value entered is out of an acceptable range, the
display will read "Err0" and the meter will revert to the
previous settings. See Troubleshooting Guide for more
information.
10
10
10
10
10. Press 2 to get back to the normal operating mode.
7
r 1. 0 2
GAL
QT
F I L L
APPENDIX-C Fluid Calibration (other than water)
CAUTION: DON'T DO THIS unless you understand fully how CAL factors work.
QT
0 0.0 0
Move to Right
Increment No.
CAL
4
CAL
4
7
r 1. 0 2
