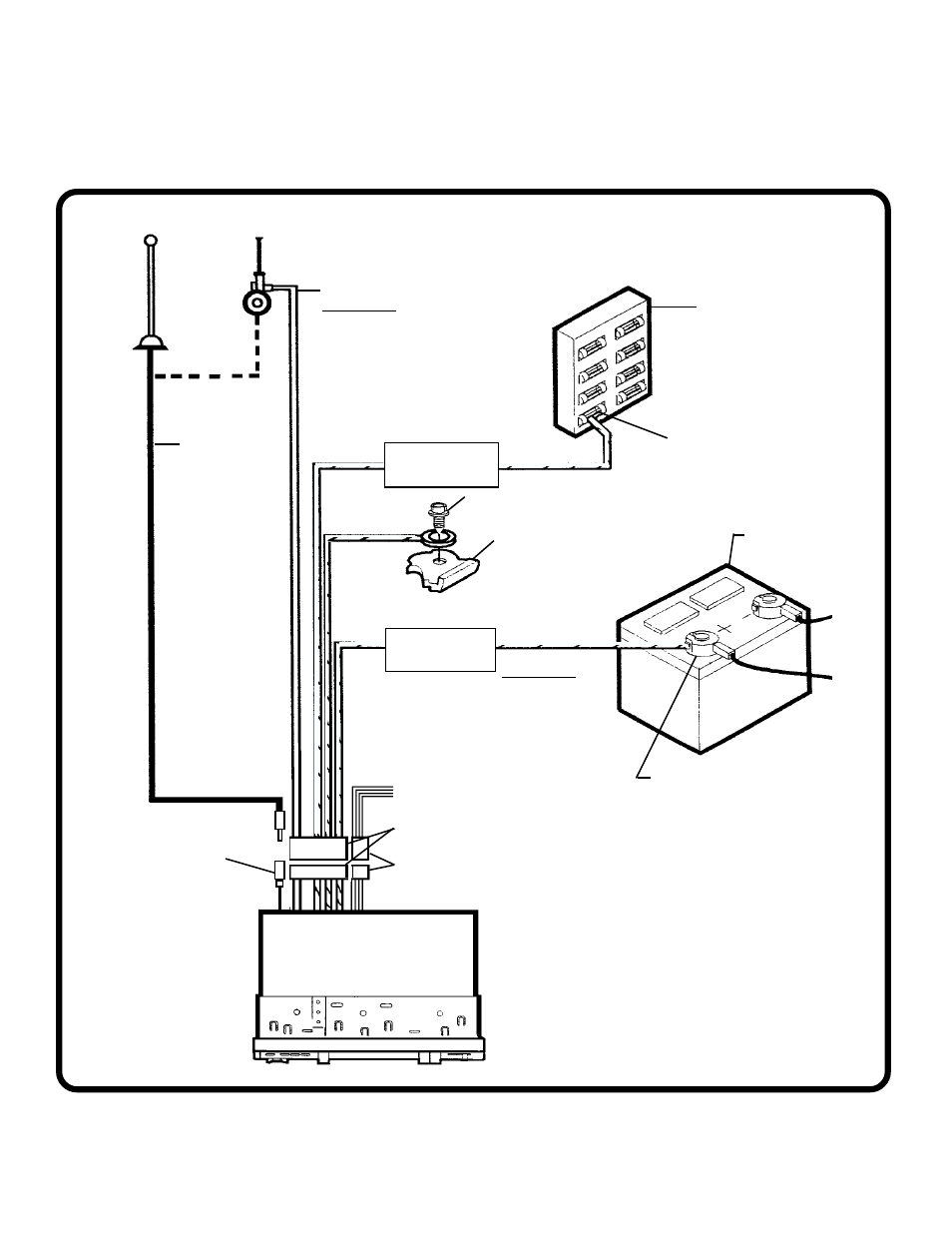

R R R R R A A A A ADIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING
REFER TO PAGE 5 FOR SPEAKER WIRING
-4-
BLACK
EXISTING
ANTENNA
CABLE "RADIO" OR
"ACCESSORY" FUSE
ANTENNA
AUTOMATIC ANTENNA
CAR
FUSEBLOCK
IMPORTANT
THE BLUE WIRE CAN BE USED TO
REMOTELY ACTIVATE AN AUTOMATIC
ANTENNA OR AN EXTERNAL AMPLIFIER
(SEE ANTENNA OR AMPLIFIER MANUAL)
ANTENNA SOCKET AND
LEAD ON REAR OF RADIO
POSITIVE (+) TERMINAL 12 VOLT
BATTERY
CAR BATTERY
METAL PART OF DASH
(DRILL HOLE IF NECESSARY)
SCREW
RED
RADIO
IMPORTANT
THIS WIRE MUST BE
CONNECTED AS SHOWN
OR RADIO WILL NOT
OPERATE PROPERLY
SEE PAGE 5 FOR
SPEAKER WIRING
9 PIN PLUGS
BLUE
YELLOW
0.5-AMP FUSE
15-AMP FUSE
4 PIN PLUGS
