Assembling the speakers – Atlantic Technology High Performance Loudspeaker Components FS-3200 User Manual
Page 4
4
System FS-3200 High Performance Loudspeakers
Placement

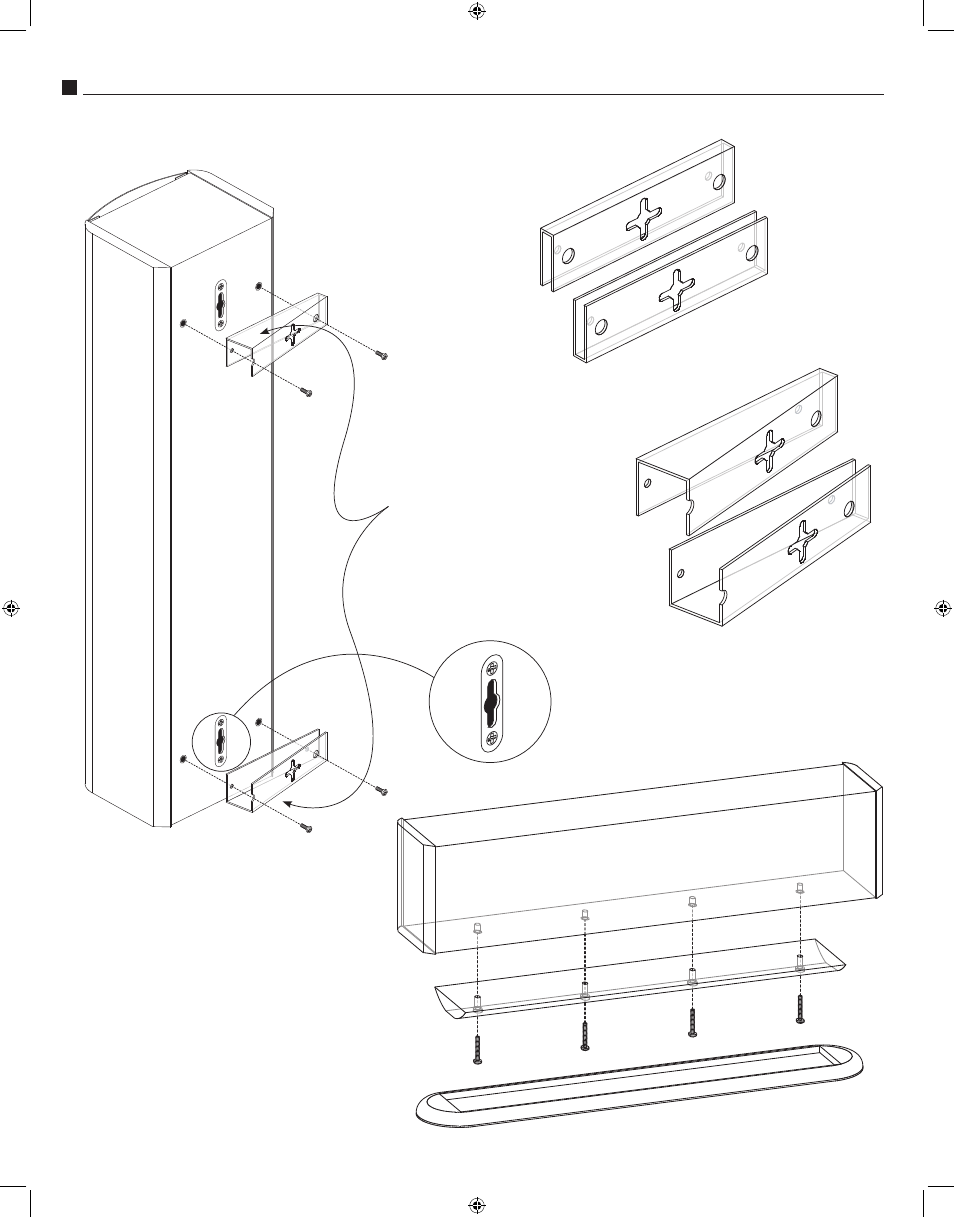

Figure 5
Straight Bracket
Figure 6
Angle Bracket
Figure 7
Center Channel
Rocker Base Installation
Double Keyhole for fl ush
mounting
Mount the brackets to the
speaker with the included
short machine screws
Make sure the closed side
of the brackets are facing
the ends of the speaker
Figure 4
Bracket installation
Assembling the Speakers
FS-3200 Manual.indd 4
10/6/04 11:00:09 AM
