The Radiator II Below Ground HDSLx 8-Slot Repeater Housing is designed to withstand hostile
conditions, improve thermodynamic performance and reliability of the outside plant electronics in
50 percent less manhole space than traditional enclosures. It includes a 30-foot, 100-pair air core
screened, dual armor cable stub.

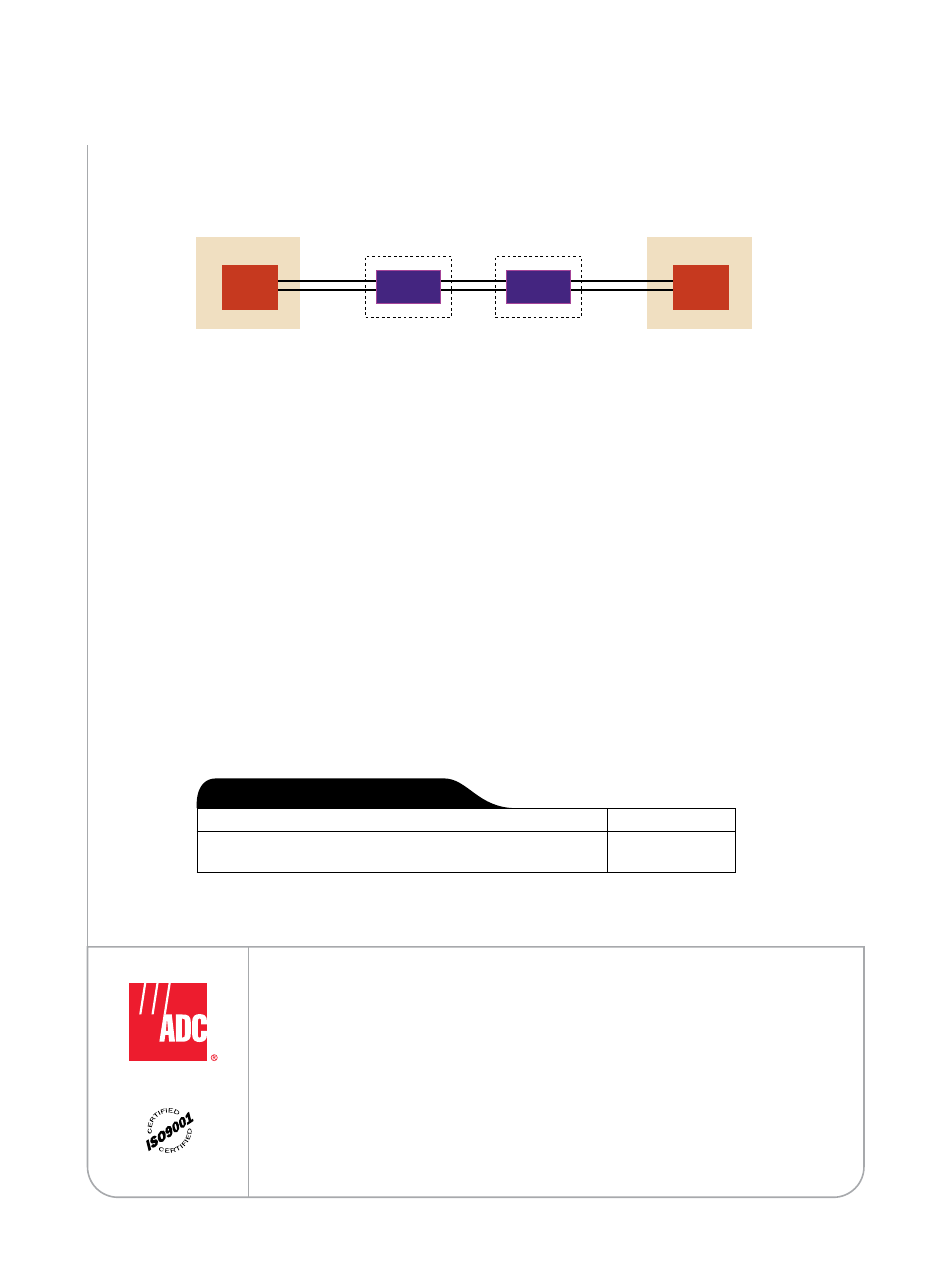

ceNtRAL OFFIce

eLectRONIcS

cUStOMeR pReMISeS

eLectRONIcS

OSp

Repeaters

Repeaters

RADIAtOR

OSp

RADIAtOR

Specifications

Housing Construction, Lid:

Non-corrosive 18-gauge seamless, 316 stainless steel, painted white

Capacity:

Supports 8 single or a maximum of 6 double wide HDSL, HDSL4,
G.SHDSL, T1, ISDN and DDS repeaters

Ambient Temperature Range:

–40˚F to +149˚F (–40˚C to +65˚C)

Relative Humidity:

100% when pressurized

Pressurization:

12 psi maximum – pressure relief valve

Security:

V-band may be secured with a padlock

Dimensions:

Diameter 12.5”, housing and mounting bracket together 14.25” high

Weight (without modules/cable stub): Approximately 28 lbs.
Mounting:

Backboard or underground rack mount

Lightning Protection:

Three-element gas tube

Safety Standards Compliance:

Equipment tested and verified to comply with the following standards:

GR 63-CORE:

Network Equipment-Building System (NEBS) Requirements

GR 487-CORE:

Generic Requirements for Electronic Equipment Cabinets

GR 950-CORE:

Generic Requirements for Optical Network Unit (ONU) Closures

TR-TSY-000056:

Repeater Housings for T1, T1C, T1D, and T1G Carrier Systems

FCC Part 15:

Electrical Safety

Binational Standard:

UL-60950/CSA C22.2 No. 950-95: Safety of Information
Technology Equipment

O r d e r i n g I n f o r m a t i o n

Description

Catalog Number

Radiator II 8-Slot Below Ground HDSLx Repeater Housing
30’ air core stub, pressurized

RAD-BA30-8
