American Bath Factory Single Supreme Carolina Shower User Manual
Water shield installation

WATER SHIELD INSTALLATION
Congratulations on the purchase of your Shower Water Shields, designed to
make your showering experience more enjoyable. Water Shields stop water
from spraying between the curtain and the wall, leaving less to clean up after
your shower is finished.

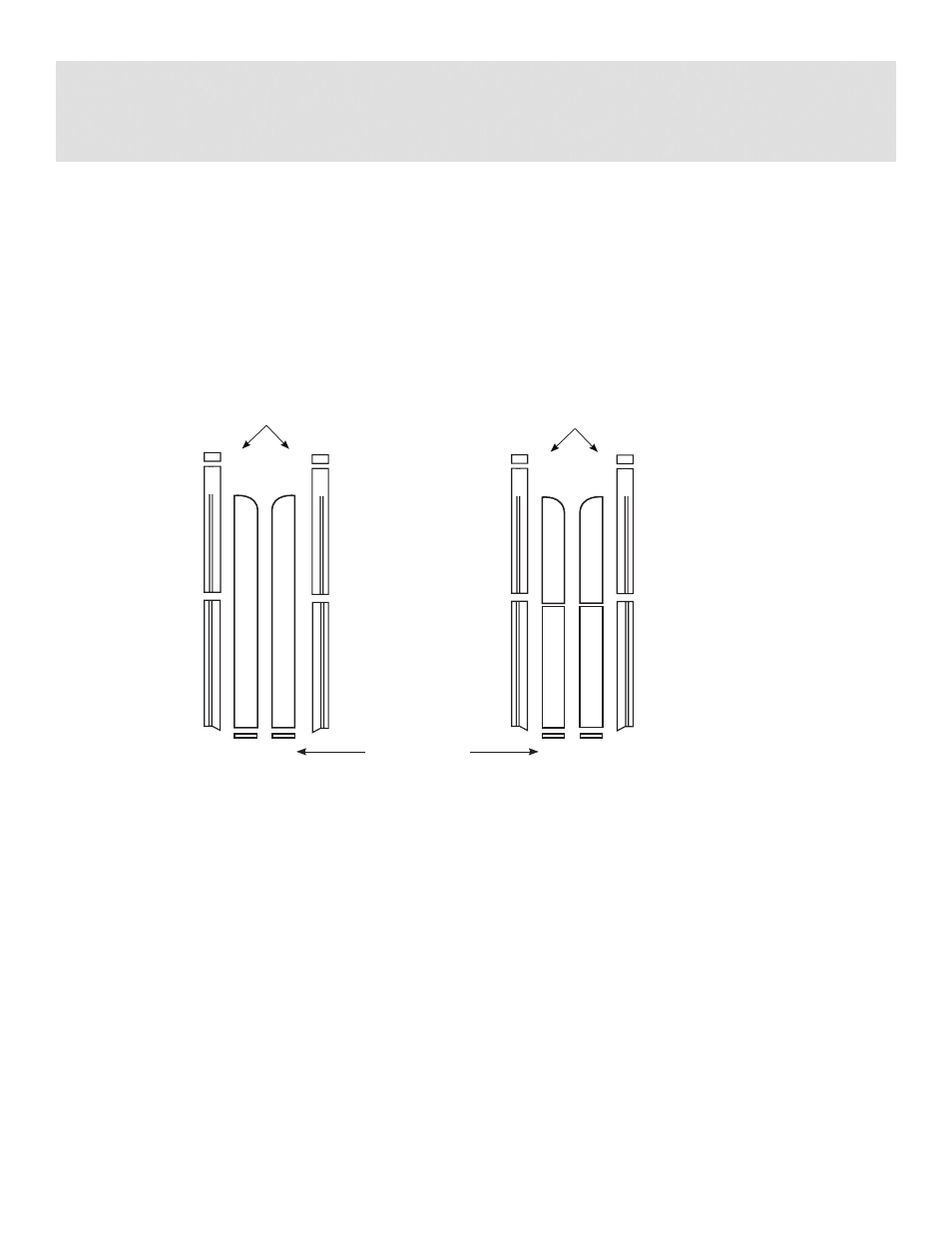

Included parts for
Included parts for 60” shower showers less than 60”
Changing the product code from B to W will direct our production team to switch thresholds without channels,
to thresholds with channels to support the Water Shield glass.
1. After installing your shower pan and walls, install the bottom side stone thresholds included with shower, TRB, TLB, the notch
end is placed at the bottom, where it will rest on the pan threshold. Use silicone as instructed in the shower installation guides.
2. Install top side stone thresholds TRT and TLT.
3. Install left and right bottom channel pieces.
4. Using silicone, place a small bead in the channel (one side at a time).Place glass in the channel. If you have a shower requiring
2 pieces of glass on each side, place bottom section in channel first, then apply a small bead of silicone on top edge of the
glass where the top piece of glass will rest (if applicable). Wipe off excess silicone. Tape to secure while silicone is drying.
Repeat on the other side.
5. Install TLC & TRC cap trim pieces..
5. Let silicone dry completely before grouting the gaps between the glass, and stone threshold pieces.
G_00753 Rev A
Bottom Channel Pieces
cap trim pieces
TLC
TRC
TLT
TRT
TLB
TLC
TRC
TLT
TRT
TLB
TRB
TRB
BCL
BCR
BCL
BCR
cap trim pieces
Glass
Glass
