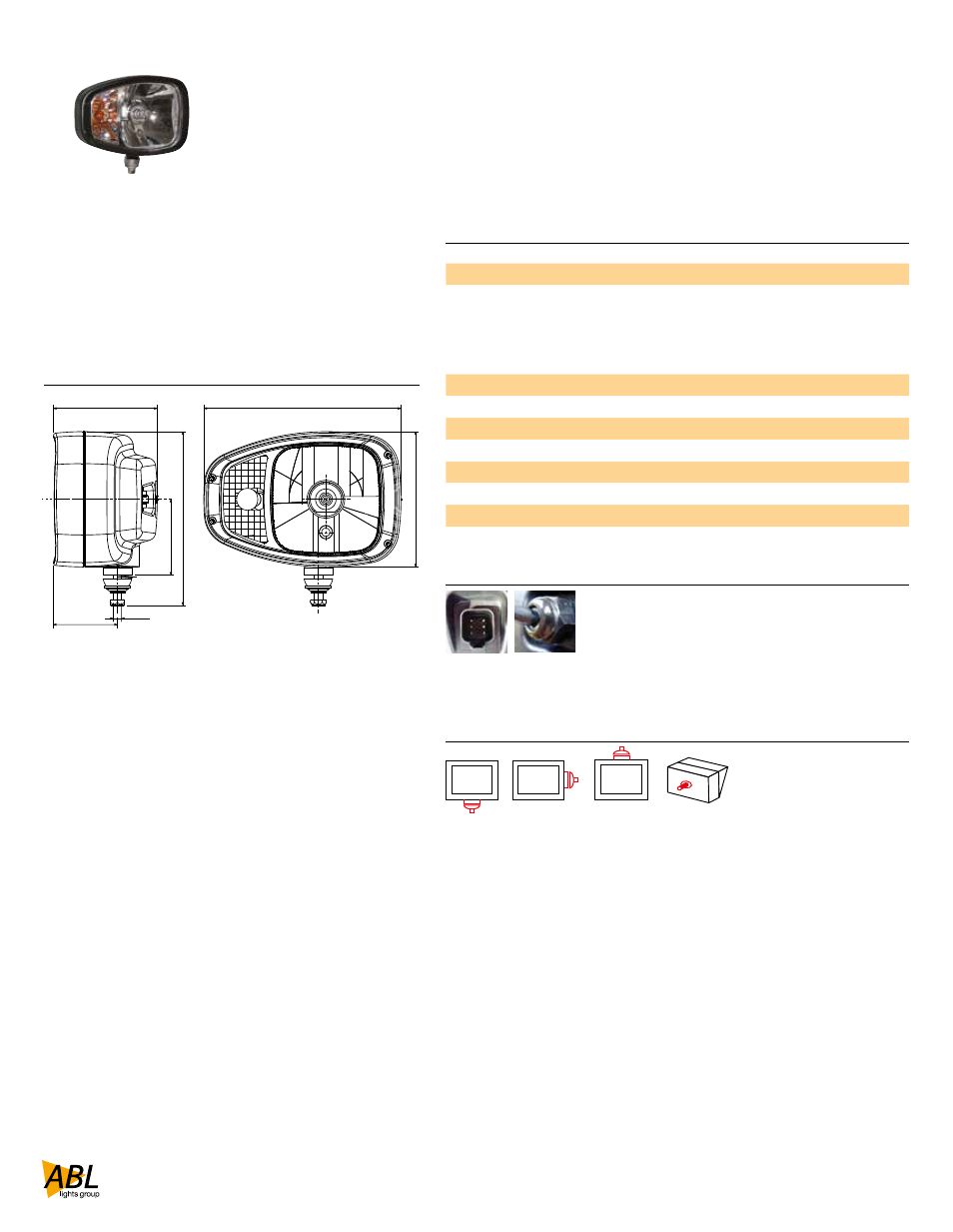

ABL 3800
The ABL 3800 combination drive light is SAE/ECE
approved for on-road and off-road vehicles. Along with
numerous mounting operations, this light incorporates
a moisture-eliminating breather, pilot light, and an optional
side repeater.
Dimensions
240 ± 2 (9.448) 127 ± 2 (5.0)
211 ± 2
(8.307)
92 ± 2
(3.622)
78 ± 2 (3.070)
M10
164 ± 2
(6.456)
Bulb: H4 - PY21 and W5W
Light pattern:
ECE R112 High / Low Beam
ECE R6 Turn Signal and repeater
ECE R7 Pilot Light
SAE FMVSS108
ANSI/ASAE S279.14
Voltage: 12V, 24V
Intensity: 2,92 Amp @ 24V (Low Beam)
Water Tightness: IP 66 - IP 69K
Operating Temp: -40°C to +85°C
Salt Spray: ISO 9227
Housing: black fibre reinforced plastic
Lens: hardened glass lens
Specifications
Connection
Built-in DT
6 ways
Cable
compression seal
PG11
Heavy Duty - Driving Lights
Mounting
Pedestal swivel Side swivel Suspended swivel Rear Swivel
Dimension unit in mm (10 th inch)
Premium lighting solutions www.abllights.com
