Bulb: H4 - P21 and T8
Light pattern:
ECE R20 High / Low Beam
ECE R6 Turn Signal
ECE R7 Pilot Light
ECE R6 optional repeater
Voltage: 12V, 24V
Intensity: 2,92 Amp @ 24V (Low Beam)
Operating Temp: -40°C to +85°C
Salt Spray: ISO 9227
Housing: black fibre reinforced plastic
Lens: glass lens
Specifications
ABL 3005
The ABL 3005 combination drive light is the choice for
a High/low beam headlight with intergrated turn signal and
pilot light. This light is E-approved for right hand and left
hand traffic.

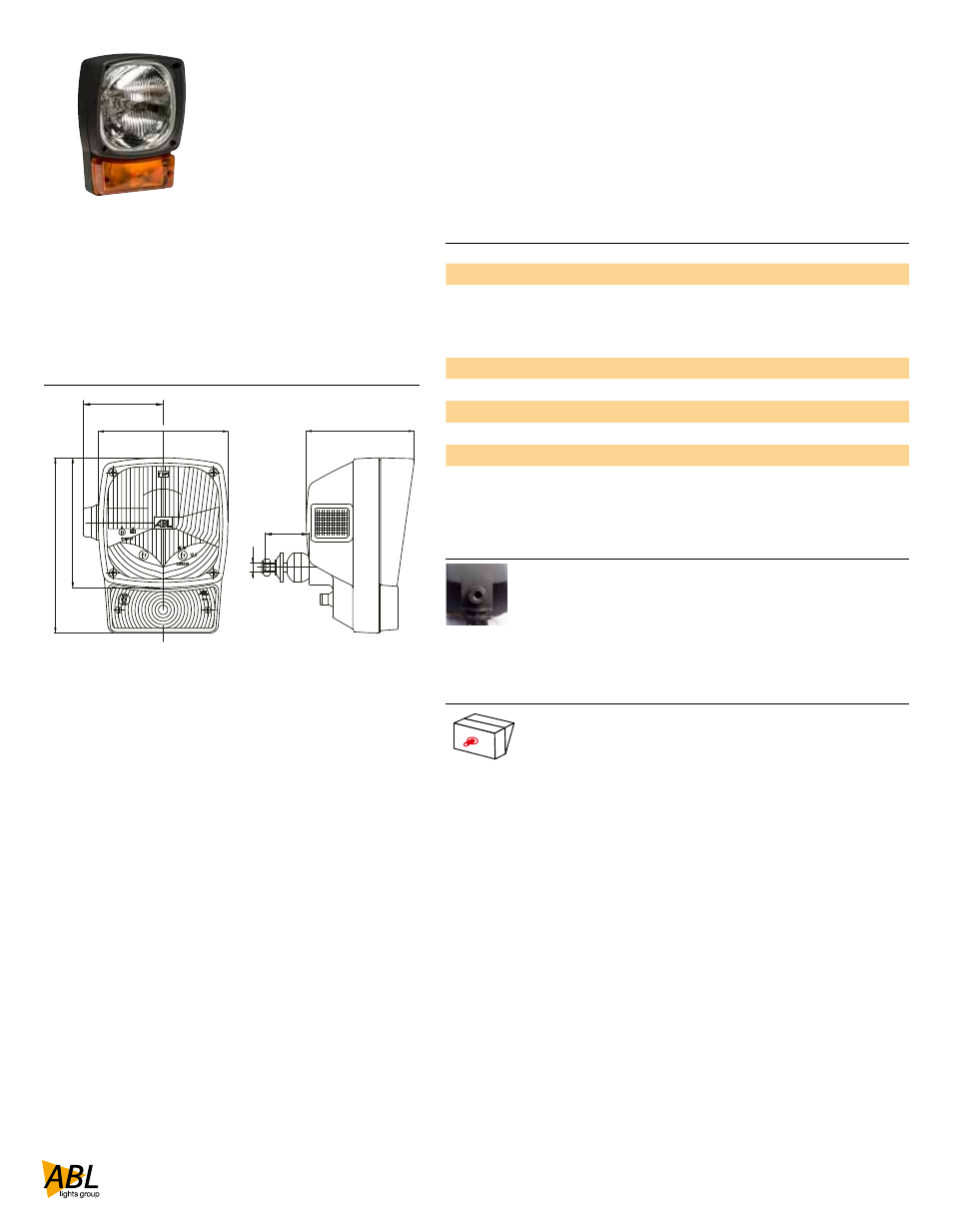

Dimensions
128±2 (5.039)
45±2
(1.771)
M10
208
±2 (8.188)
95±2 (3.740)
154±2 (6.062)
154
±2 (6.062)
Heavy Duty - Driving Lights
Connection
Mounting
Dimension unit in mm (10 th inch)
Grommet
Rear Swivel
