Page 3

connectors to the appropriate headers on your motherboard. You can use

the LED I and LED II connectors as you see fit; as SCSI LED, Message LED,

etc. or any other function supported by your motherboard, expansion cards,

and peripherals.

Connecting the USB Ports
You'll find two 5-pin internal USB connectors (on separate cable sets) attached to
the front USB connectors. Note: If you want to use both front USB connectors

and the 8-in-1 card reader, your motherboard must have at least 3 internal USB

headers.

Here's how to connect the internal USB connector to your motherboard headers:

1. Check the USB pin layout in your motherboard user manual and make sure

it follows this standard pin out:

Pin 1: USB Power - may also be labeled +5V

Pin 2: Negative Signal - may also be labeled P-, D-, USB0-, etc.

Pin 3: Positive Signal - may also be labeled P+, D+, USB0+, etc.

Pin 4: Ground

Pin 5: Ground (sometimes this pin is missing)
Note:

Your motherboard's USB pin layout may differ from this common

standard. If you're unsure of your motherboard's layout, please contact

technical support at your motherboard's manufacturer.

2. Connect the 5-pin USB connector so that the red wire is on Pin 1 (Power,

or +5V). The second header may be reversed (Power pin at the opposite

end of the row) so be careful when you plug in both connectors.

Installing 3.5" Devices
There is a 3.5" drive cage inside the case. It can hold 2 external 3.5" drives

and 2 internal drives.

1. Release the cage by pulling the quick release lever towards the rear of the

case. Slide the cage out and put it on a flat, level surface.

2. Mount your floppy drives or other external devices in the top two drive bays.

3. Mount your hard drive or other internal 3.5" devices into the lower drive

bays with the special screws provided. Don't over-tighten. Over-tightening

the screws will harm the vibration and noise reducing ability of the rubber

grommets.

4. Slide the drive cage back into the case and lock it.

5. For each floppy drive you've installed, find a small 4-pin connector on the

power supply and connect it to the male 4-pin connector on the floppy drive.

6. For each hard drive or other internal 3.5" device you've installed, find a

large 4-pin peripheral connector on the power supply and connect it to the

male 4-pin connector on the 3.5" device.

Installing 5.25" Devices
1. You'll find four metal plates covering the front openings of the 5.25" drive

bays. Each bay includes a screwless drive rail attached to the front of it.

For each drive bay you wish to use, carefully twist the metal plate back and

forth until it breaks off.
Note:

Be careful of the newly exposed metal where the grills were

attached, as these areas are likely to be sharp. Don't break off the plates

covering the drive bays that you're not currently using.

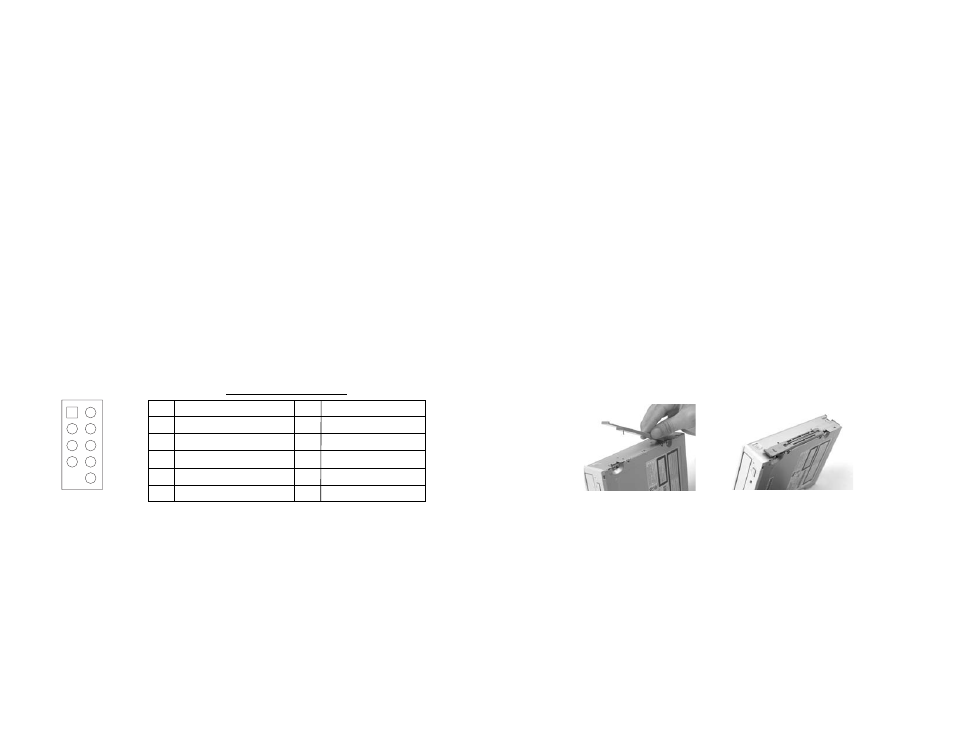

2. Remove the drive rail from the metal plate by gently lifting the release tab

(left end) with one finger and sliding the drive rail to the left. Attach the

drive rail to the right side of the 5.25" device by carefully aligning the drive

rail as illustrated in Figure 1 and pressing along the spring wire from back

to front to seat it as in Figure 2. Make sure the release tab is facing

towards the front plate.

3. On the drive cage, find the black Locking Slider. Open this slider by

squeezing it and sliding it towards the front of the case.

4. Slide the device into the drive bay until you hear a click.

5. Lock the drive into position by sliding the Locking Slider towards the rear of

the case.

6. Connect a large 4-pin peripheral connector from the power supply to the

male 4-pin connector on each device.

7. To install more drives, simply repeat the same procedure.

Attaching the screwless Drive Rails

Data Cable Connection
After you have connected the devices to the power supply, you need to connect

the data cables between the devices and the motherboard. For best data transfer

and cooling performance Antec recommends using a premium rounded data

cable like Antec Cobra Cables.
Useful tip:

The cables included with your devices should have a red strip on

side indicating pin number 1. If you use these cables make sure that the red

strip is on pin 1, usually toward the power connector.

Installing the Fan
We've included one low-speed 120mm exhaust fan with this case. This (rear)

fan is mounted with a vibration-absorbing NoiseKiller™ kit, which will allow your

computer to run extremely quietly. In the front of the case, you'll find a mount

for an optional 80mm intake fan. If you decide to add an intake fan, we

Figure 1

Figure 2

Pin Signal names

Pin

Signal names

USB Power 1

USB Power 2

Negative Signal 1

Negative Signal 2

Positive Signal 1

Positive Signal 2

Ground 1

Ground 2

Key (No Connection) 10

Empty Pin

Motherboard Pin Layout
