23
ARRI | ARRIFLEX D-21 / D-21 HD

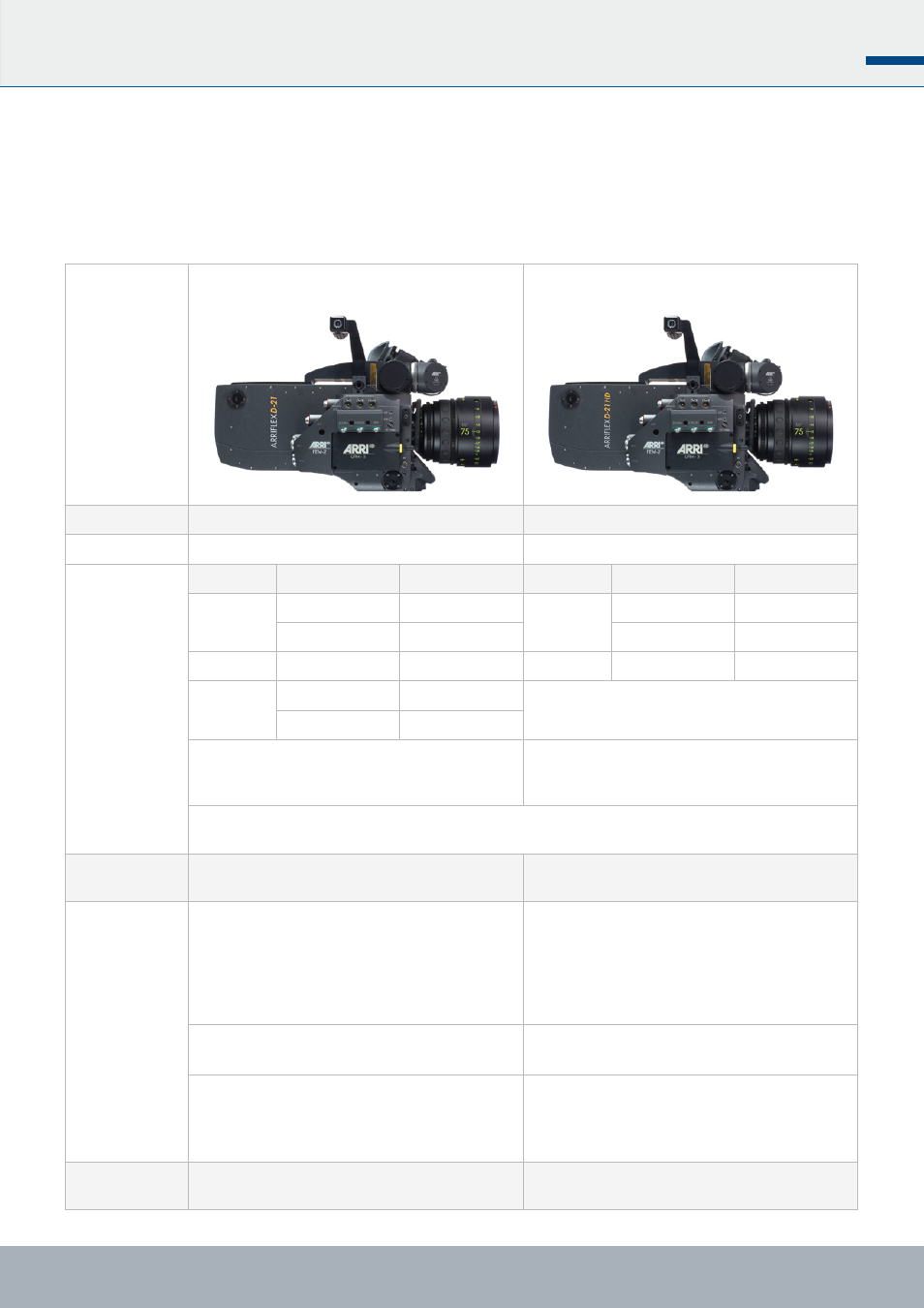

Divergent Technical Data
ARRIFLEX D-21 ARRIFLEX D-21 HD
Camera type 35 format digital film style camera with an optical viewfinder 35 format film style HD camera with an optical viewfinder
HD-SDI connections 2x dual link HD-SDI out 1x dual link HD-SDI out
Frame rate
Mode Setting Camera fps Mode Setting Camera fps
HD Mode
HD422 (16:9) 1 - 60
HD Mode
HD422 (16:9) 1 - 30
HD444 (16:9) 1 - 30 HD444 (16:9) 1 - 30
Mscope TM Mscope TM HD422 (4:3) 1 - 25 Mscope TM Mscope TM HD422 (4:3) 1 - 25
Data Mode
ARRIRAW (16:9) 1 - 30
ARRIRAW (4:3) 1 - 25
Frame rates other than the standard HD video frame rates of 23.976 PsF,
24 PsF, 25 PsF, 29.97 PsF, 30 PsF, 48 PsF, 50 PsF, 59.94 PsF and 60 PsF
can be achieved with a recorder that can interpret the Variframe Flag.
Frame rates other than the standard HD video frame rates of 23.976 PsF,
24 PsF, 25 PsF, 29.97 PsF and 30 PsF can be achieved with a recorder
that can interpret the Variframe Flag.
All frame rates are crystal controlled and can be set with 0.001 fps precision.
Exposure compensated speed ramps are supported by the electronic mirror shutter.
Aperture
23.760 x 13.365 mm/0.9354” x 0.5262” in HD Mode
23.760 x 17.820 mm/0.9354” x 0.7016” max. in Data Mode & Mscope TM
23.760 x 13.365 mm/0.9354” x 0.5262” in HD Mode
23.760 x 17.820 mm/0.9354” x 0.7016” in Mscope TM
Signal output
HD Mode – HD-SDI (SMPTE 292M):
- 1920 x 1080 4:2:2 YCbCr 10 bit @ 23.976, 24, 25, 29.97, 30 PsF
HD Mode – dual link HD-SDI (SMPTE 372M):
- 1920 x 1080 4:4:4 RGB 10 bit @ 23.976, 24, 25, 29.97, 30 PsF
- 1920 x 1080 4:2:2 YCbCr 10 bit @ 48, 50, 59.94, 60PsF
HD Mode – HD-SDI (SMPTE 292M):
- 1920 x 1080 4:2:2 YCbCr 10 bit @ 23.976, 24, 25, 29.97, 30 PsF
HD Mode – Dual link HD-SDI (SMPTE 372M):*
- 1920 x 1080 4:4:4 RGB 10 bit @ 23.976, 24, 25, 29.97, 30 PsF
* available with software packet 1.16
Mscope TM – dual link HD-SDI (SMPTE 372M):
- 1920 x 1080 4:2:2 YCbCr 10 bit @ 23.976, 24, 25 PsF
Mscope TM – dual link HD-SDI (SMPTE 372M):
- 1920 x 1080 4:2:2 YCbCr 10 bit @ 23.976, 24, 25 PsF
Data Mode – ARRIRAW T-Link (ARRIRAW transmission protocol
mapped into RGBA dual link HD-SDI stream according to SMPTE 372M):
- 2880 x 2160 RAW 12 bit Bayer data @ 23.976p, 24p, 25p
- 2880 x 1620 RAW 12 bit Bayer data @ 29.97p, 30p
Weight
(without lens)
Body only: 8.6 kg/19.0 lbs
Body and viewfinder: 10.9 kg/24.0 lbs
Body only: 8.5 kg/18.8 lbs
Body and viewfinder: 10.8 kg/23.8 lbs
