ELiTE
™
ProPanel
™
Installation Guide
Z-Clips

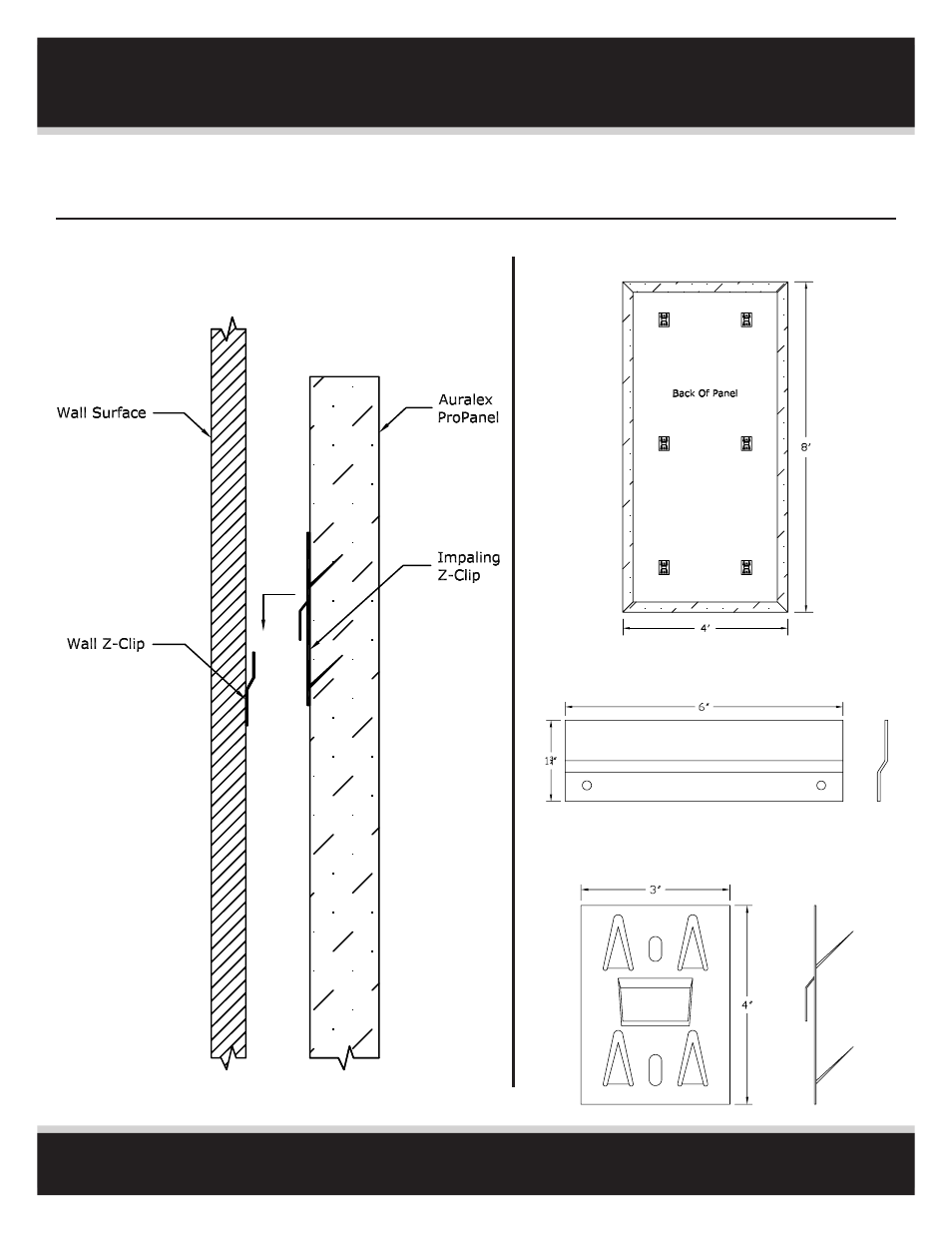

Figure 3.1
Z-Clip installation
side view
Figure 3.4
Impaling Z-Clip detail
Figure 3.3
Wall Z-Clip detail
Figure 3.2
Z-Clip placement on 4’x8’ panel
