Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Attach each blade to a blade iron using three blade washers and
three blade assembly screws.
6-2. Remove the blade mounting screws and rubber shipping bumpers
from the motor. Note: Some blade mounting screws are installed
in the motor to secure shipping blocks.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade
Mounting
Screw

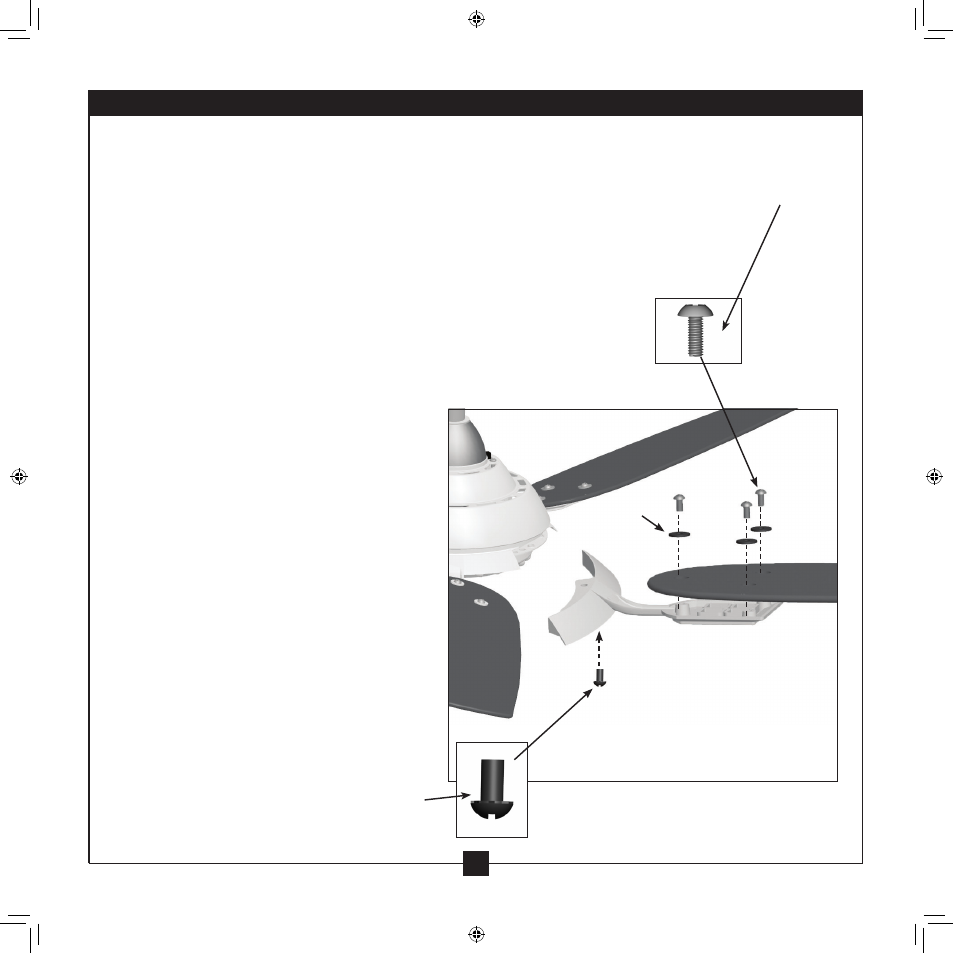

Steps 6-1 – 6-3
Blade Washer
Blade Assembly
Screw
6 • Assembling the Blades
