6 • Assembling the Blades
Steps 6-2 – 6-4
Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).

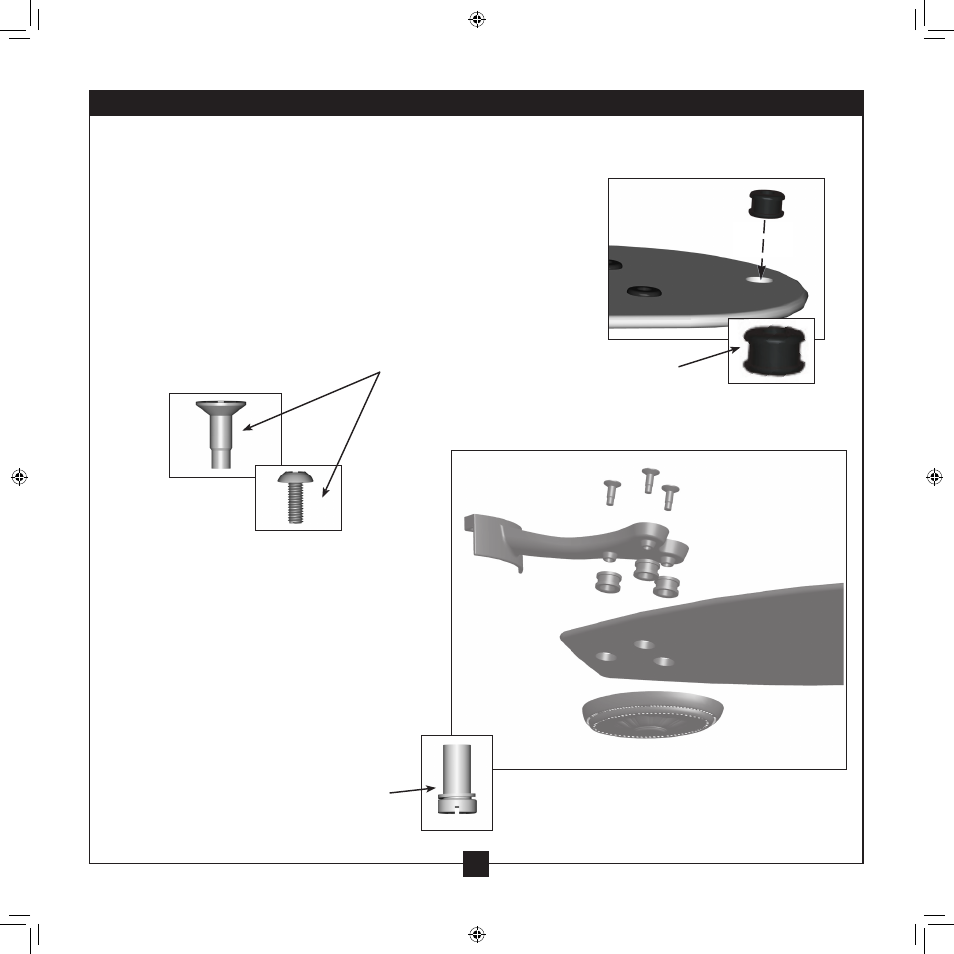

6-1. Install the grommets into the blades by hand.
6-2. Place each blade between a blade iron and medallion. Install three
blade screws to attach the medallion to the blade iron. Repeat for
all blades.
6-3. For each blade, insert one blade mounting screw through the
blade iron, and attach lightly to the fan. Insert the second blade
mounting screw, then securely tighten both mounting screws.
Blade Assembly
Screws
Use with grommet
Use without grommet
Grommet
Step 6-1 (Detail)
Blade
Mounting
Screw
6 • Assembling the Blades
Note: The blades on this fan have been treated
with Hunter’s Dust Armor protection, making
the blades less likely to attract dust and dirt.
Use a dry or slightly damp lint free cloth to
clean the blades. Do not use a furniture polish
or any other cleaners that leave any residue, as
they will damage the protective Dust Armor
on the blades.
