14
42470-01 • 10/07/11 • Hunter Fan Company

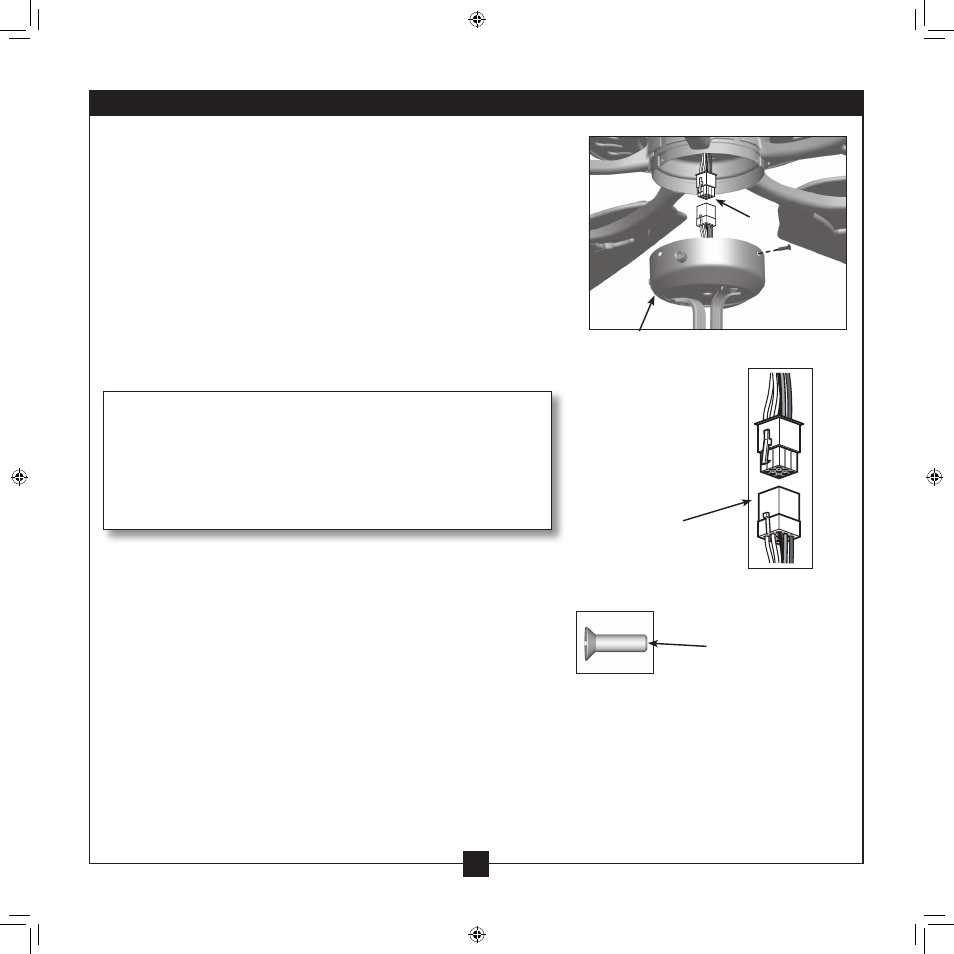

Lower Switch
Housing
Housing
Assembly Screw
Plug
Connector
Detail
8-6. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing assembly.
Note: Both plug connectors are polarized and will only fit together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
8-7. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower switch
housings. Attach the lower switch housing to the upper switch
housing with three housing assembly screws.
8 • Completing Your Installation With a Bowl Light Fixture (Continued)
Steps 8-6 – 8-7
Plug
Connector
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts its light output.
Exceeding the wattage limit marked on the MAX wattage
sticker affixed to the light socket(s) may result in fire
hazard or improper operation. If lights do not appear to be
operating properly, see the troubleshooting section.
