Hunter 25820 52 Augusta - Manual (Page 12)

12
42434-01 • 06/03/10 • Hunter Fan Company
WARNING: Use only the light fixture supplied with this fan model .
7-1 . To attach the lower switch housing assembly to the fan, partially
install two housing assembly screws into the upper switch
housing .
7-2 . Connect the upper plug connector from the motor to the lower
plug connector in the lower switch housing assembly .
Note: Both plug connectors are polarized and will only fit together
one way . Make sure the connectors are properly aligned before
connecting them . Incorrect connection could cause improper
operation and damage to the product .
7-3 . Align the notches in the sides of the lower switch housing with
the screws on the upper switch housing . Twist the lower switch
housing assembly clockwise to lock the screws in place .
7-4 . Install the third housing assembly screw .
7-5 . Tighten all three screws securely .

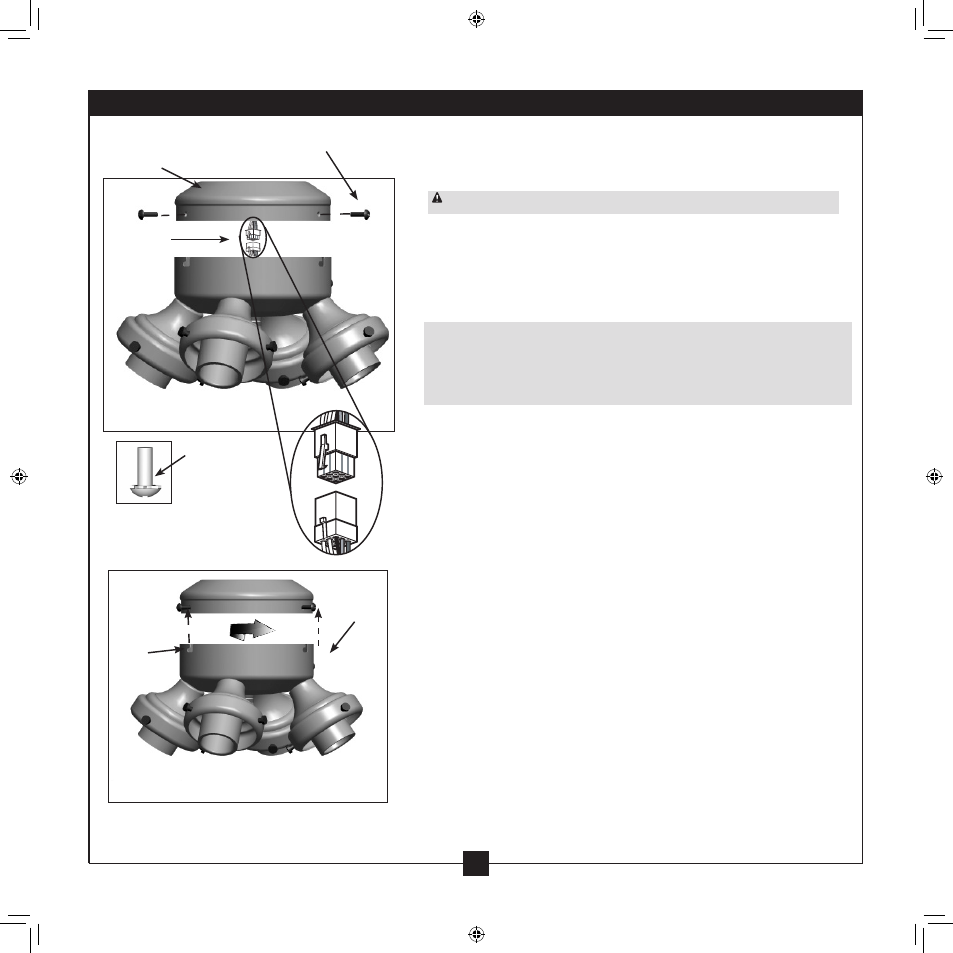

Steps 7-1 – 7-2
Housing
Assembly
Screw
Upper Switch
Housing
Housing
Assembly Screw
Lower Switch
Housing
Plug
Connector
Notch
Steps 7-3 - 7-5
7 • Completing Your Installation With a Multi Staked Light Fixture
