7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)

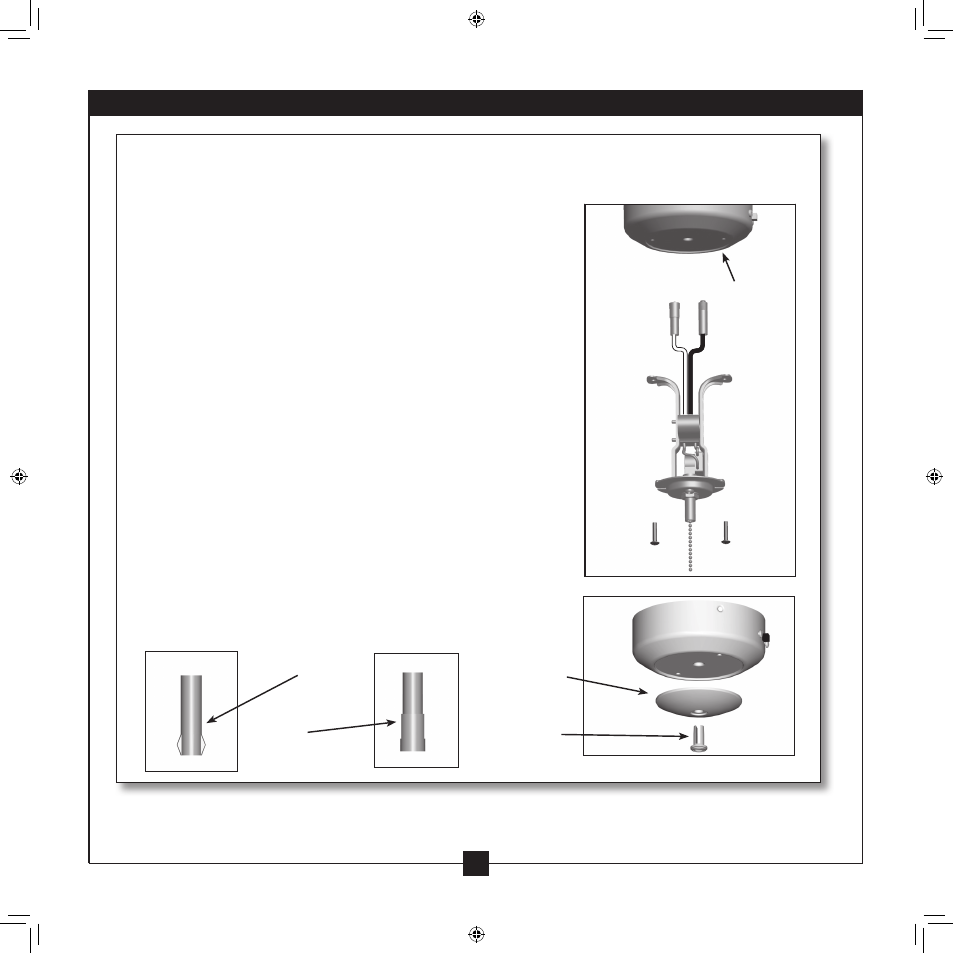

Uninstalling the Light Fixture
7-14. To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the black wire with a white stripe.
7-15. Disconnect the plug connectors between the two white wires.
7-16. Remove the two screws attaching the light kit to the lower
switch housing.
7-17. Remove the light fixture from the lower switch housing, pulling
disconnected wires through the hole in the center of the lower
switch housing.
Note: When removing the wires, pull the thin plug connector
(male) through first, and then pull the other plug connector
(female) through the hole.
7-18. Install the dummy terminals (included in the sack parts) on the
two disconnected wires in the lower switch housing.
7-19. Install the switch housing cap and plug button to the lower
switch housing.
7-20. Once you have uninstalled the light fixture, continue
with step 7-6.
Male Dummy
Terminal
Female Dummy
Terminal
Step 7-19
Cap
Plug Button
Step 7-16
Lower Switch
Housing
