6 • assembling the blades – Hunter 21215 61 Fellini User Manual
Page 10

10
42501-01 • 01/19/09 • Hunter Fan Company
6 • Assembling the Blades

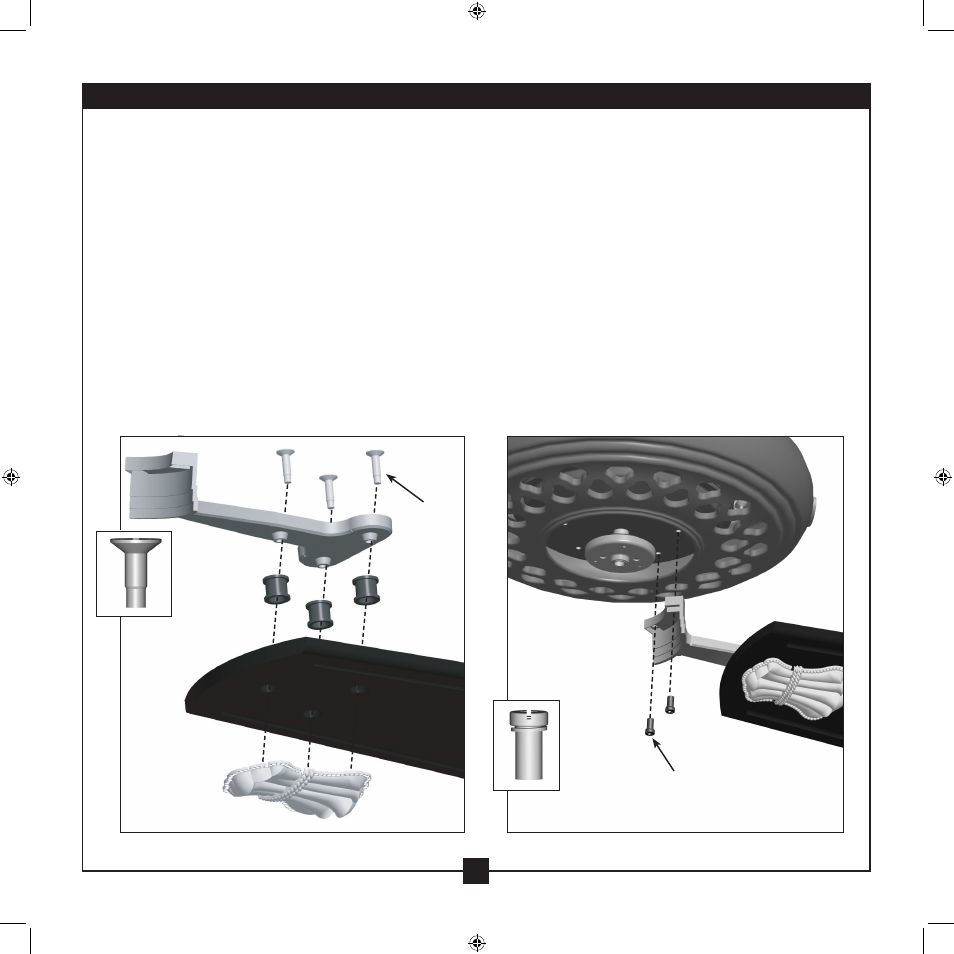

Hunter fans use several styles of fan blade irons (brackets that hold the
blade to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets,
insert them by hand into the holes on the blades.
6-2. Install three blade assembly screws through the the blade iron
and blade, into the medallion. If you used grommets, the blades
may appear slightly loose after screws are tightened. This is
normal.
6-3. Remove the blade armature screws and rubber shipping bumpers
from the motor. Save the screws for the following step and
discard the shipping bumpers.
6-4. For each blade, insert one blade armature screw through the
blade iron, and attach loosely to the fan. Insert the second blade
armature screw, then securely tighten both armature screws.
Blade
Armature
Screw
Step 6-4
Steps 6-1 – 6-2
Blade
Assembly
Screws
