ADJUSTABLE BRACKET
FOR UPPER BAR (AB-874)
ADJUSTABLE TIE-DOWN BRACKET,
HOOK & STRAP ASSEMBLY (TDB-2)

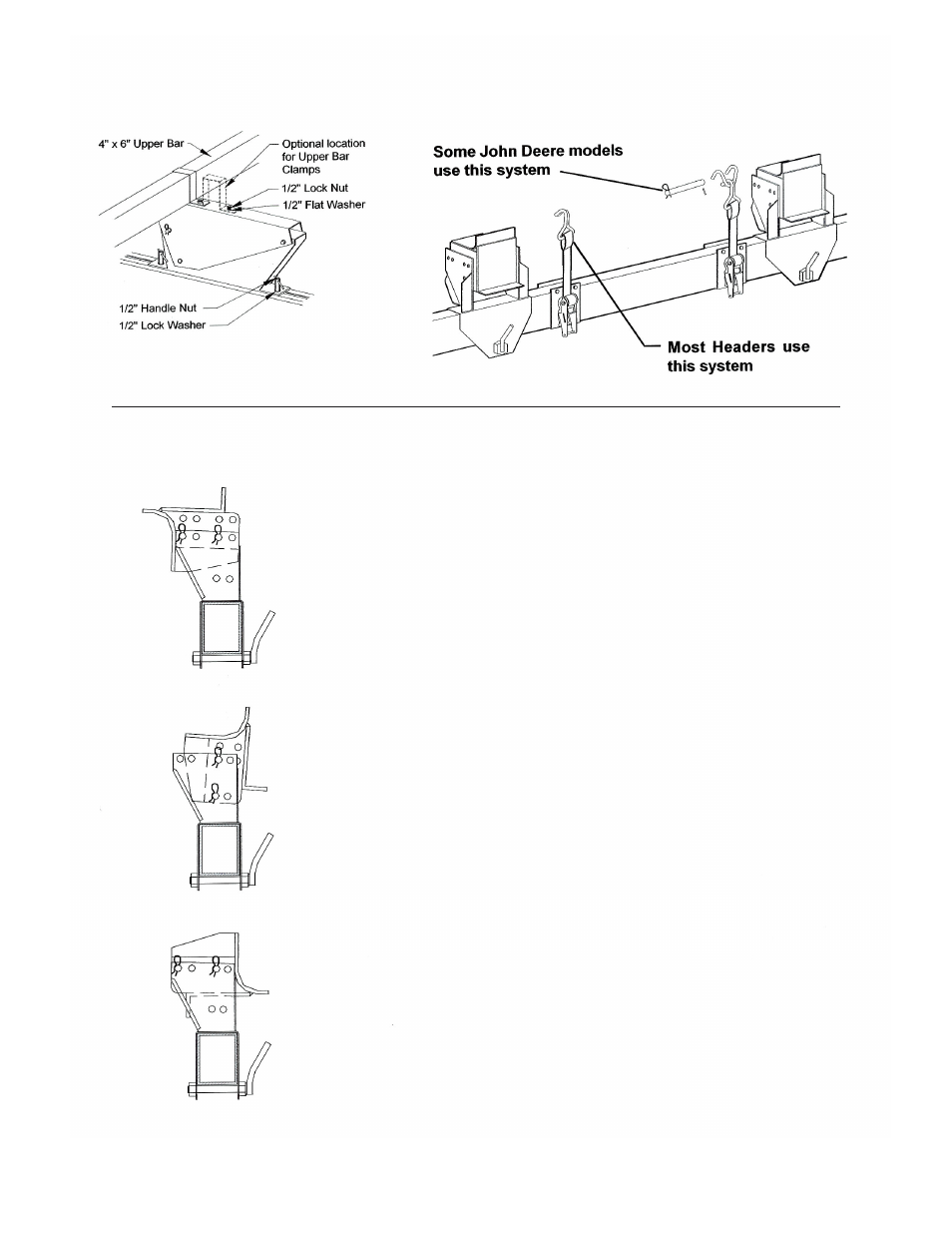

POSSIBLE HEADER MOUNT POSITIONS FOR FRAME,
STAND LEG AND RECTANGULAR FRAME HEADERS
Possible Header Mount positions for Rectangular Frame
Headers. The Header Mount can be adjusted up, down,
forward or backwards, depending upon the type of header
being transported.
Possible Header Mount positions for Round Frame Headers.
The Header Mount can be adjusted up, down, forward or
backwards, depending upon the type of header being
transported.
Possible Header Mount positions for Stand Leg Headers.
The Header Mount can be adjusted up, down, forward or
backwards, depending upon the type of header being
transported.
