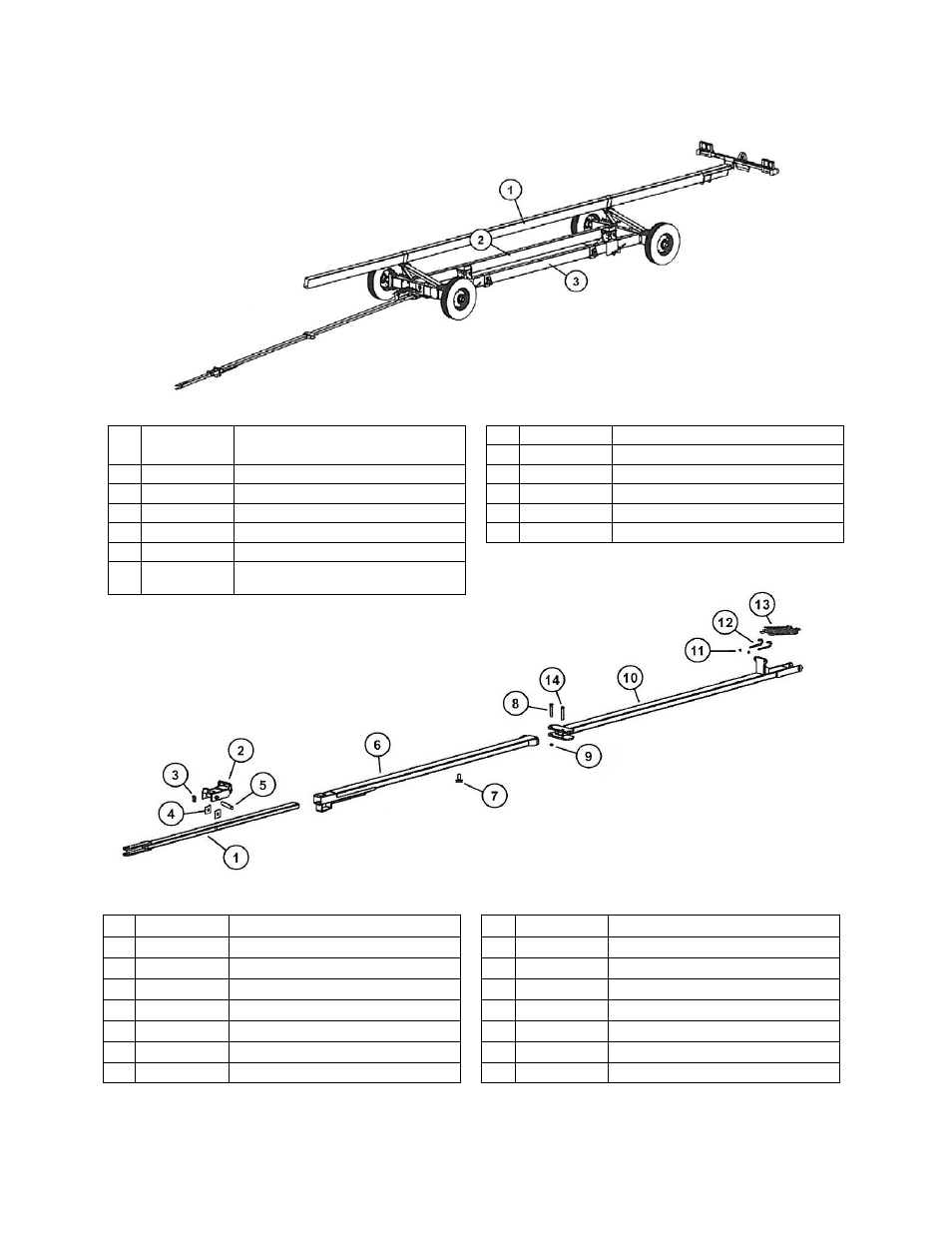

PARTS LIST
Main Frame and Upper Bar
Tongue Assembly
# Part
#
Description
#
Part #
Description
1
UB-24H
48' L Upper Bar (two 24' L bars
with splice plate)
4
586G8B
5/8" x 6" Grade 8 Bolt
5
58-FW
5/8" Flat Washer
1
SP-24H
Splice Plate for 24' Upper Bar
6
58LN
5/8" Lock Nut
1
UB-42H
42' L Upper Bar
7
12312B
1/2" x 3 1/2" Bolt for Splice Plate
1
UB-38H
38' L Upper Bar
8
12-W
1/2" Regular Washer
1
UB-32H
32' L Upper Bar
9
12-LN
1/2" Lock Nut
2
SLB-1082
4" x 6" Small Lower Bar (HT-1082)
3
LLB-1082
4" x 8" Large Lower Bar (HT-
1082)
# Part
#
Description
#
Part #
Description
1
IT-HT10
Inner Tongue (42” L)
8
344B
3/4" x 4 Bolt
1
IT-HT10L
Inner Tongue (65” L)
9
34N
3/4" Nut
2
TL-615NS
Tongue Latch
10 OT-HT10-R
Outer Tongue (rear)
3
SS-615NS
Small Spring in Latch
11 12-N
1/2" Regular Nut
4
SB-212
Spacer Blocks
12 124-JB
1/2" x 4" J-Bolt
5
LS-610
Latch Pivot Shaft, 1" dia. x 5 3/4"
13 TS-615H
Large Tongue Spring
6
OT-HT10-F
Outer Tongue (front)
14 34PSH
3/4" Pin with Spring Handle
7
78214-BS
7/8" x 2 1/4" Bolt with Spacer
