J&M 525SD User Manual
Page 9
9
sideboard corner
between sideboard
corner and backing
plate of top of hole of
Bolt sideboard
N O T E
4
3
2
1
5
7
8
6
12
10
9
11
3
4
10
12
14

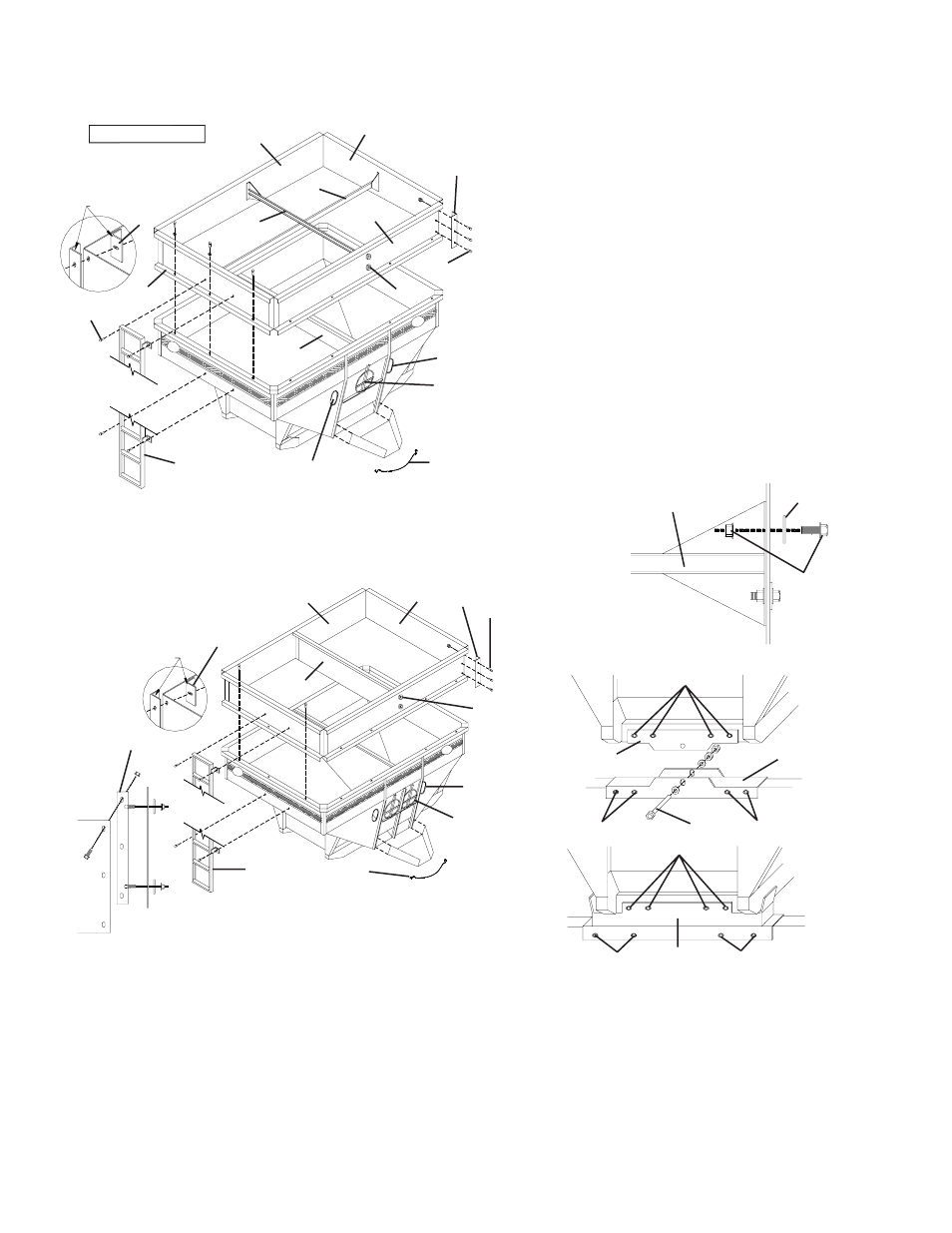

GRAVITY BOX PARTS LIST
#
Part #
Description
Qty
1
LL-7
Ladder
1
2
C-24
Corner for 24" Sideboard
4
3
S-2414
Sideboard, 24" x 14'
2
4
E-2479
Endboard, 24" x 9'
2
5
ICB-4
Inside Corner Bracket
4
6
CB-500
Center Sides Brace
1
6
DB-249
Divider Board 24" x 9'
1
7
RP-500
Center Box Brace (not used
on Divider Boxes)
1
7
DBB-24
Divider Board Bracket
2
8
EB-500
Center End Brace (not used
on Divider Boxes)
1
9
TF-31
Chute Fastener
1
10
IWK-1
Inspection Window Kit
2
11
CWA-250
Complete Wheel Assembly
1
12
381-HBN-F
3/8" x 1" Flange Bolt/Nut
62
13
381-HBN
3/8" x 1" Bolt w/Nut
2
14
12FLW
Large Flat Washer
8
#
Part #
Description
Qty
1
78812-BNW
7/8" x 8 1/2" Bolt w/Nut, Washers
1
2
URB-525
Upper Rocking Bolster
1
3
LRB-525
Lower Rocking Bolster
1
4
12512-HBN
1/2" x 5 1/2" Bolt w/Nut, Washers
16
5
RCM-525
Rear Channel Mount
1
ROCKING BOLSTER ASSEMBLY
FRONT
VIEW
3
1
2
4
4
4
5
4
4
REAR
VIEW
4
12
14
6/8
SIDEBOARD
BRACE
INSTALLATION
GRAVITY BOX PARTS
GRAVITY BOX PARTS
(DIVIDER BOX)
plate of top of hole of
corner and backing
between sideboard
sideboard corner
Bolt sideboard
N O T E
11
4
2
3
5
6
7
1
9
10
8
13
