MODELS TB-3500H and TB-6000H Header Transports
Specifications

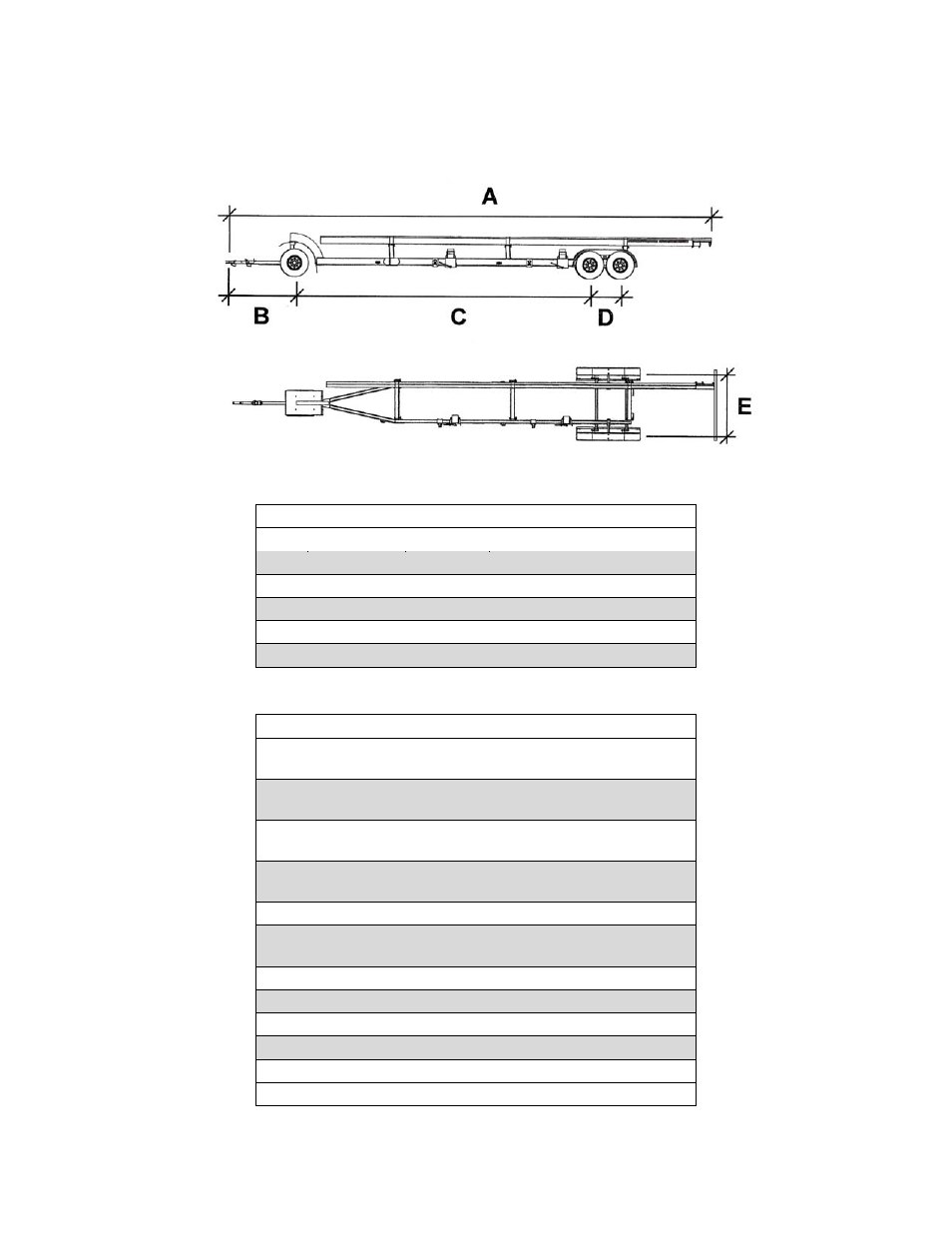

DIMENSIONS (by Upper Bar Length)
32’ 38’ 42’ 48’
A 41’-0” 47’-0” 52’-6” 58’-6”
B 6’-0” 6’-0” 6’-0” 6’-0”
C 26’-0” 26’-0” 26’-0” 30’-0”
D 2’-10” 2’-10” 2’-10” 2’’-10”
E
6’-0” 6’-0” 6’-0” 6’-0”
SPECIFICATIONS
Capacity (Net) 8,750 lbs (TB-3500H)
15,700 lbs (TB-6000H)
Weight (approx.) 3,260 lbs (TB-3500H)
3,500 lbs (TB-6000H)
Wheels 15” x 6” (TB-3500H)
16” x 6” (TB-6000H)
Tires 225/75R15D (TB-3500H)
235/85R16D (TB-6000H)
Hubs 6 bolt
Spindles Two - 2-1/4” dia. (front) and
Four - 2-1/2” dia. (rear)
Main Frame 4” x 8” x 3/16” steel tubing
Steel Upper Bar 4” x 8” x 3/16” steel tubing
Upper Bar Lengths 32’, 38’, 42’ or 48’
Adj. Header Mounts Standard
Tie Down Straps Standard
Rear Electric Brakes Standard on Both Rear Axles
