J&M 875-18 - Manual (Page 21)

21

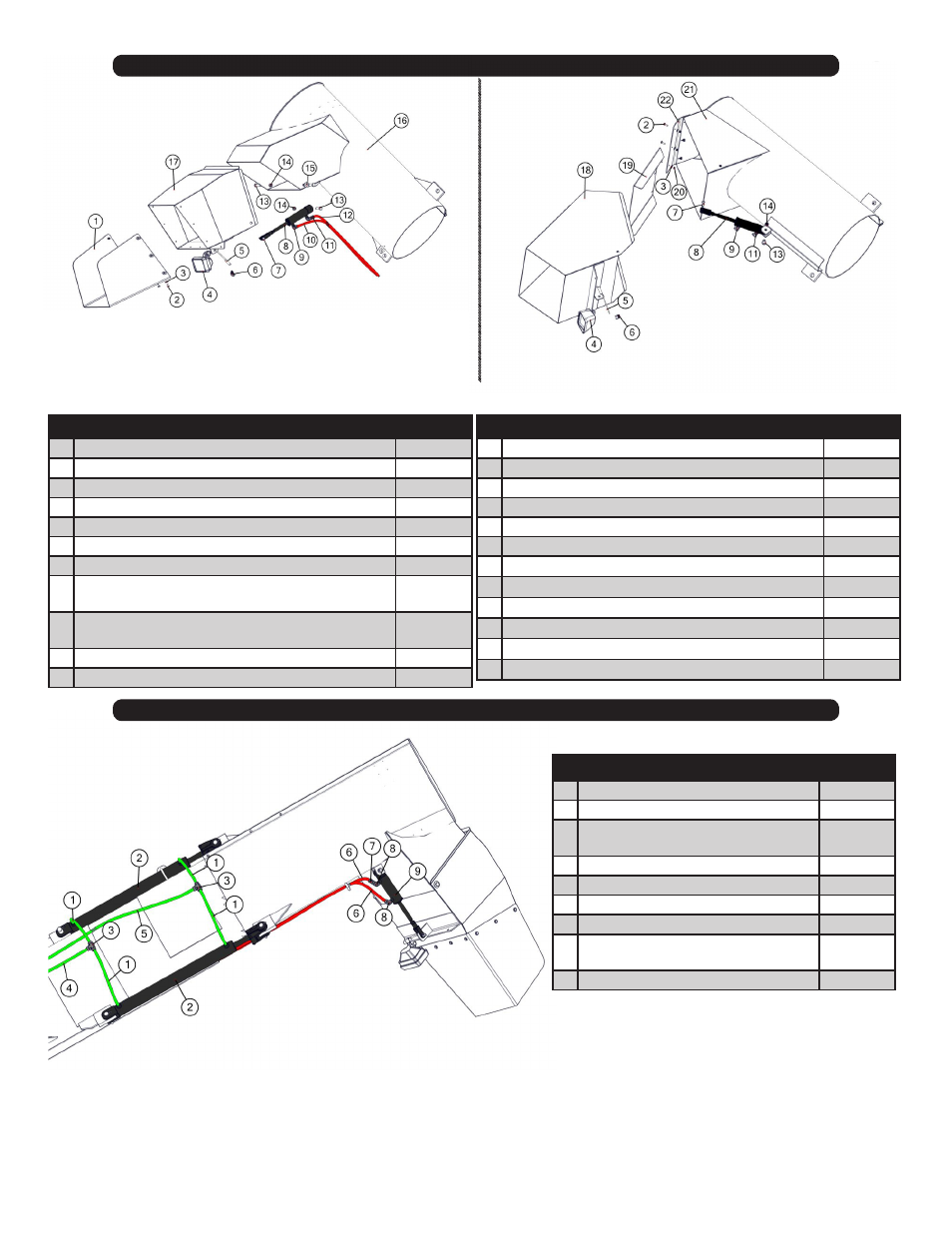

Hydraulic Flow Control Spout For Sliders
# Description Part. No.
1 18" Rubber Tip Spout JM0018591
2 1/4"-20 X 1/2" Gr5 Z Hex Bolt JM0001481
3 1/4" USS Flat Washer JM0003090
4 Field Light Assembly JM0001881
5 Mercury Switch JM0017896
6 3/8" Wire Loom JM0020450
7 1/2” x 1-3/4” Pin JM0018264
8 1-3/4" x 4" Hydraulic Cylinder with Rod Clevis and
Butt Tab
JM0018564
9 1/4" male NPT X 1/4" female NPT rigid; 90 degree
elbow
JM0020115
10 Hydraulic Hose 1/4” x 370” JM0024908
11 1/4" male NPT swivel with .032 orifice JM0020113
Side Shooter Slider Flow Control Spout Regular Slider Flow Control Spout
# Description Part. No.
12 Hydraulic Hose 1/4” x 370” JM0024908
13 1/2"-13 x 2-1/4" Gr5 Z Hex Bolt JM0016677
14 1/2"-13 Gr5 Z Centerlock Hex Nut JM0001511
15 1/2" USS Flat Washer JM0003082
16 18" Side Shooter Slider Sock JM0017867
17 18" Side Shooter Tip Spout JM0017868
18 18" Regular Slider Tip Spout JM0000104
19 Baffle Plate for 18" Slider JM0000144
20 1/4"-20 Gr5 Z Centerlock Hex Nut JM0001505
21 18" Regular Slider Sock JM0000141
22 Hinge for 18" Slider JM0000143
23 Seal Kit for Hydraulic Cylinder JM0024892
# Description Part. No.
1 Hydraulic Hose 1/2” x 16” JM0024923
2 2” x 24” Stroke Hydraulic Cylinder JM0018210
3 3/8” male NPT x 1/2” female NPT x 1/2”
female NPT; Street T
JM0018266
4 Hydraulic Hose 1/2” x 63” JM0024922
5 Hydraulic Hose 1/2” x 105” JM0024924
6 Hydraulic Hose 1/4” x 370” JM0024908
7 1/4” male NPT swivel with .032 orifice JM0020113
8 1/4” male NPT X 1/4” female NPT rigid;
90 degree elbow
JM0020115
9 1-3/4” x 4” Hydraulic Cylinder JM0018564
Hydraulic Slider Assembly
