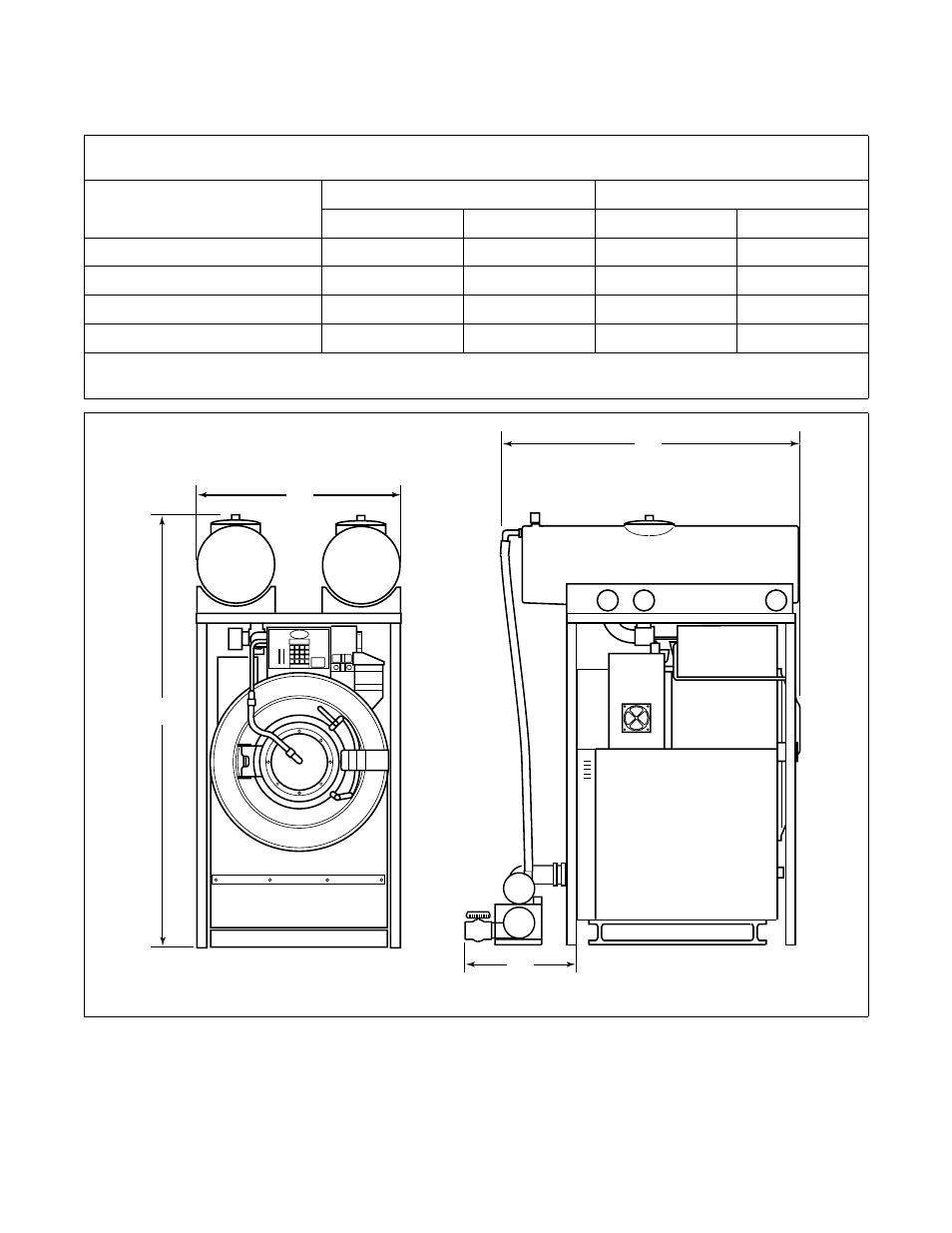

Dimensional Clearance
UWPV Pocket Hardmount with Water Saving System
Machine Dimensions*
Dimensions
60
100
in.
mm
in.
mm
A
4-7/16
1052.5
47-1/16
1195.4
B
91
2311
95-5/8
2428.9
C
61-3/4
1568
73-1/4
1861
D
15-3/4
400
15-3/4
400
* Allow a minimum of 24 inches (610 mm) at the rear and 18 inches (460 mm) at the sides for maintenance, inspection and
adjustment. Allow at least 18 inches (460 mm) between machines in multiple installations.
Q020I
Q020I
B
A
C
D
