Over-the Side Immersion Heaters
E5
10 1/4"
7"
9 11/16"
28" 19 1/2"
12 1/4" Approx.
9 "
9 11/16"
19 1/2" 30 1/2"

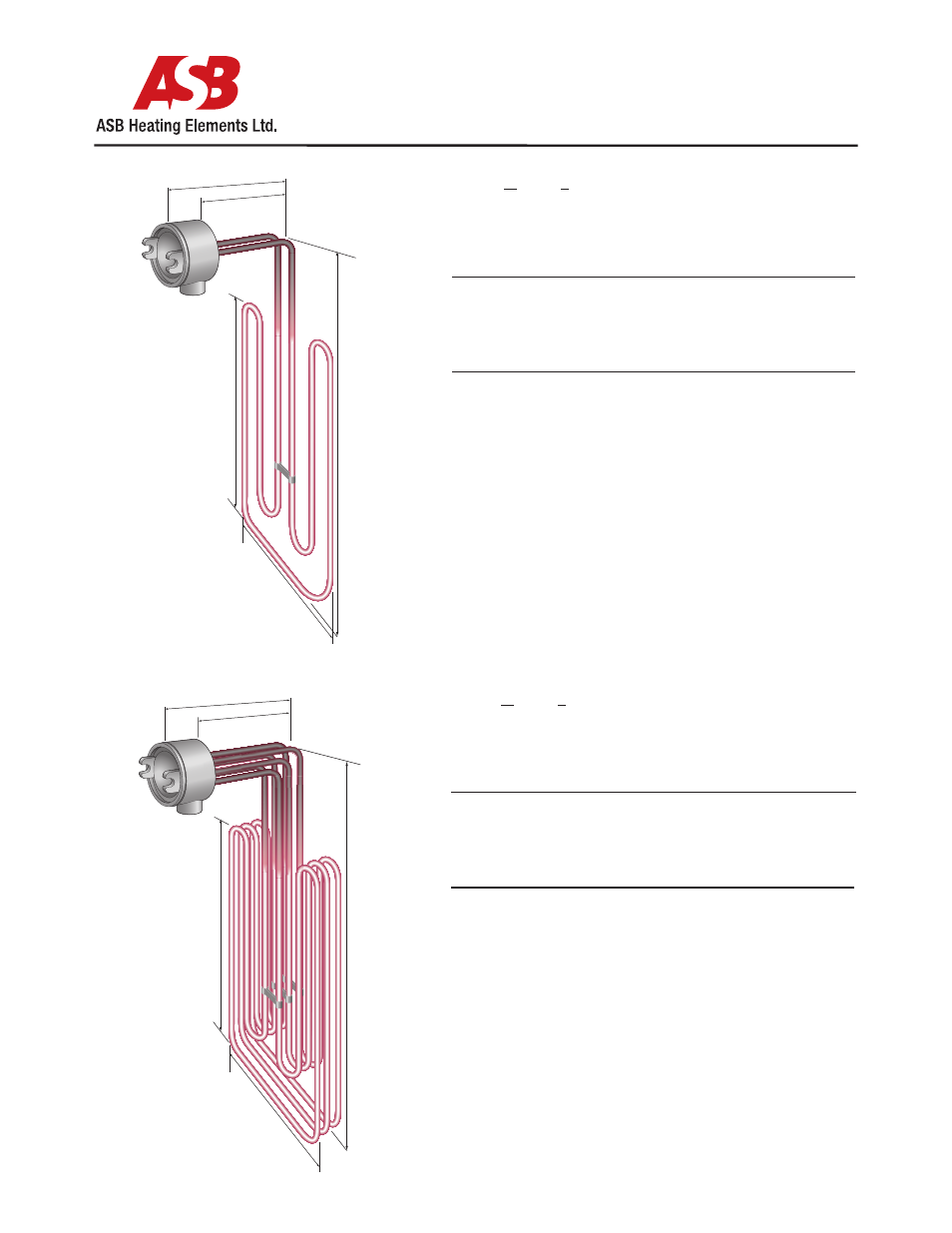

Figure 215
Figure 216
Hangs over lip of tank
Class 4 (Moisture Resistant terminal box)(NEMA 4)
1 element
Up to 600 volts, 1 phase
(specifiy voltage when ordering)
sheath material
net
weight
kw watts/in 2 316 ss Incoloy Inconel Titanium (lb)
3.0 18 RSHS-30 RSHI-30 RSHN-30 RSHT-30 8
5.0 30 RSHS-50 RSHI-50 RSHN-50 RSHT-50 8
7.5 45 RSHS-75 RSHI-75 RSHN-75 RSHT-75 8
Hangs over lip of tank
Class 4 (Moisture Resistant terminal box)(NEMA 4)
3 elements
Up to 600 volts, 1 or 3 phase
(specifiy voltage and 1 or 3 phase when ordering)
sheath material
net
weight
kw watts/in 2 316 ss Incoloy Inconel Titanium (lb)
9.0 18 RSHS-3009 RSHI-3009 RSHN-3009 RSHT-3009 20
15.0 30 RSHS-3015 RSHI-3015 RSHN-3015 RSHT-3015 20
22.5 45 RSHS-3022 RSHI-3022 RSHN-3022 RSHT-3022 20
