Tuff Stuff RCD-347 Chin/Dip/VKR & Push-Up Combo User Manual
Page 3
3
RCD-347 Chin-Dip / Ab-Back / Push-Up Stand

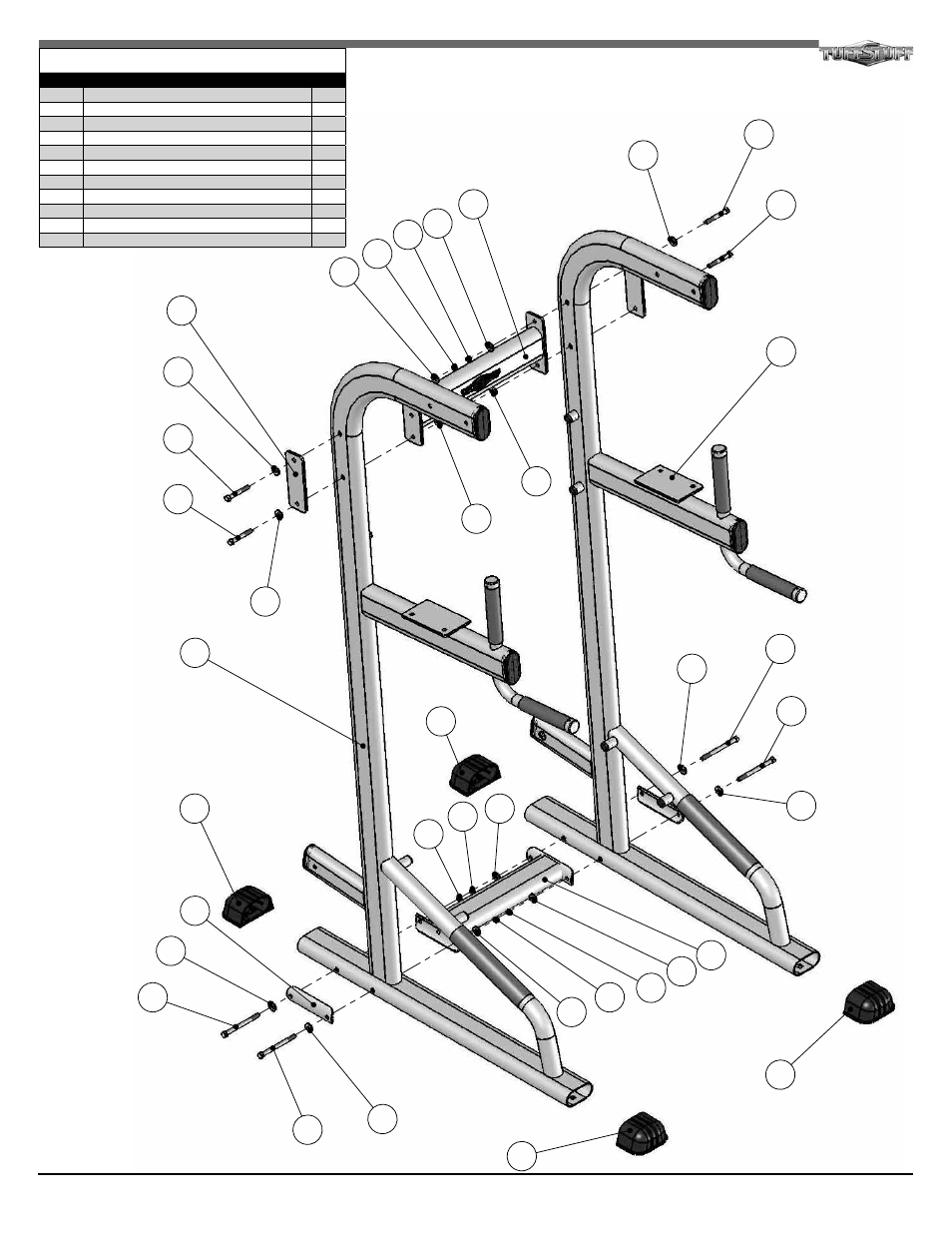

Step 1 Assembly List
Item #
Description
Qty.
1
MAIN FRAME LEFT SIDE
1
2
MAIN FRAME RIGHT SIDE
1
3
TOP CROSS BRACE
1
4
BOTTOM CROSS BRACE
1
12
REINFORCEMENT PLATE 1/4 X 2 1/2 X 7
2
13
REINFORCEMENT PLATE 1/4 X 2 X 7
2
18
PLASTIC ELLIPTICAL SHOE
4
27
HEX HEAD CAP SCREW 3/8-16 X 5
4
28
HEX HEAD CAP SCREW 3/8-16 X 3
4
33
NYLON INSERT JAM LOCK NUT 3/8-16
8
35
FLAT WASHER SAE 3/8”
16
