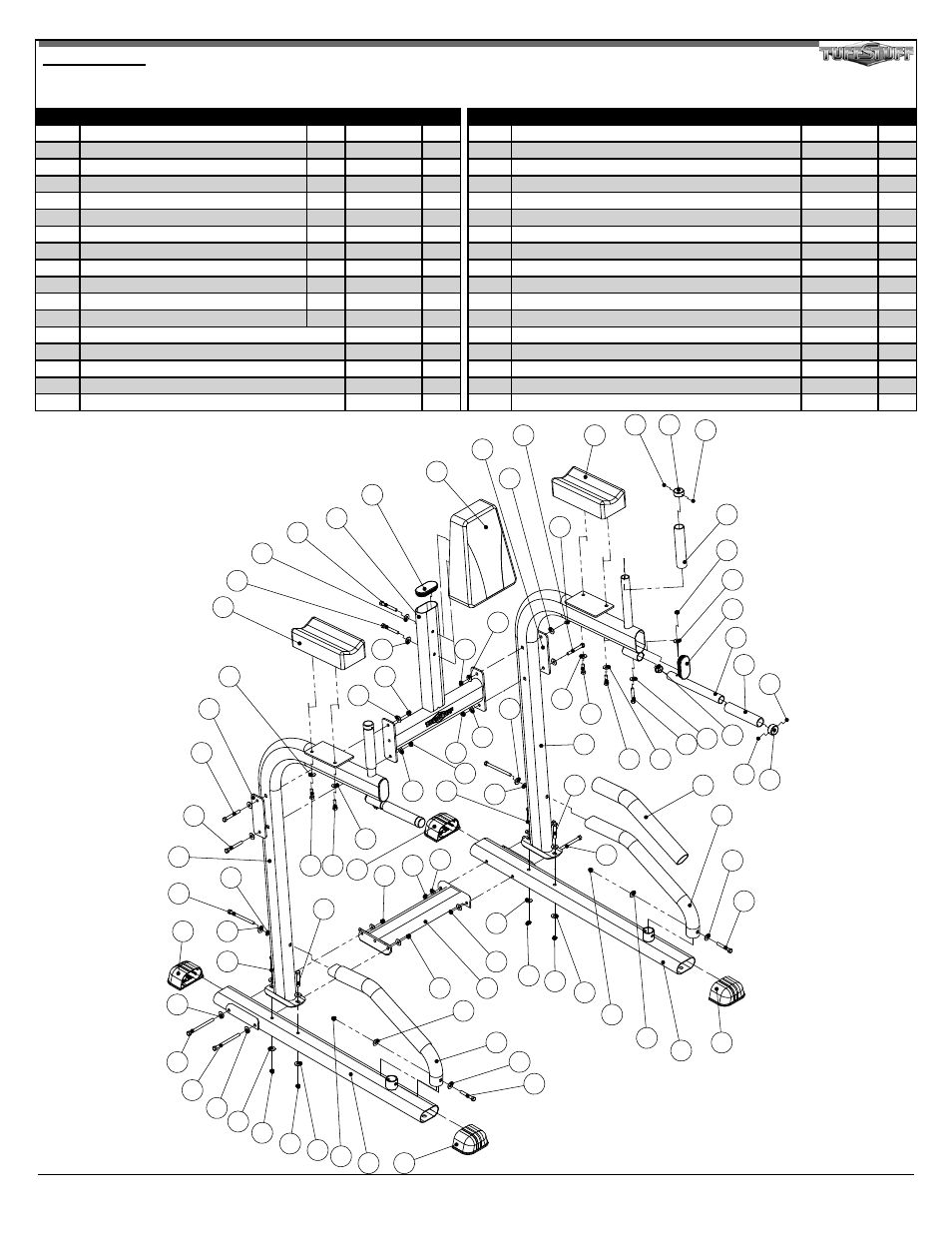

4 RVR-341 Vertical Knee Raise / Dip Stand
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 BASE FRAME LEFT SIDE 0 UP4984 1 18 ALUMINUM CAP 1.270" RD (CAP -125) BNH0538 4
2 BASE FRAM RIGHT SIDE 0 UP4985 1 19 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 5 BNH2051 6
3 BOTTOM BASE SUPPORT 0 UP4986 1 20 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 BNH2046 4
4 MAIN FRAME LEFT SIDE 0 UP4987 1 21 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 BNH2045 2
5 MAIN FRAME RIGHT SIDE 0 UP4988 1 22 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2 BNH2044 2
6 TOP SUPPORT 0 UP4989 1 23 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/8 BNH2043 4
7 FOOT SUPPORT 0 UP4990 2 24 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/16 BNH2094 2
8 HANDLE TUBE 0 UP4991 2 25 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 BNH2038 4
9 BACK PAD 0 UP4992 1 26 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026 16
10 REINFORCEMENT PLATE 1/4 X 2 1/2 X 7 0 UP4993 2 27 FLAT WASHER SAE Z/P 3/8" BNH2030 40
11 ARM PAD LEFT SIDE 0 UP4994 1 28 SPLIT LOCK WASHER Z/P 3/8" BNH2032 2
12 ARM PAD RIGHT SIDE 0 UP4995 1 29 SOCKET SET SCREW ALLOY 10-32 X 1/8 BNH0473 8
13 RUBBER TUBE 1.875 ID X .125 WALL X 19 BNH2093 2 30 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2
14 RUBBER GRIP 1.1875 ID X .125 X 7 BNH0944 4 31 HEX KEY ALLOY 3/32" BNH0372 1
15 PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847 4 32 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
16 PLASTIC INSERT CAP ELLIPTICAL 2 X 4 BNH1794 3 33 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1
17 PLASTIC INSERT CAP 1 1/4" RD 11 GA BNH0573 2
RVR-341
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
14
15
1
2
3
4
5
6
7
7
8
9
10
10
11
12
13
14
27
27
15
15
15
16
16
17
18
19
19
19
20
20
20
20
21
21
24
23
23
23
23
22
22
25 25
25
25
26
26
26
26
26
26
26 26
26
26
26
26
26
26
26
27
27
28
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
28
27
27
27
29
29
29
29
18
27
27
27
19
