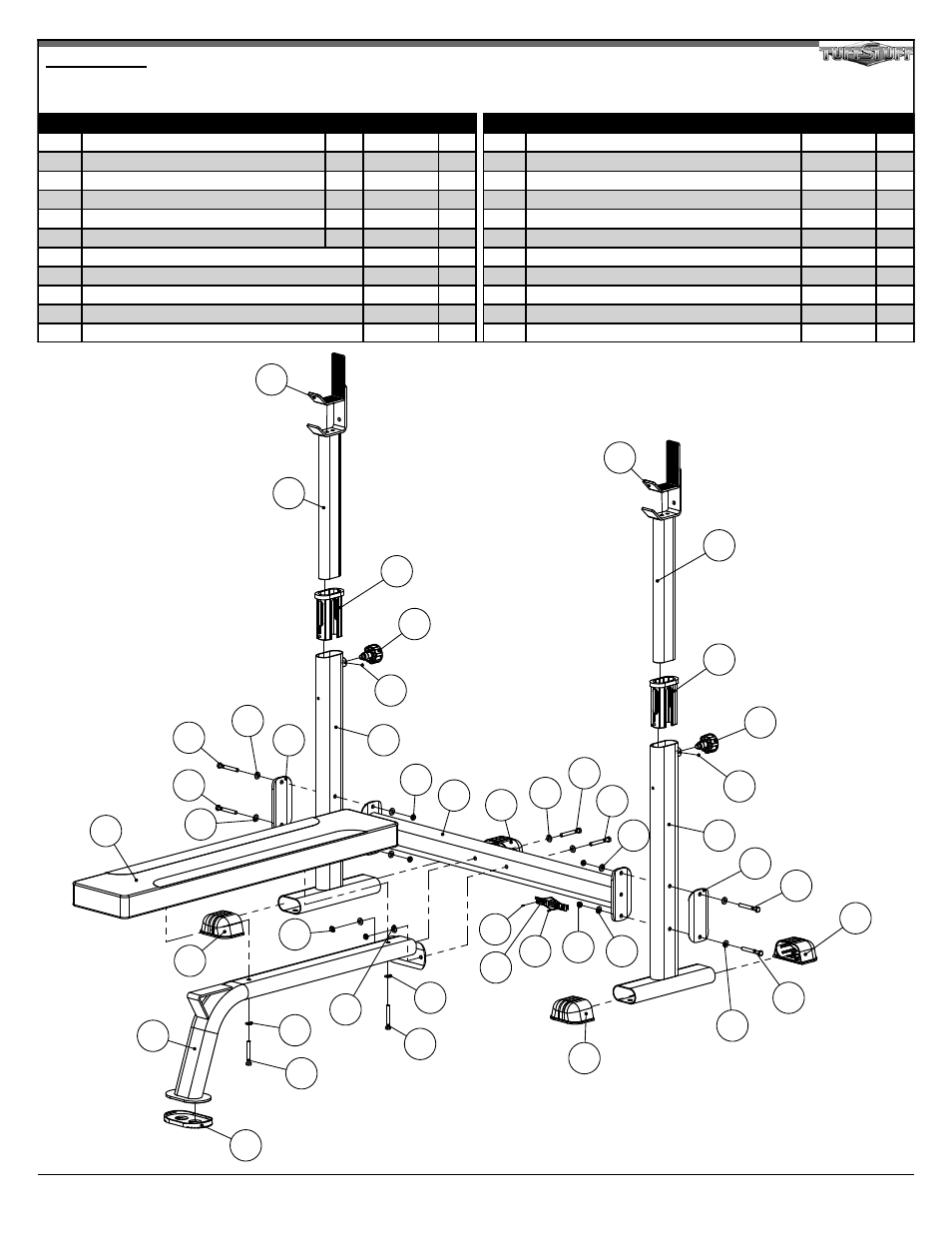

4 ROB-311 Olympic Bench
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 SIDE FRAME 0 UP4980 2 12 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 3 BNH2046 6
2 HORIZONTAL FRAME 0 UP4981 1 13 FLAT WASHER SAE Z/P 3/8" BNH2030 14
3 BENCH FRAME 0 UP4982 1 14 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026 6
4 ADJUSTABLE SADDLE 0 UP4983 2 15 FLAT PHILLIPS MACHINE SCREW 8-32 X 1/4 BNH0408 2
5 UPH PAD 0 UP3839 1 16 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2
6 REINFORCEMENT PLATE 1/4 X 3 7/8 X 6 3/4 0 UP3722 2 17 LITHIUM GREASE SMALL CONTAINER BNH0705 1
7 PLASTIC INSERT ELLIPTICAL GUIDE (2X4) BNH1760 2 18 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 BNH2045 2
8 PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847 4 19 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
9 RUBBER FOOT FOR 6 X 4 1/4 PLATE BNH1647 1 20 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1
10 PREVENT SLIDE BUMPER BNH02092 2 21 DECAL-IMPORTANT FOR BEST PERFORMANCE... BNH1894 2
11 TURN/PULL PIN W/KNOB AND LOCK BNH0989 2
ROB-311
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
1
2
3
4
5
6
6
7
7
8
8
8
9
10
10
4
1
11
11
12
12
12
12
12
12
13
13
13
13
13
13
13
13
14
14
14
15
15
16
16
18
18
13
8
19
