Tuff Stuff RMA-320 Mini Ab Bench - Manual (Page 4)

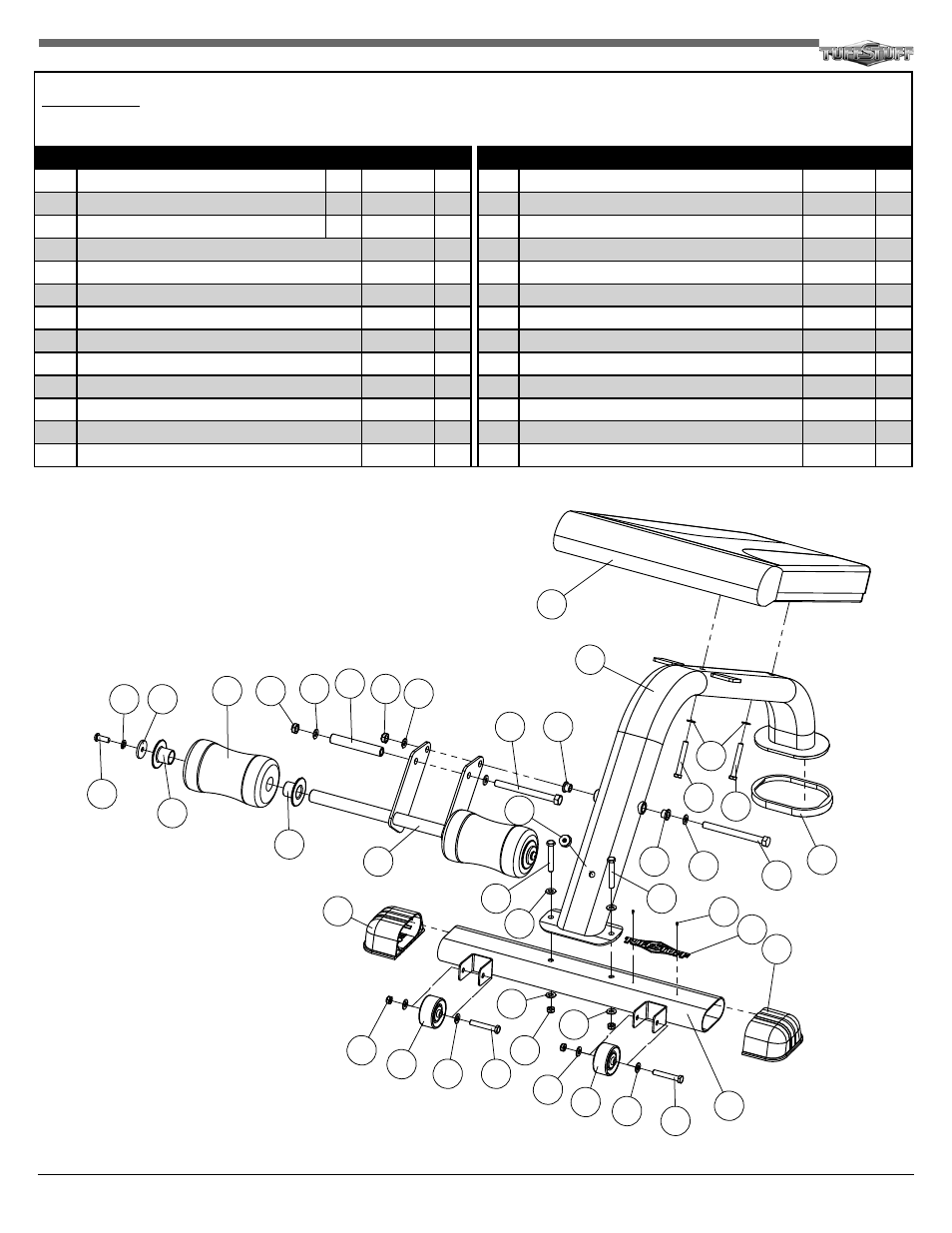

4 RMA-320 Mini Ab Bench
14
11
13
23
14
1
21
11
15
19
6
6
12
15
18
18
15
20
18
18
15
17
16
19
16
21
22
25
7
22
13
19
2
3
9
5
18
18
8
4
10
18
9
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 MAIN FRAME 0 UP5318 1 14 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 BNH2045 2
2 FOAM ROLL FRAME 0 UP5319 1 15 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/8 BNH2043 4
3 STABILIZER FRAME 0 UP5320 1 16 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 5 1/2 BNH2066 2
4 NYLON TUBE 1/2 X 3/4 X 4 9/16 BNH2099 1 17 BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 BNH2033 2
5 FOAM FOOT ROLL 1 X 4 X 7 W/VINYL UP3785 2 18 FLAT WASHER SAE Z/P 3/8" BNH2030 10
6 FOAM ROLL 1" NYLINER BUSHING BNH2025 4 19 FLAT WASHER SAE Z/P 1/2" BNH2031 4
7
ALUMINUM WASHER .390 ID X 1.500 OD X .150 THK BNH1541
2 20
SPLIT LOCK WASHER Z/P 3/8" BNH2032
2
8 SEAT PAD UP5321 1 21
NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026
4
9
PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847
2 22
NYLON INSERT JAM LOCK NUT Z/P 1/2-13 BNH2027
2
10
URETHANE BUMPER 962 BNH0244
1 23
FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480
2
11
BRONZE BUSHING 1/2 X 5/8 X 1/2 X 7/8 X 1/8 BNH0528
2 24
HEX KEY ALLOY 7/32" BNH0575
1
12
RUBBER FOOT FOR 6 X 4 1/4 PLATE BNH1647
1 25
TUFFSTUFF LOGO ALUMINUM SMALL BNH1323
1
13 BLACK WHEEL 3/8 X 3 X 1 1/4 W/BEARING BNH0300 2 26 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1
RMA-320
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
