Tuff Stuff RAC-365 Seated Arm Curl Bench - Manual (Page 4)

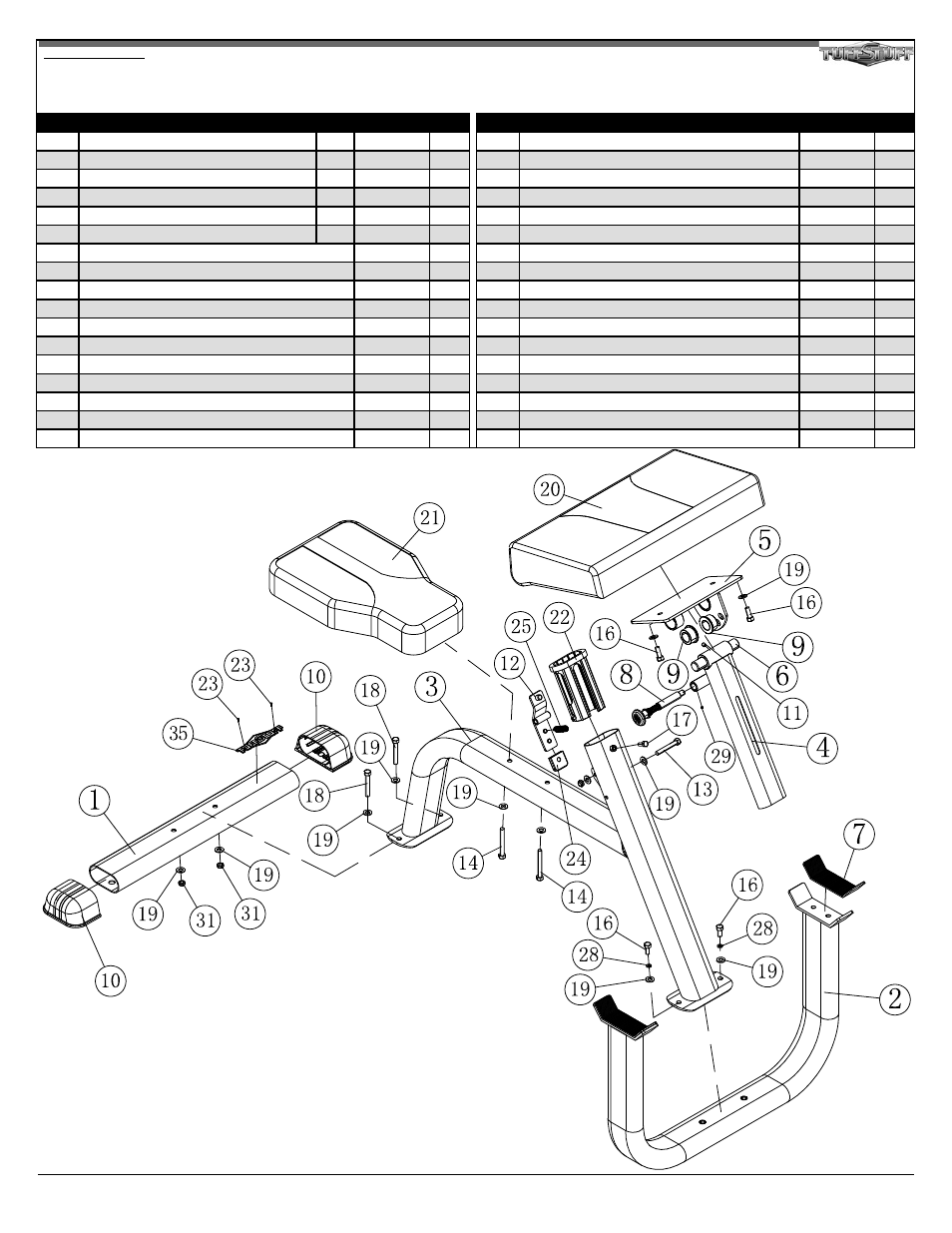

4 RAC-365 Seated Arm Curl Bench
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 REAR BASE FRAME 0 UP3980 1 19 FLAT WASHER SAE Z/P 3/8" BNH2030 12
2 FRONT U FRAME 0 UP3981 1 20 ARM PAD / PREACHER CURL PAD UP3986 1
3 MAIN FRAME 0 UP3982 1 21 SEAT PAD UP3987 1
4 ADJUSTABLE CHROME TUBE 0 UP3983 1 22 PLASTIC INSERT ELLIPTICAL GUIDE (2X4) BNH1760 1
5 ADJUSTABLE CHROME PLATE 0 UP3984 1 23 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2
6 PIVOT AXLE 1 X 5 1/2 0 UP3985 1 24 RELEASE LEVER PROTECTIVE COVER BNH1940 1
7 RUBBER CORR MAT 1/8 X 1 7/8 X 7 1/4 BNH2080 2 25 STIFF SPRING BNH0519 1
8 PULL PIN 1/2 X 5 5/8 (YELLOW) BNH0701 1 26 LITHIUM GREASE SMALL CONTAINER BNH0705 1
9 NYLON BUSHING 1 X 1 1/2 X 7/8 BNH0531 2 27 HEX KEY ALLOY 5/32" BNH0373 1
10 PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847 2 28 SPLIT LOCK WASHER Z/P 3/8" BNH2032 2
11 SOCKET SET SCREW ALLOY 5/16-18 X 5/16 BNH1453 1 29 SOCKET SET SCREW ALLOY 10-32 X 1/8 BNH0473 1
12 ADJUSTABLE RELEASE HOLDER UP3739 1 30 HEX KEY ALLOY 3/32" BNH0372 1
13 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 1/2 BNH2044 1 31 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026 3
14 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4 BNH2045 2 32 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1
16 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 BNH2038 4 33 DECAL-DANGER TIGHTEN THIS RETAINING... BNH0142 1
17 HEX HEAD CAP SCREW GR-5 Z/P 5/16-18 X 3/4 BNH2049 1 34 DECAL-IMPORTANT FOR BEST PERFORMANCE... BNH1894 1
18 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/8 BNH2043 2 35 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
RAC-365
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
