Tuff Stuff RMB-375 Multi-Purpose Bench - Manual (Page 4)

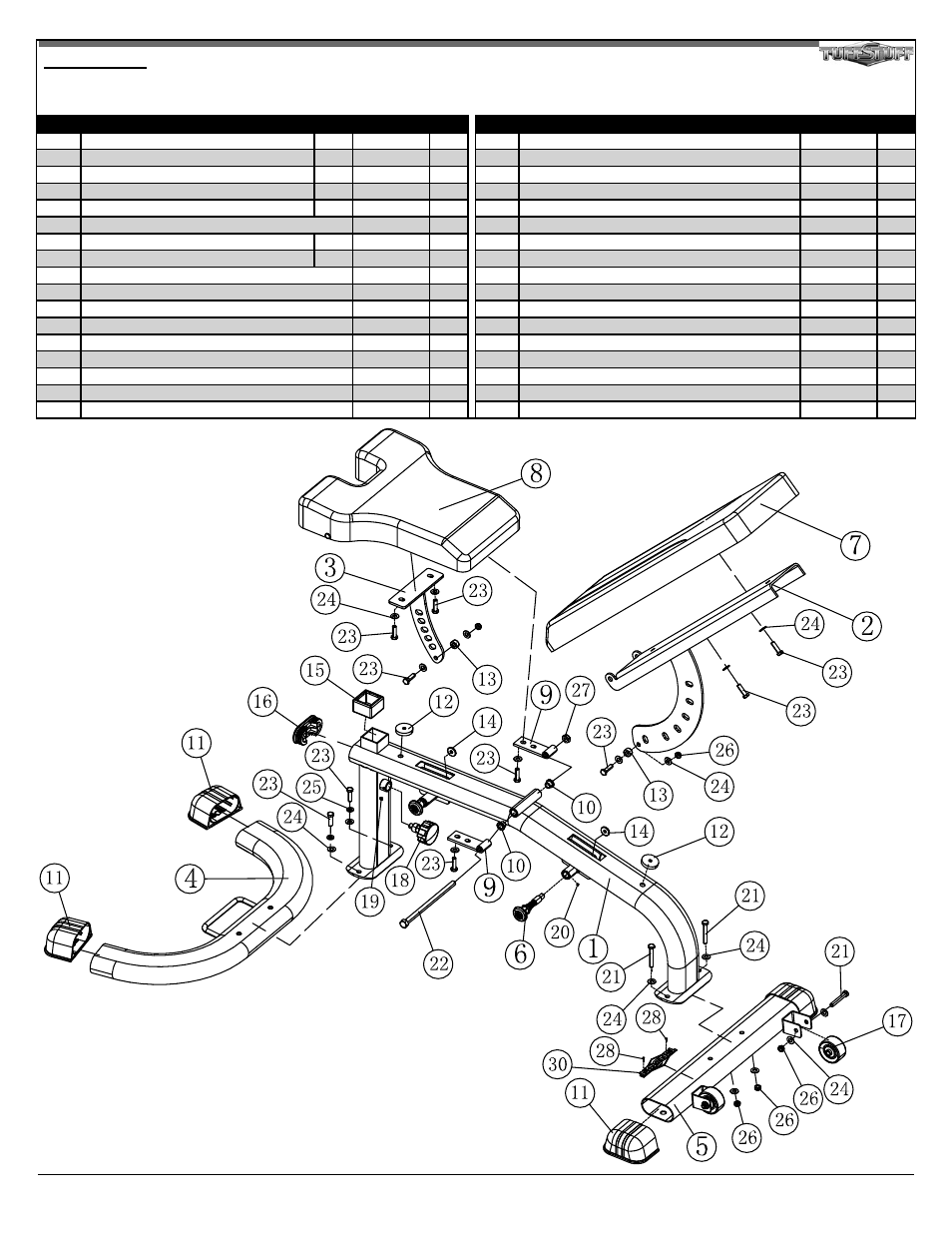

4 RMB-375 Multi-Purpose Bench
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 MAIN FRAME 0 UP4973 1 18 TURN/PULL PIN W/KNOB AND LOCK BNH0989 1
2 BACK PAD BRACKET 0 UP4974 1 19 FLAT PHILLIPS MACHINE SCREW 8-32 X 1/4 BNH0408 1
3 SEAT PAD BRACKET 0 UP4975 1 20 SOCKET SET SCREW ALLOY 10-32 X 1/8 BNH0473 2
4 FRONT BASE FRAME 0 UP4976 1 21 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/8 BNH2043 4
5 REAR BASE FRAME 0 UP4977 1 22 HEX HEAD CAP SCREW GR-5 Z/P 1/2-13 X 8 1/2 BNH2087 1
6 PULL PIN 1/2 X 3 1/2 (YELLOW) BNH0603 2 23 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 1/4 BNH2038 10
7 BACK PAD 0 UP4978 1 24 FLAT WASHER SAE Z/P 3/8" BNH2030 20
8 SEAT PAD 0 UP4979 1 25 SPLIT LOCK WASHER Z/P 3/8" BNH2032 2
9 METAL HINGE BNH0046 2 26 NYLON INSERT JAM LOCK NUT Z/P 3/8-16 BNH2026 6
10 BRONZE BUSHING 1/2 X 5/8 X 1/2 X 7/8 X 1/8 BNH0528 2 27 NYLON INSERT JAM LOCK NUT Z/P 1/2-13 BNH2027 1
11 PLASTIC HORIZONTAL ELLIPTICAL SHOE BNH1847 4 28 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2
12 URETHANE BUMPER 1 3/4 BNH0229 2 29 HEX KEY ALLOY 3/32" BNH0372 1
13 NYLON SPACER 3/8 X 3/4 X 3/8 BNH0392 2 30 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
14 NYLON STEM BUTTON (26 X 9.5 X 2.67 X 12.6) BNH0569 4 31 DECAL-CAUTION WEIGHT TRAINING SAFETY... BNH0126 1
15 PLASTIC TUBE GUIDE W/LIP 2" SQ BNH0058 1 32 DECAL-DANGER TIGHTEN THIS RETAINING... BNH0142 2
16 PLASTIC INSERT CAP ELLIPTICAL 2 X 4 BNH1794 1 33 DECAL-WARNING ATTENTION USERS! MOVING... BNH1895 1
17 BLACK WHEEL 3/8 X 3 X 1 1/4 W/BEARING BNH0300 2
RMB-375
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
