STEP 1 WITH AP-70RP
4 AP-7000 SERIES HIGH LOW STATION
A8
A7
A10
27
56
32
48
A8
A7
A10
48
56
38
79
9
A1
2
A8
A7
A10
27
56
32
48
A8
A7
A10
48
56
38
79
9
A1
2

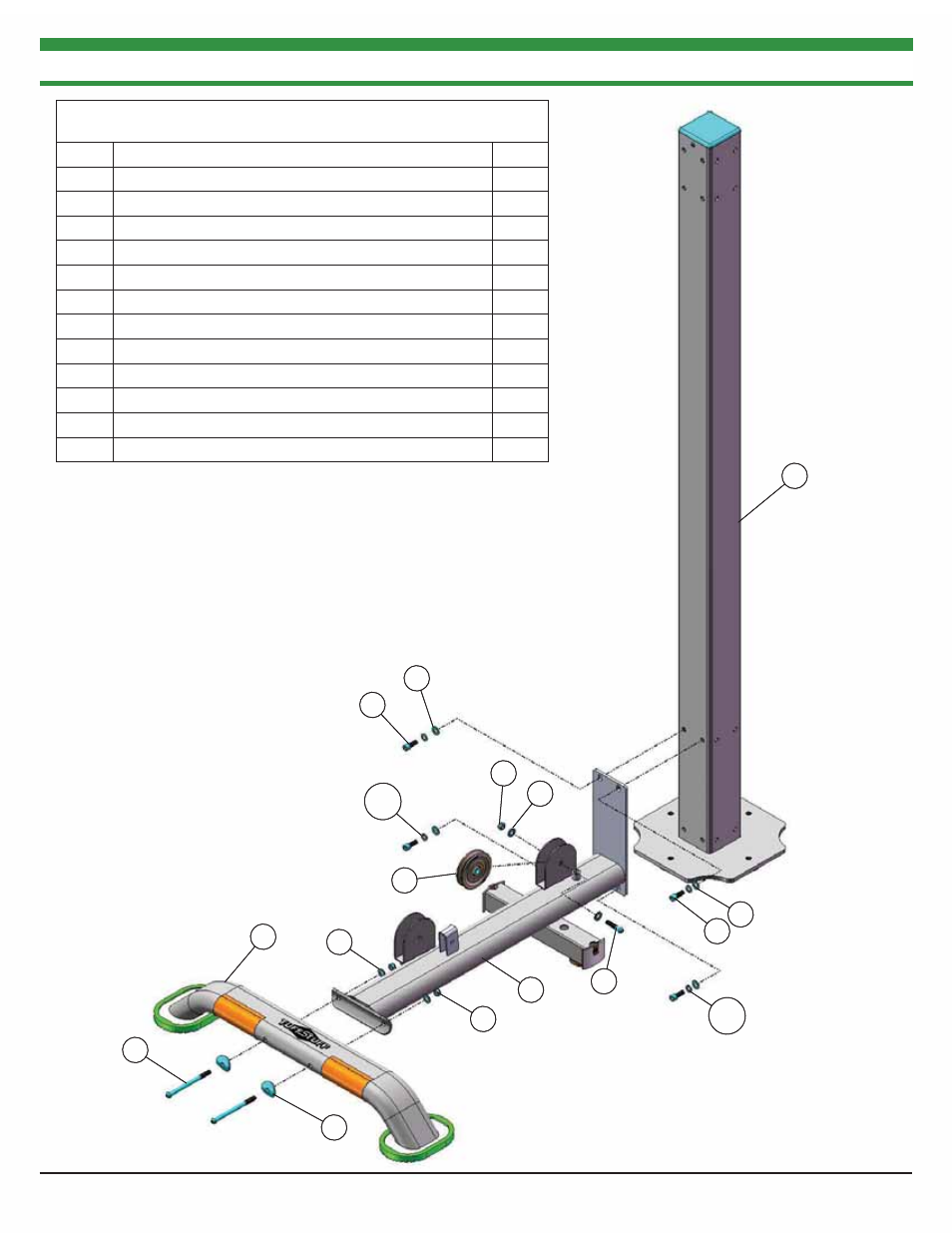

Assembly List
Item # Description Qty.
A1 CENTER POST 1
A7 SOCKET CAP SCREW GR-8 N/P 3/8-16 X 1 4
A8 FLAT WASHER SAE N/P 3/8” 4
A10 SPLIT LOCK WASHER N/P 3/8” 4
2 BASE FRAME 1
9 FOOT SUPPORT TUBE 1
27 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 1
32 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 1 3/4 1
38 BUTTON HEAD SCREW GR-8 N/P 3/8-16 X 5 2
48 FLAT WASHER SAE N/P 3/8” 4
56 NYLON INSERT LOCK NUT N/P 3/8-16 3
79 U-SHAPE WASHER N/P 3/8 ID X 1 1/2 OD X 3/16 2
STEP 3
6 AP-7000 SERIES HIGH LOW STATION
