9 SPT-7 Six - Pak Light Commercial Trainer

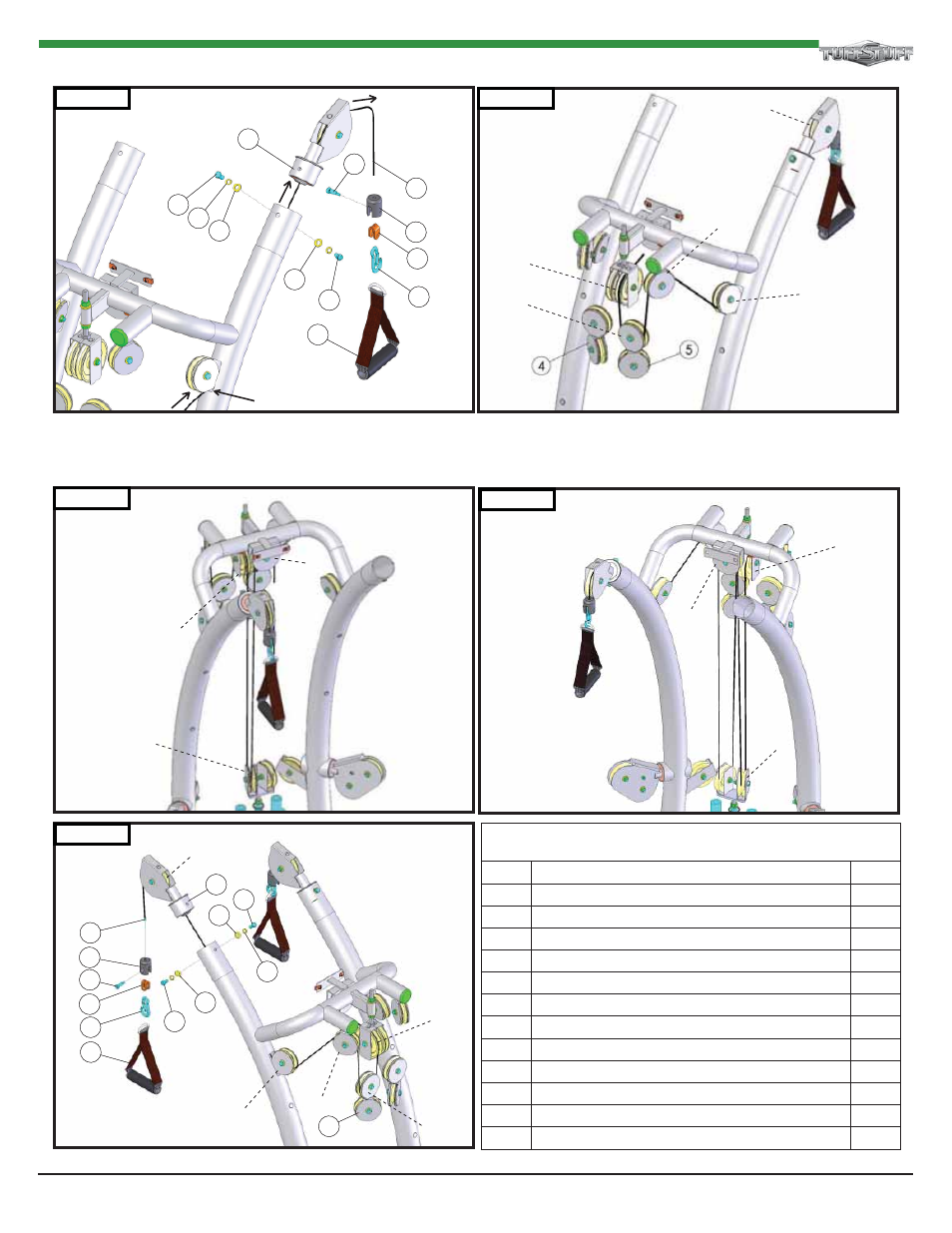

Step 6 Lat Cable Routing
STEP 3
E
F
G
STEP 4
I
G
H
8
51
79
86
81
49
59
21
85
59
49
4
8
51
79
86
81
74
49
59
21
85
59
49
4
STEP 5
M
L
K
J
I
STEP 2
E
B
A
D
C
59
49
59
21
85
49
74
81
86
51
79
8
59
49
59
21
85
49
81
86
51
79
8
STARTING POINT
STEP 1
RUN CABLE THROUGH STARTING POINT INTO
TOP SWIVEL PULLEY BRACKET AS SHOWN AND
THEN ASSEMBLE IT TO THE UNIT. FOLLOW LETTER SEQUENCE
TO ROUTE THE CABLE.
Assembly List
Item # Description Qty.
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
8 LAT CABLE 1
21 TOP BEARING HOUSING 2
49 FLAT WASHER SAE B/O 3/8” 4
51 HARD PVC CABLE STOPPER 1 1/2 RD X 2 2
59 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 4
74 NYLON D HANDLE 2
79 SHOULDER BOLT ALLOY 3/8 X 3/4 2
81 SNAP LINK Z/P 8MM X 80MM 2
85 SPLIT LOCK WASHER B/O 3/8” 4
86 STRAP BRACKET 20 #SF20 STAINLESS STEEL 2
