Tuff Stuff CXT-125 Smith Press System Attachment - Manual (Page 3)

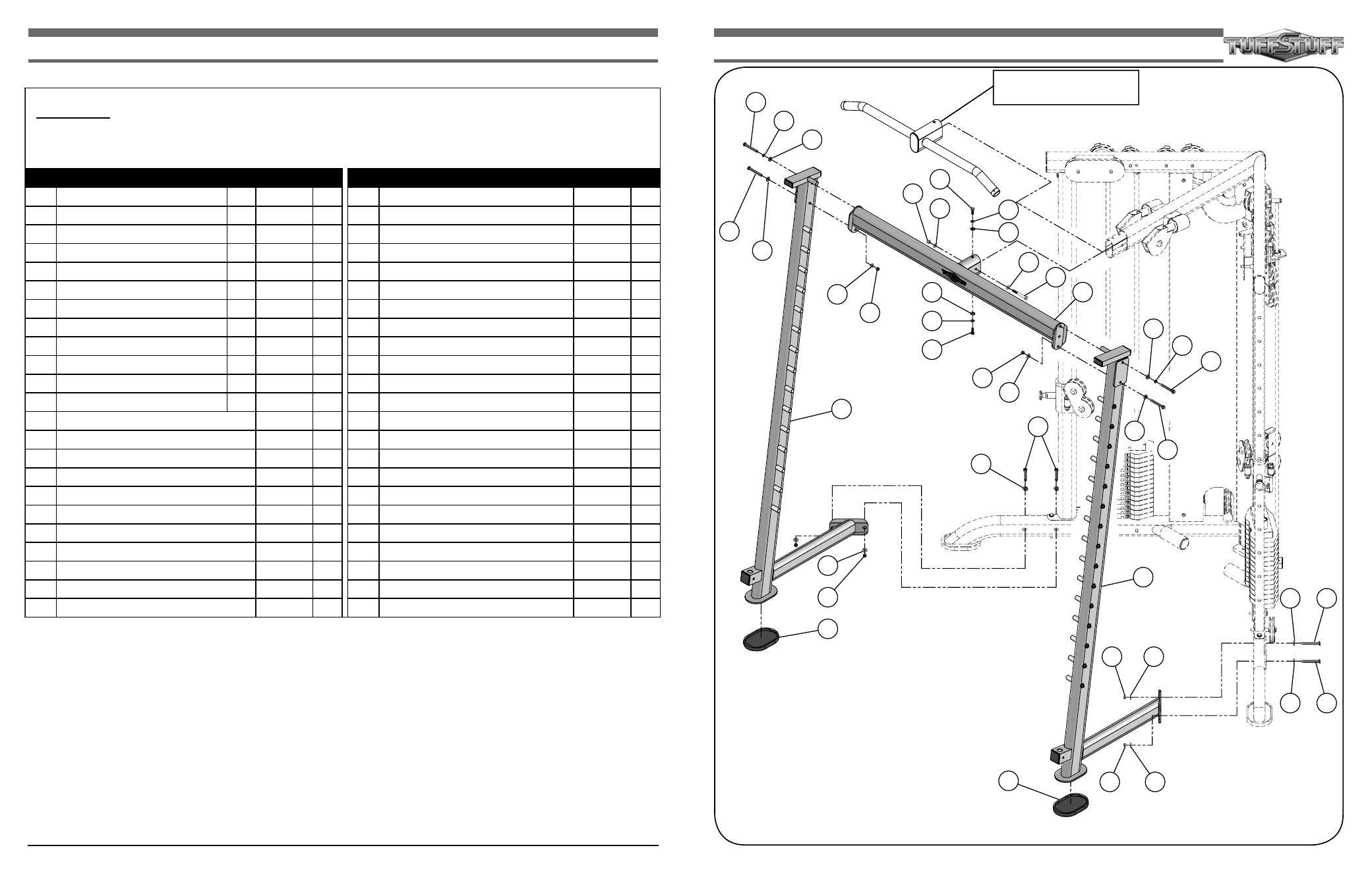

Step 1 Affi x Side Frames to the CXT-100
3 CXT-125 Smith Machine Attachment (CXT-100 Option) 6 CXT-125 Smith Machine Attachment (CXT-100 Option)
REV0
ITEM DESCRIPTION REV PART NO. QTY ITEM DESCRIPTION PART NO. QTY
1 LINEAR SHAFT 1 X 79 1/2 0 UP3875 2 23 FLAT WASHER SAE B/O 3/8" BNH0239 50
2 SAFETY SPOTTER LT 0 UP3868 1 24 GLIDE BUSHING Ø40 X 16 mm BNH1931 4
3 SAFETY SPOTTER RT 0 UP3867 1 25 GLIDE STOPPER Ø2.559 X .945 BNH1932 2
4 SIDE FRAME LT 0 UP3865 1 26 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 BNH0275 2
5 SIDE FRAME RT 0 UP3864 1 27 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 2 1/2 BNH0276 3
6 STOPPER PRONG Ø3/4 X 3 1/2 0 UP3874 30 28 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 BNH0282 8
7 TOP CROSS BRACE 0 UP3866 1 29 HEX KEY ALLOY 5/32" BNH0373 1
8 WEIGHT LIFT BAR 0 UP3873 1 30 HEX KEY ALLOY 7/32" BNH0575 1
9 WEIGHT LIFT BAR HOOK LT 0 UP3872 1 31 INTERNAL RETAINING RING Ø40 mm BNH1923 8
10 WEIGHT LIFT BAR HOOK RT 0 UP3871 1 32 LINEAR BEARING SUPER SMART SSU16-RP BNH0770 4
11 WEIGHT PRONG LT 0 UP3870 1 33 NYLON INSERT JAM LOCK NUT B/O 3/8-16 BNH0365 9
12 WEIGHT PRONG RT 0 UP3869 1 34 PLASTIC INSERT CAP 1 5/8" RD 10-14 GA BNH1910 2
13 ABS SLEEVE 1 5/8 X 12 BNH1927 2 35 PLASTIC INSERT CAP 1" X 2"_ 10-14 GA BNH0005 4
14 BLACK RUBBER GRIP 1/2 X 4 7/8 BNH1818 2 36 PLASTIC INSERT CAP 2" SQ 10-14 GA BNH0012 2
15 BRONZE BUSHING Ø25 X Ø19 X 20 mm BNH1926 2 37 ROLL PIN Ø6 mm X 14 mm BNH1924 4
16 BRONZE BUSHING Ø31 X Ø25.4 X Ø19 X 20 mm BNH1925 2 38 RUBBER FOOT FOR 6 X 4 1/4 PLATE BNH1647 2
17 BUTTON HEAD SOC CAP SCREW B/O 3/8-16 X 1 BNH0115 30 39 RUBBER STOPPER Ø63.5 X Ø25 X 26 mm BNH1930 4
18 DECAL-DANGER ENGAGE SAFETY SPOTTER… BNH1848 2 40 RUBBER WASHER 1 7/8 ID X 3 OD X 19/32 TK BNH1909 2
19 DECAL-DECAL-NUMBERS 1-15 TEFLON BNH1898 2 41 SOCKET SET SCREW ALLOY 5/16-18 X 5/16 BNH1453 2
20 DECAL-EXERCISE CHART (CXT-125) BNH1901 1 42 SPLIT LOCK WASHER B/O 3/8" BNH0658 34
21 DECAL-IMPORTANT FOR BEST PERFORMANCE.. BNH1894 2 43 TUFFSTUFF LOGO ALUMINUM SMALL BNH1323 1
22 FLAT PHILLIPS SCREW ZINC # 2 X 1/2 BNH1480 2
CXT-125
Parts List
COLOR CHART
BOLD FONT = SUB-ASSEMBLY PARTS
BLACK= HARDWARE
28
42
23
33
23
33
23
28
26
23
23
42
26
23
23
23
42
28
23
23
5
38
38 33 23
23 33
28
23 28
23
33
28
4
28
23
Remove CXT-100
Chin-up Bar
27
7
42
33
23
