ULTRA EDGE SERVO ROLL FEED 2/14/2003

1.7 RUNNING THE FEED

Put the Ultra Edge into “Auto” mode and press the Cycle Start button. The Ultra Edge Servo
Roll Feed will now follow the press until the Operator stops it, counter, emergency stop, or feed
error.

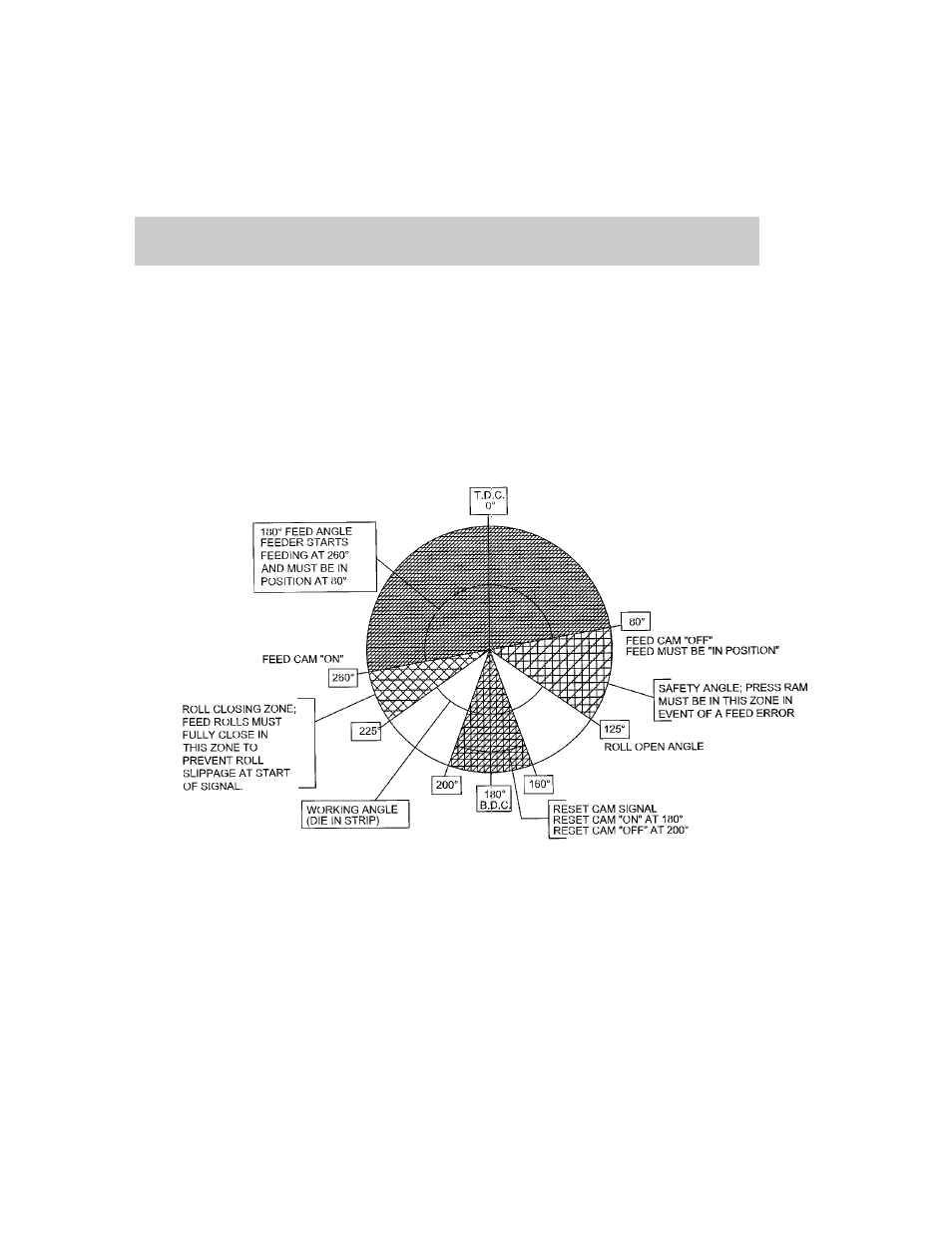

TYPICAL 180 DEGREE FEED ANGLE (FROM 260 DEGREES TO 80

DEGREES) WITH MECHANICAL PILOT RELEASE:

FIGURE 5
