8 Beacon Transmitter
• For operation up to 20m (65ft) the beam must within 5° of parallel to the
road surface.

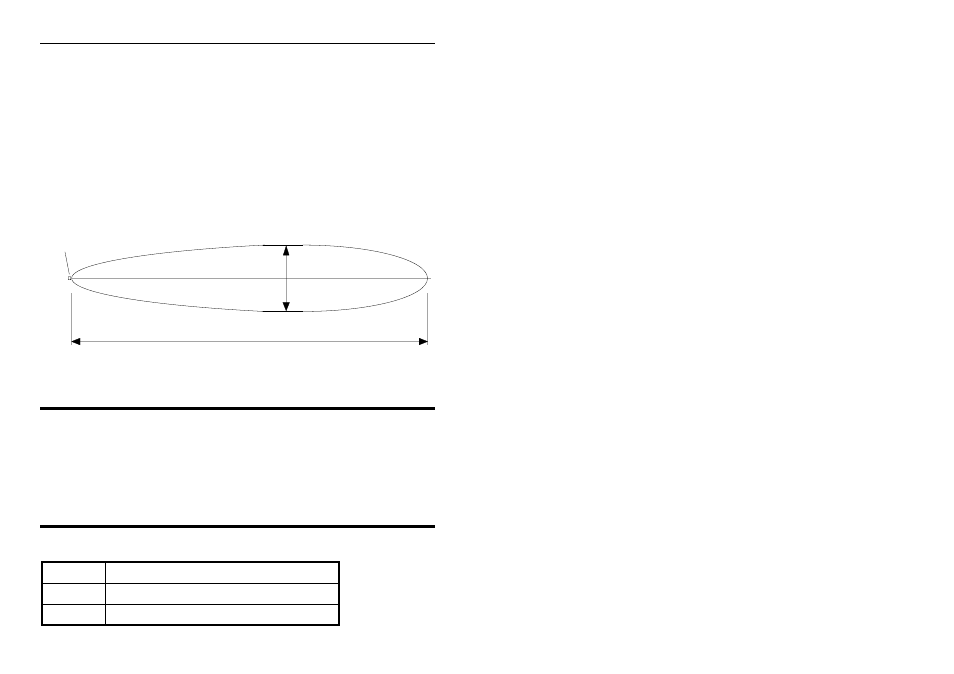

Beam Pattern
The approximate beam pattern is shown below.
The pattern shows the limits of operation, when the beacon receiver is within
2
° of axial to the beam.
Notice that at distances greater than about 20 m (65 ft) the beam becomes
narrower which is why the angle of the transmitter becomes more critical at
longer distances.
> 25 m
Transmitter
5m (approx)
ID Number Adjustment
Turn the power off before adjusting the ID number to avoid accidental
damage to the electronics.
The ID number is set using the rotary switches inside the unit. To access the
switches remove the 4 screws from the front cover of the unit.
LED
The LED has three colours that have the following meanings:
Green OK
Orange Low battery voltage ( Less than 10.5V )
Red Fault or very low battery voltage
