Appendix
11
● PAIRING THE TRANSMATTER MODULE AND DISPLAY RECEIVER
Home Roam TV is shipped from the factory already paired between the transmitter and the Home Roam
Display. Should the pairing ever be disrupted, you will not receive any video or audio on the display.
STEP 1: TURN ON BOTH UNITS
Make sure both the Transmitter Module and the Display Receiver are properly powered and turned on.

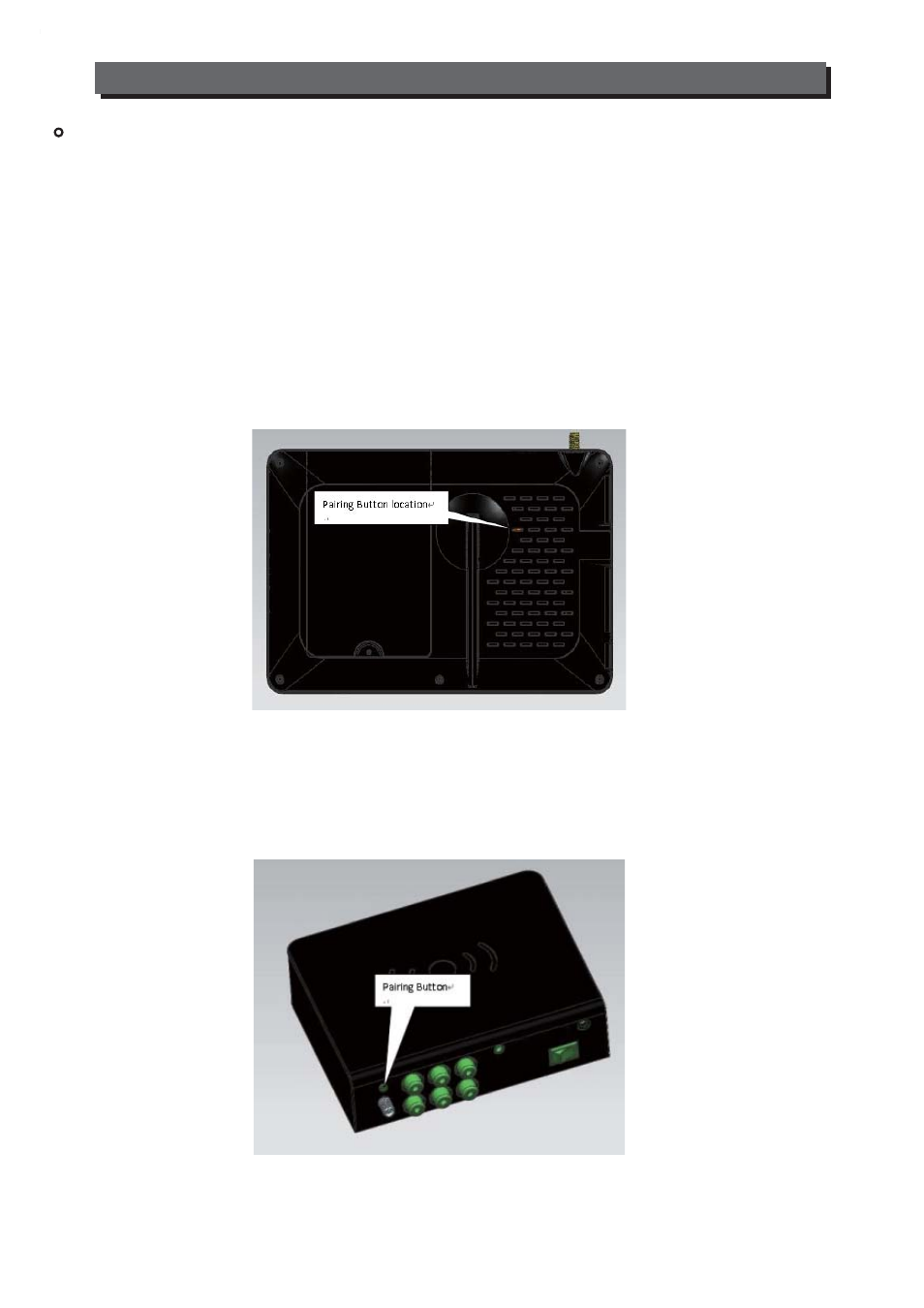

STEP 2: LOCATE PAIRING BUTTON ON THE BACK OF THE DISPLAY RECEIVER
Use a toothpick or a ball pen tip to activate the PAIRING sequence by pressing the Yellow button hidden
in the perforation of the rear panel of the Display Receiver. The button can be located on the 1st cell of
the 4th row as indicated in the following figure. Red letter “PAIRING” will be displayed on the screen after
you flip over the unit.
STEP 3: LOCATE PAIRING BUTTON ON THE BACK OF THE TRANSMITTER MODULE
Use a toothpick or a ball pen tip to activate the PAIRING sequence by pressing the Black button above
the antenna socket on the rear panel of the Transmitter. Pairing sequence starts automatically. “PAIR
OK” will be displayed on the Display Receiver screen after successful pairing of both units.
