Chenbro SK51201 6Gb/s 2-port SATA/SAS BP(80H10551202A0) for SK51201 - Manual User Manual
Page 6
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: [email protected]
6
www
.chenbr
o.com

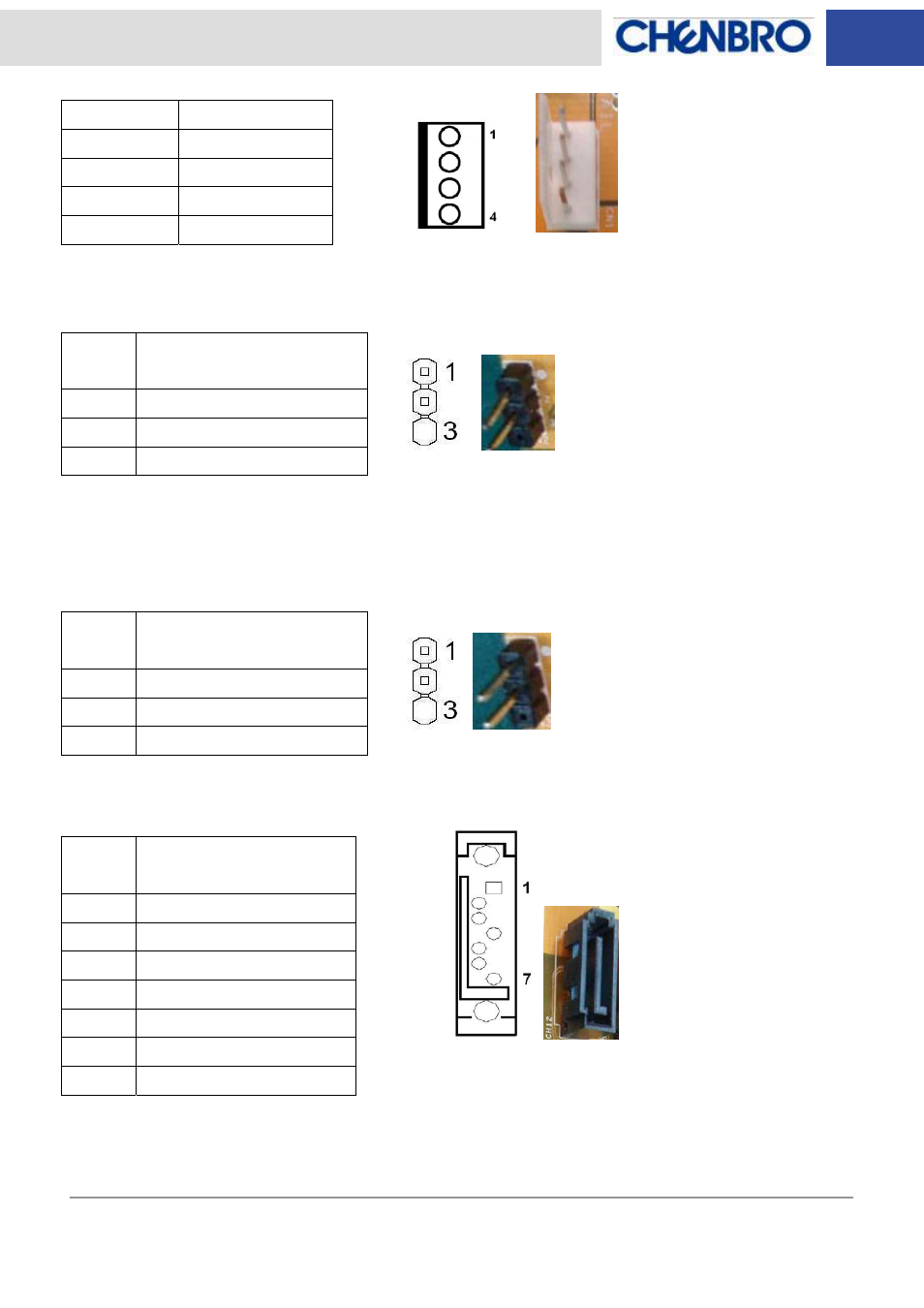

POWER Connector (CN1)
HDD ACCESS LED Connector (CN2)
HDD FAIL LED Connector (CN3)
HOST IN Connector (CH12)
Pin NO.
Description
1 12V
2 GND
3 GND
4 5V
Pin
NO.
Description
1
HDD ACCESS LED (CH11)
2
HDD ACCESS LED (CH21)
3 KEY
PIN
Pin
NO.
Description
1
HDD FAIL LED (CH11)
2
HDD FAIL LED (CH21)
3 KEY
PIN
Pin
NO.
Description
1 GND
2 RP
3 RN
4 GND
5 TN
6 TP
7 GND
