Chenbro SR209/105/107/108
4-Ports Mini-SAS Backplane User’s Manual

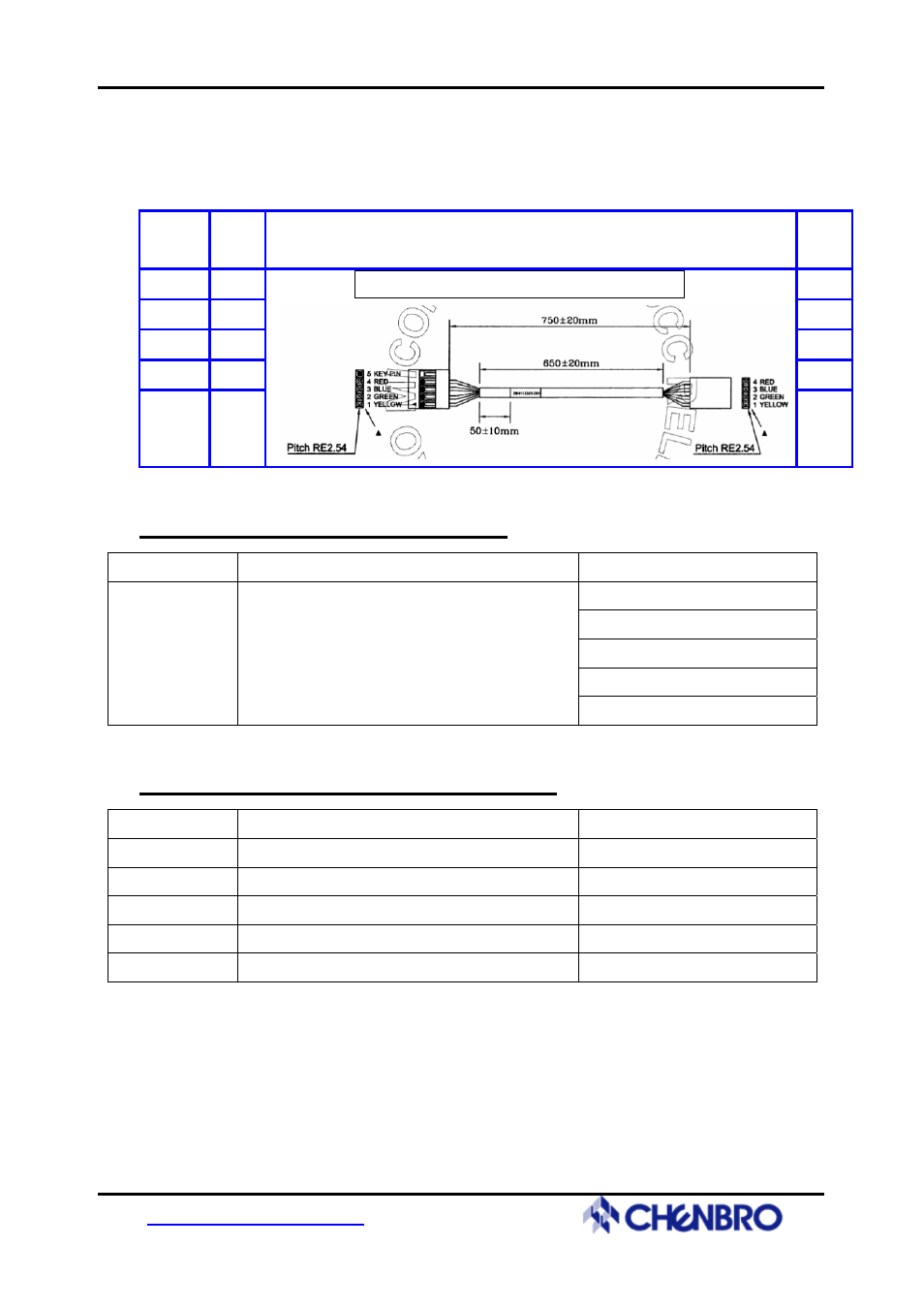

2. Please refer to below adapter cable for HDD activity LED in case HDD
can’t support activity signal
For Areca , 3Ware and High Point RAID Card wiring diagram :
HDD Pin HDD LED Adapter Cable (1 x 5pins to 1 x 4pins) RAID
Card
1 1 N/A
2 3 HDD4
3 5 HDD3
4 7 HDD2
Key
Pin
9
Cable Part No. : 26H113322-001
HDD1
Compatible Chassis Model List
Part No. Description Chassis Model
SR209 (required 1 pcs)
SR105 (required 1 pcs)
SR107 (required 2 pcs)
SR108 (required 2 pcs)
80H102209-013
4 ports MINI-SAS Backplane with SGPIO/I2C
functionality for HDD fail LED
RM314 (required 2 pcs)
Ordering Information for HDD Cage
Part No. Description Chassis Model
84H220910-045 4 ports MINI-SAS HDD Cage (BK) SR209/SR105
84H220910-046 4 ports MINI-SAS HDD Cage (Beige) SR209/SR105
84H210710-056 4 ports MINI-SAS HDD Cage (BK) SR107/SR108
84H210710-057 4 ports MINI-SAS HDD Cage (Beige) SR107/SR108
TBD 4 ports MINI-SAS Backplane Assembly RM314
Note :
Above mentioned part no. of HDD cage is not including
Mini-SAS cable , it’s additional item for ordering !
If needs it , pls request your sales representative to process
order
http://www.chenbro.com
12
