6

16-Port Mini-SAS Backplane 80H103316-001 ver. A2 & B0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]

www

.chenbr

o.com

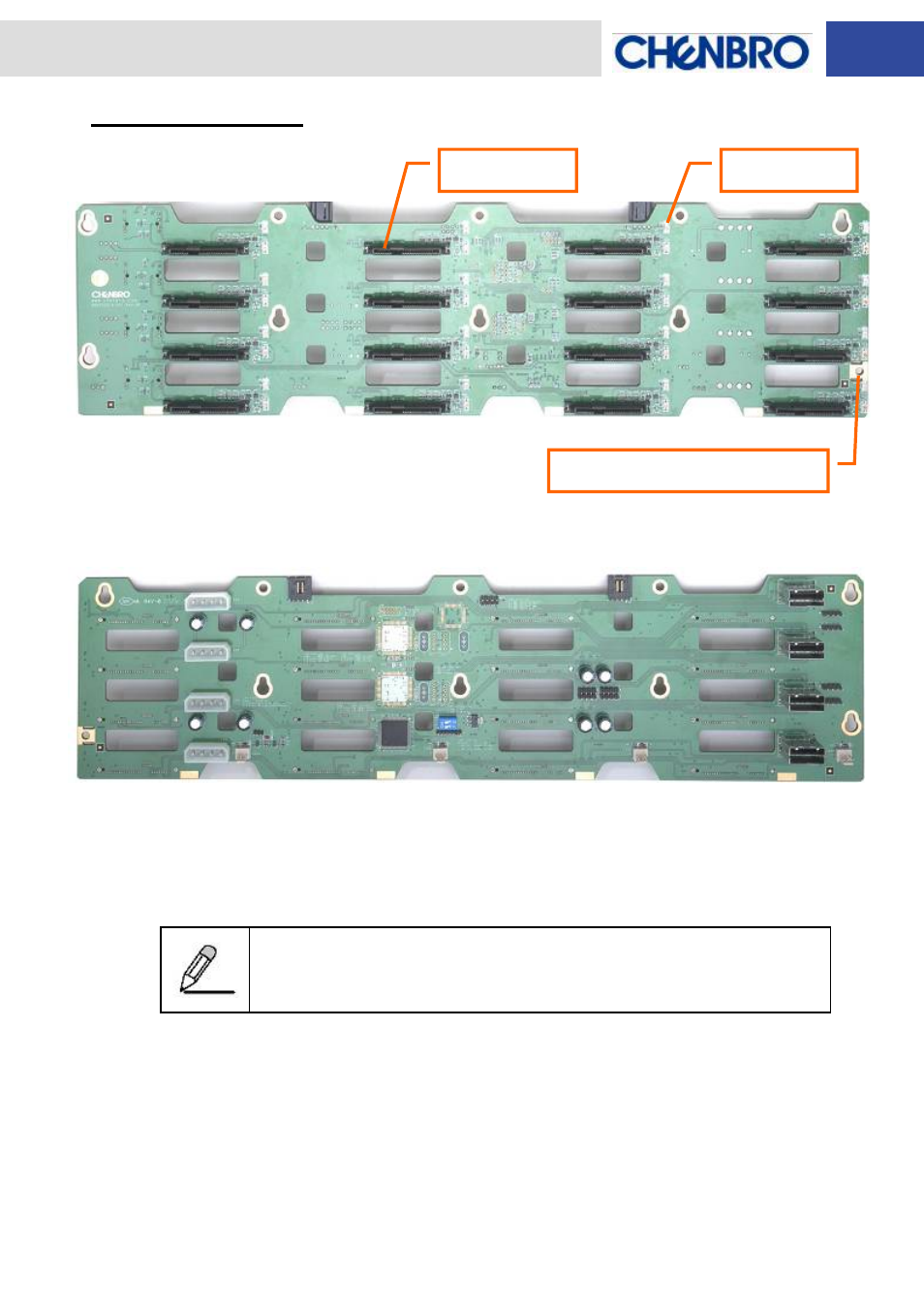

Backplane Layout

Front view ( HDD slot IN )

Rear View ( Host Connectors IN )

[CN011~CN0161]

: Connect to 22-pin SATA-II or 29-pin SAS HDD 1~16

[CN1-4]

: HDD 1~4 Failure Signal Pin Header

[CN5-8]

: HDD 5~8 Failure Signal Pin Header

[CN9-12]

: HDD 9~12 Failure Signal Pin Header

[CN13-16]

: HDD 13~16 Failure Signal Pin Header

Connect the 4-pin HDD LED cable (26H113322-001) from CN2 to the

CATHODE of the HDD failure connector on RAID card. Refer to the RAID

card’s user manual for the detail pin definition.

[ACT_CN1-4 / ACT_CN5-8 / ACT_CN9-12 / ACT_CN13-16]

:

HDD 1~16 Additional Activity Signal Pin Header (From RAID Card)

[FAN1 / FAN2 / FAN3 / FAN4]

: 3-pin Fan connectors

[CN1 / CN2 / CN3 / CN4]

: Standard 4-pin Power connectors

[PC1]

: 4-pin Power connector for Optical Drive

[PC2]

: 4-pin Power connector for FDD

[CN5]

: Fan Signal Pin Header (connecting to LED Board)

CN15

PC2

CN011~CN161

LD011~LD161

Backplane Bracket Mounting Hole

PC1

CN18

CN25

CN28

Fan1

CN1-4

CN5-8

CN9-12

CN13-16

Fan2

Fan3

Fan4

CN1

CN2

CN3

CN4

SW1

CN5

ACT_CN

1-16

HDD1

HDD5

HDD9

HDD13

HDD2

HDD6

HDD10

HDD14

HDD3

HDD7

HDD11

HDD15

HDD4

HDD8

HDD12

HDD16

JP1
