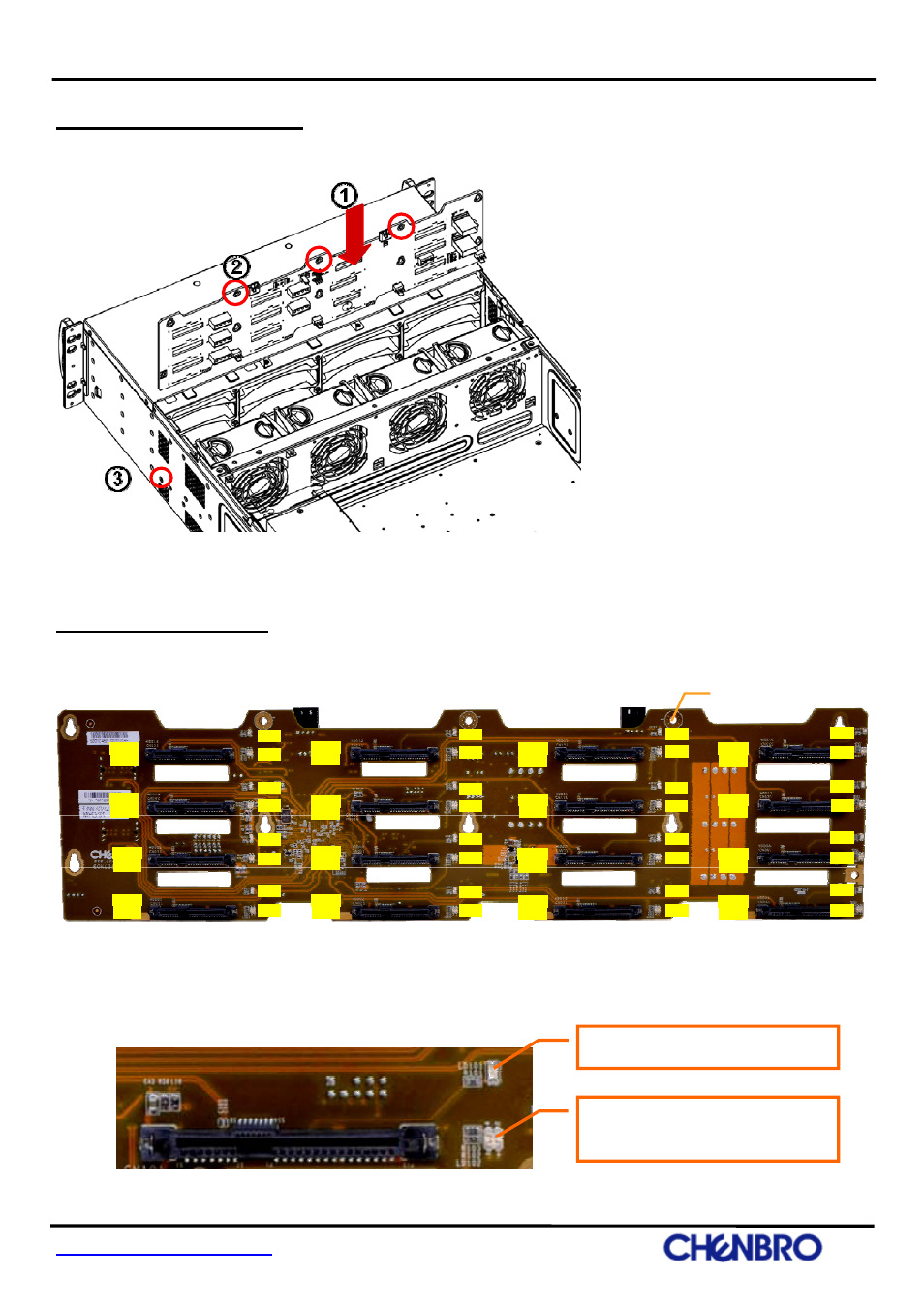

Backplane Assembly
Backplane Layout
Front view (HDD slot IN)
[CN011~CN161]
: Connect to 22-pin SATA-II or 29-pin SAS HDD 1~16
[LD011~LD161]
: HDD Status Indictor LED
HDD01
CN011
HDD05
CN051
HDD09
CN091
HDD13
CN131
HDD02
CN021
HDD06
CN061
HDD10
CN101
HDD14
CN141
HDD03
CN031
HDD07
CN071
HDD11
CN111
HDD15
CN151
HDD04
CN041
HDD08
CN081
HDD12
CN121
HDD16
CN161
Backplane Bracket
Mounting Hole
LD161
LD162
LD121
LD122
LD081
LD082
LD041
LD042
LD151
LD152
LD111
LD112
LD071
LD072
LD031
LD032
LD141
LD142
LD101
LD102
LD061
LD062
LD021
LD022
LD131
LD132
LD091
LD092
LD051
LD052
LD011
LD012
Blue
LED On - HDD Power On
Green
LED On - HDD active
Red
LED On - HDD failure
1. Insert backplane into chassis
2. Attach 3 screws on back.
3. Attach 1 screw on side.
