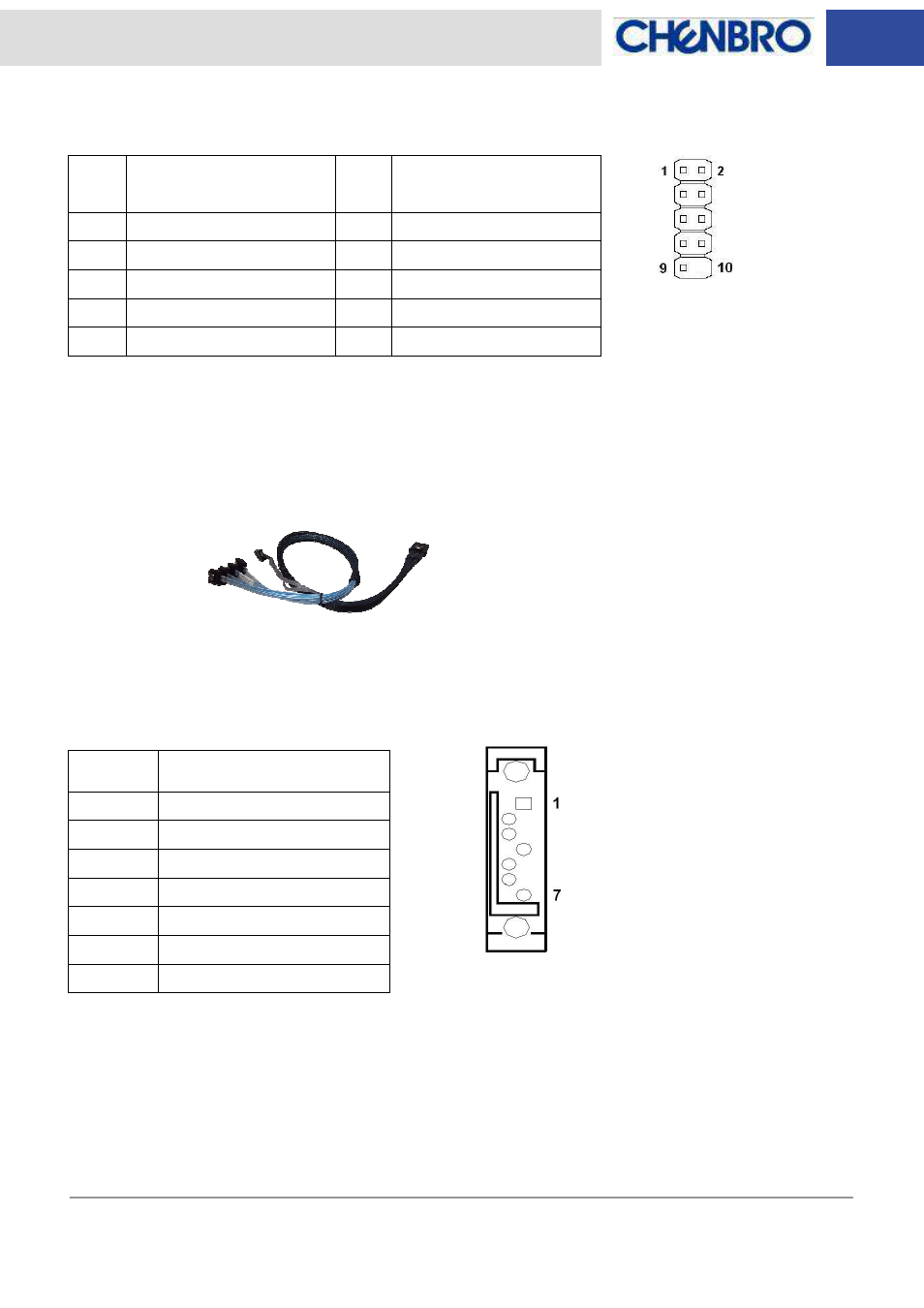

SGPIO SIGNAL CONNECTOR (CN05 & CN06)
Remarks:
CN05 for HDD connector CH11 ~ CH41
CN06 for HDD connector CH51 ~ CH81
Recommend SAS/SATA cable with SGPIO side band supporting as below,
HOST IN Connector (CH12, CH22, CH32, CH42, CH52, CH62, CH72, CH82)
Pin
NO.
Descriptions
Pin
NO.
Descriptions
1
SGPIO DATA INPUT
2
NC
3
SGPIO DATA OUTPUT
4
GND
5
GND
6
SGPIO LOAD
7
CONTROL TYPE
8
SGPIO CLOCK
9
NC
10
KEY PIN
Pin NO.
Descriptions
1
GND
2
RP
3
RN
4
GND
5
TN
6
TP
7
GND
mini SAS SFF-8087 to 4 SATA with side band
(P/N: 26H12323601A0)
