6-Port 3Gb/s Mini-SAS Backplane 80H10321709A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
9
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m
Fabricate sequence

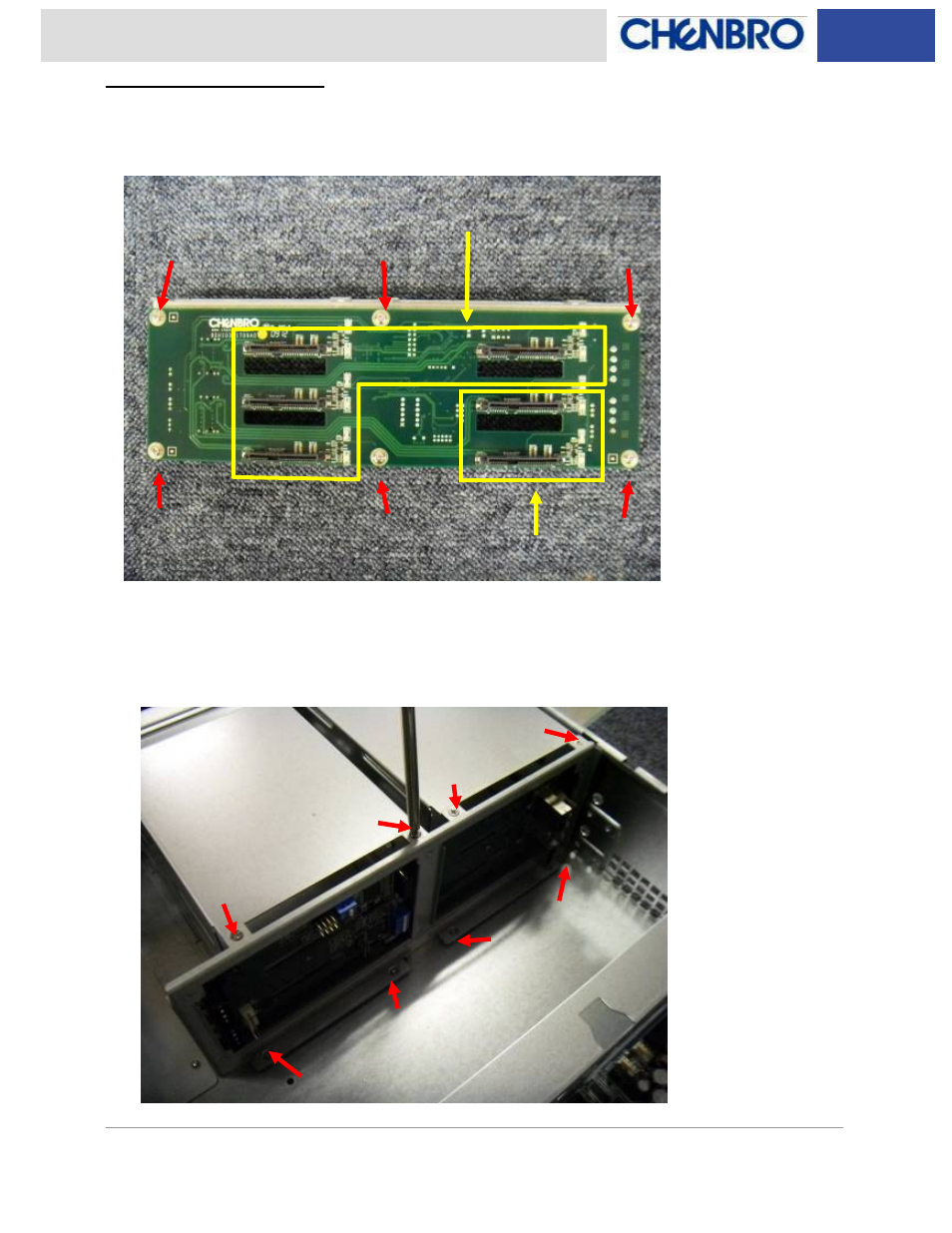

1. Screw the backplane with the bracket.
Note: HDD grouping definition responds to above yellow mark
2. Screw the backplane bracket with the hard drive cage.
CN1
CN2
