LED Board 80H033216-004 ver. 1.2~1.3
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
www
.chenbr
o.com

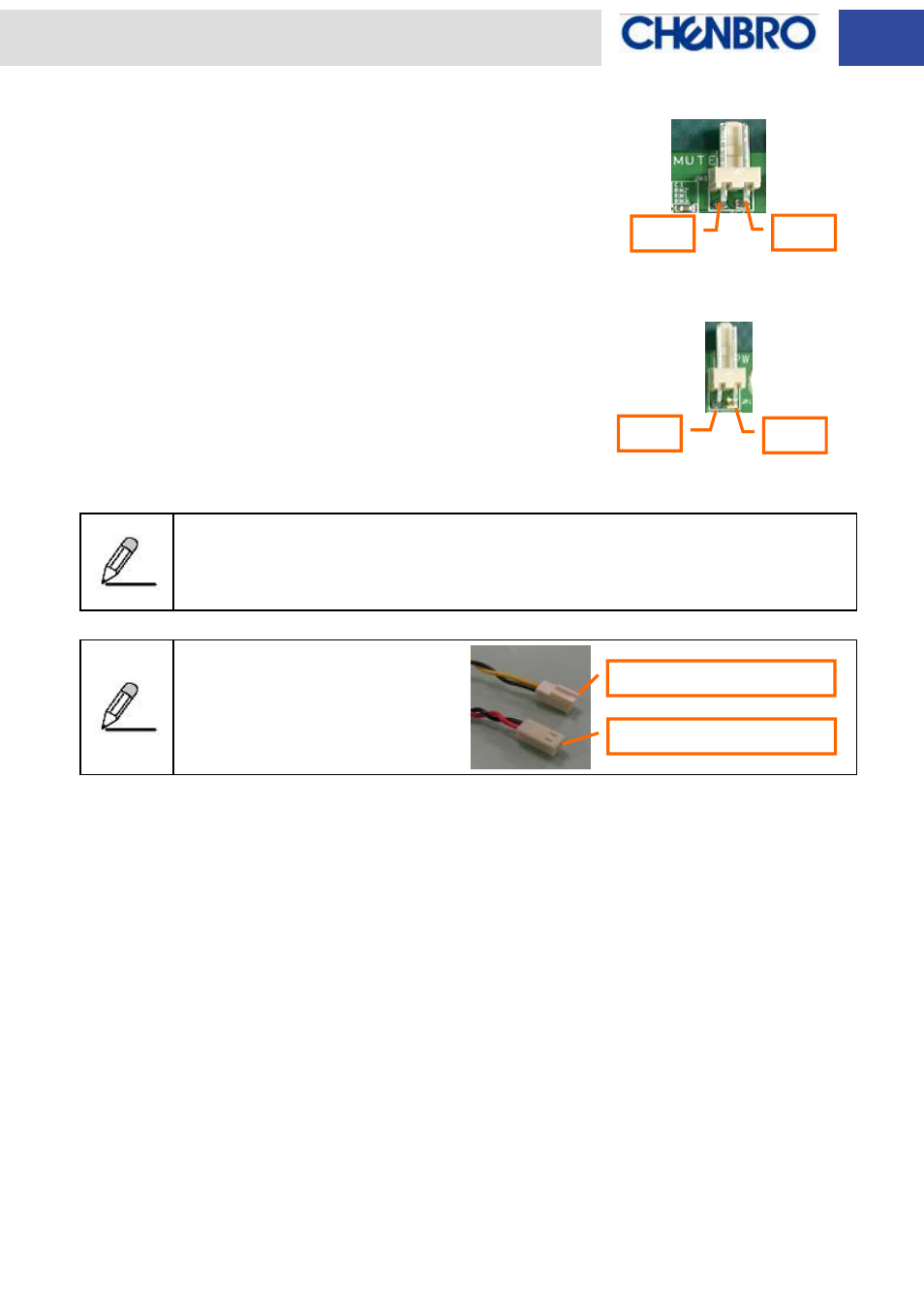

Power Supply Alarm Mute Connector Definition
Pin 1: Ground
Pin 2: Alarm mute signal output to PSU (Active low)
Power Supply Alarm Signal Connector Definition
Pin 1: Ground
Pin 2: PSU fail signal (TTL) input from PSU (Active low)
Only redundant PSU come with the failure alarm and alarm mute reset control via signal
connector. Make sure the redundant PSU that user applied come with the connectors
above.
This picture shows the standard
“2510 2-pin” type PSU alarm signal
connectors which fitting Chenbro
LED board.
Pin 1 Pin 2
Pin 1 Pin 2
Mute (Yellow & Black wire)
TTL (Red & Black wire)
