Input
Ground
Lift
Input Ground Lift in position:
grounded
LINK B Input
Channel B
3
2 2
3 3
2 2
3
To
Channel B
To
Channel A
Input
Channel A
LINK A
SWITCH OFF THE AMPLIFIER
BEFORE CHANGING MODES
3 INST
ALL
ATION
USER MANUAL
TECTON POWER AMP SERIES P.4
3.7 Mode Selector
The switch on the rear panel changes the operating mode.
WARNING!
Switch the power switch to the Off position to make changes on the Mode Selector.
When the amplifier is switched on again, the selected mode will operate.
3.8 Wiring
3.8. E.U.I. and XLR Connection

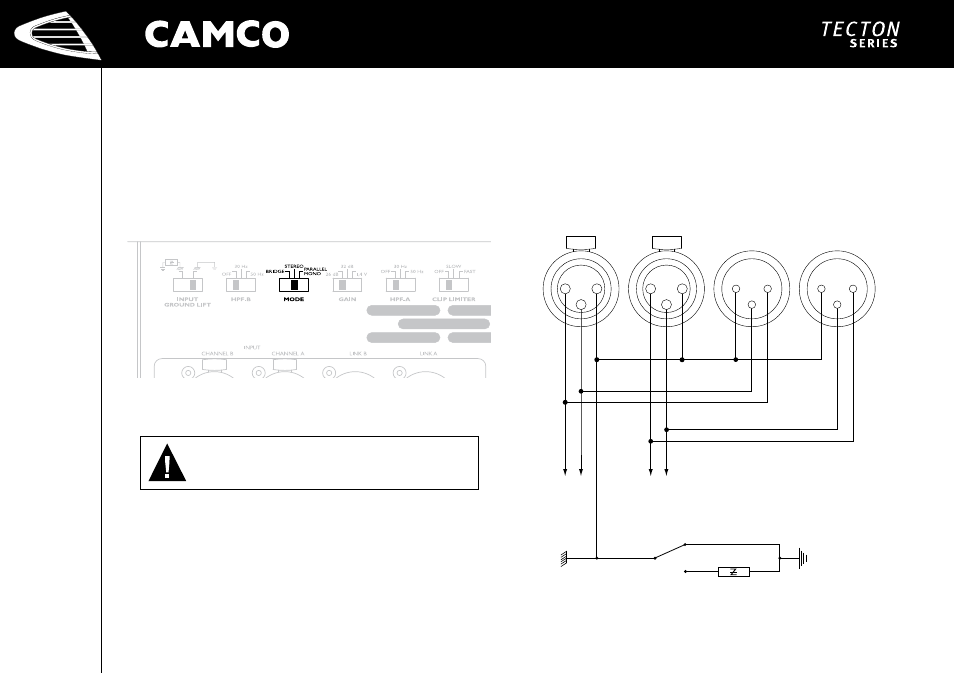

XLR: Pin = Ground (or lifted via 5 Ω resistor) (See 3.5 Ground Lift)
Pin 2 = Hot (inphase)
Pin 3 = Cold (out of phase)
Always use symmetrical (balanced) shielded cable to connect the amplifier.
