Speaker
Page:1 of 5 DRG NO: BS/TES01.194A
Rev. Drawn Date Note
www.be-star.com [email protected]
张秀琴
BLS50-1-08H18.2BW080J LF
BLS50-1-08H18.2BW080J LF
1.Technical Terms

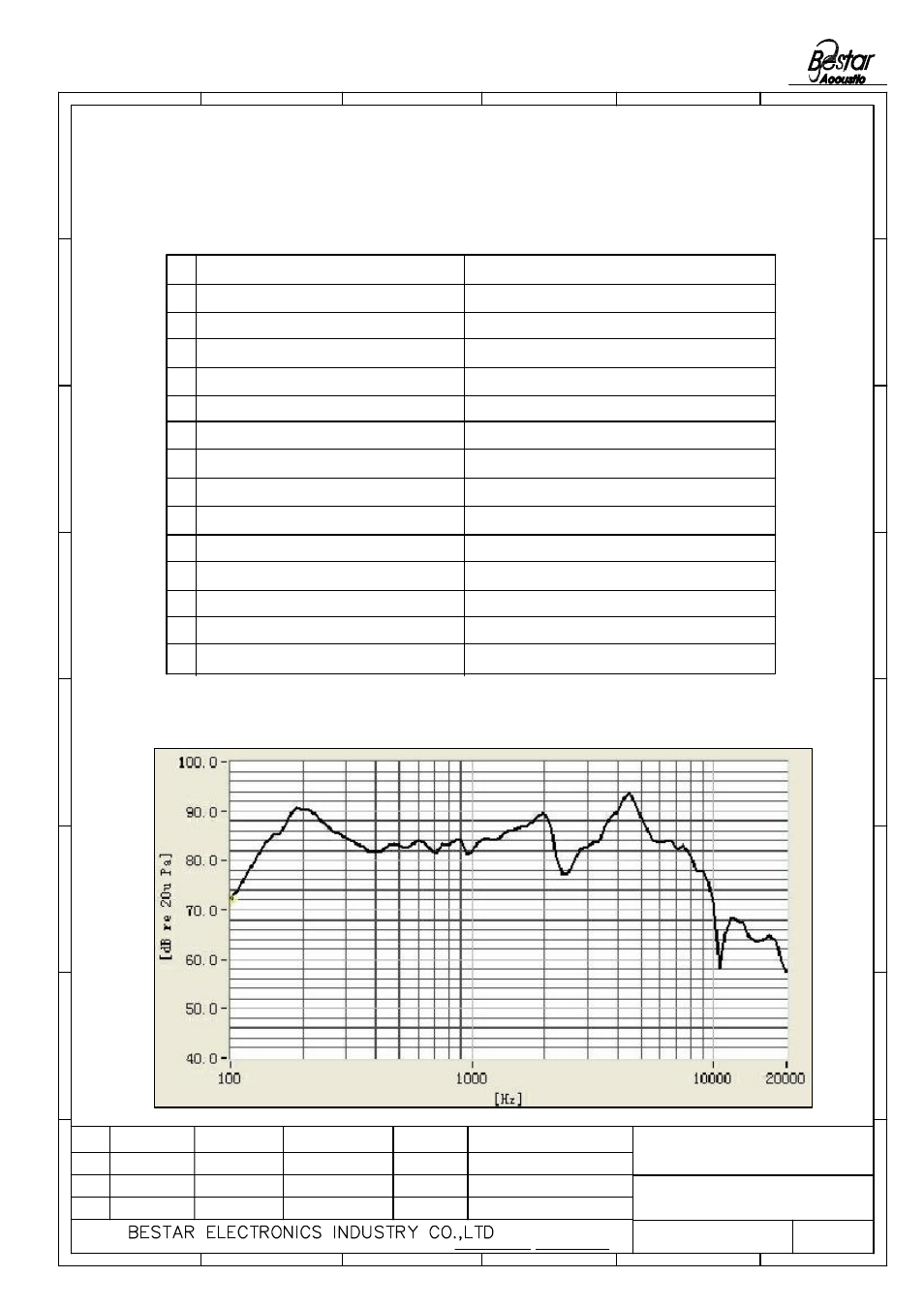

2.FrequencyResponse
A
No. Item Specifications
1. Impedance at 1KHz 8 ±1.6 Ω
2. Resonance frequency 200 ±40Hz
3. Operating frequency range 300...5000Hz
4. Rated input power 1W
5. Maximum input power 2W
6. Buzzs & Rattles(at sine wave2V) must be normal
7. T.H.D(frequency:500Hz,at :0.1w) <5%
8. SPL(1m/1W,at 1kHz) 80 ±3dB
9. Magnet material Ferrite
10. Connection terminals Soldertages(acc.DIN46244)
dimension 2.8x0.5mm
11. Operating temperature -10...+40 °C
12. Storage temperature -25...+55 °C
13. Weight 48g
