1. Characteristics
1.1 Electrical and Mechanical Characteristics
No. Item Specification
1. Dimension Ø20x4.5 (mm)
2. AC Impedance 8Ω ± 15% at 2KHz
3. Rated Input Power 0.8W
4. Maximum Input Power 1.2W
5. Resonance Frequency 800Hz ± 20%
6. Frequency Response F0~10KHz
7. S.P.L 88 ± 3dB/0.1W /0.1m at 1.0KHz (0dB SPL=20μPa)
8. T.H.D ≤15% (0.1W,at 1KHz)
9. Buzzes & Rattles Must be normal at sine wave 2.53Vrms
10. Operating Temperature -20~+ 60
° C
11. Storage Temperature -30~+ 70
° C
12. Polarity Positive voltage to (+),Diaphragm moves forward
T
h
is
p
ri
n
t
and
i
n
fo
rm
a
ti
on
t
he
re
i
n
a
re
p
rop
ri
e
ta
ry
t
o
B
e
s
ta
r E
le
c
tr
on
ics
I
ndu
s
tr
y
C
o
.,
L
td
.
and
s
ha
ll
no
t
be
u
s
ed
i
n
w
ho
le
o
r
in
p
a
rt
w
it
hou
t
it
s
wr
itt
en
c
on
tent
D
C
E
F
G
D
C
E
F
G
6 5 4 3 2 1
BMS20-11C-08H4.5RW020 LF

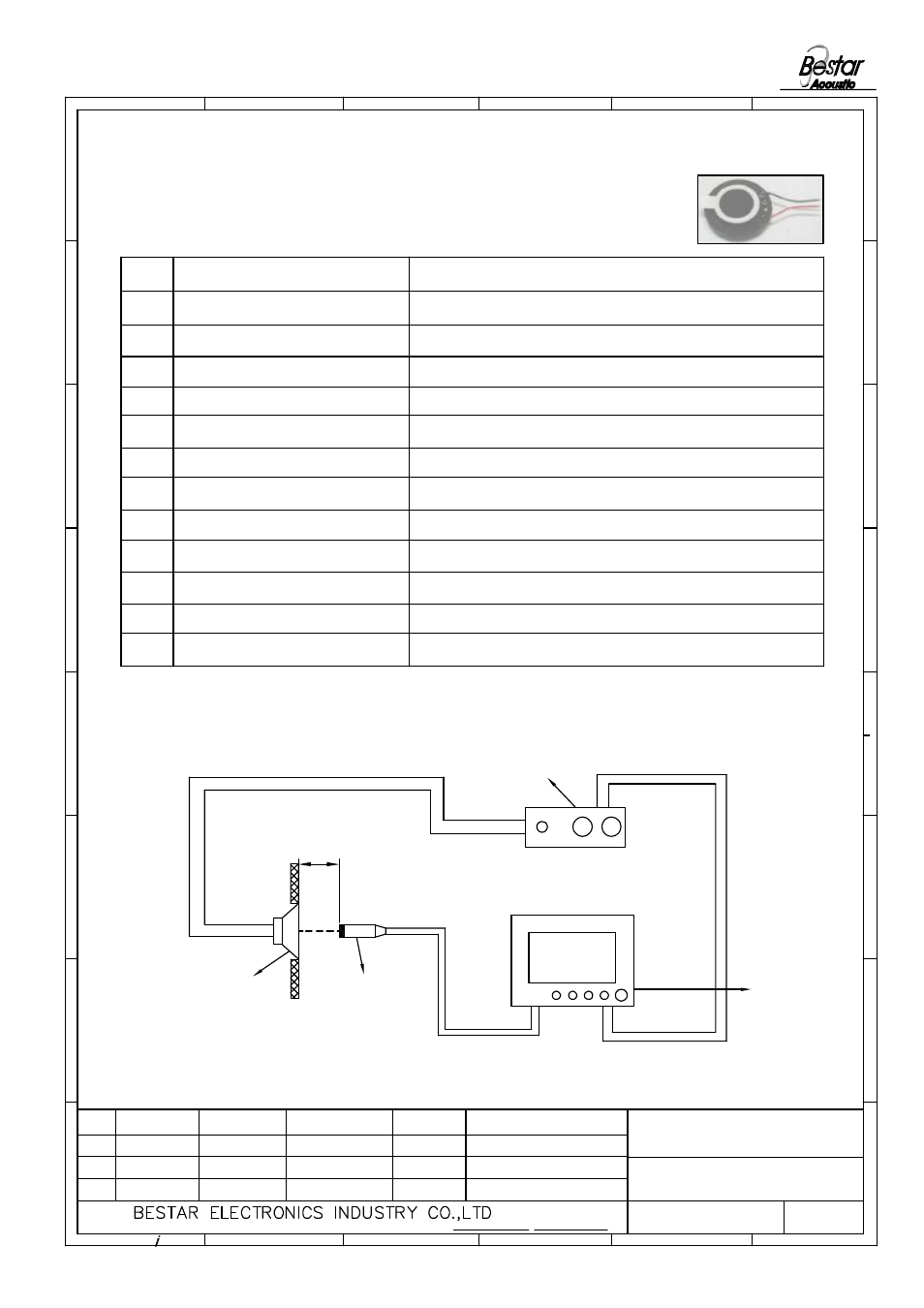

1.2 Test Method
Speaker
Digital Audio Analysis System
Microphone
Audio
Analyser
Power Amplifier
10cm
0
.8
9
V
rm
s
(s
in
e
w
a
v
e)
