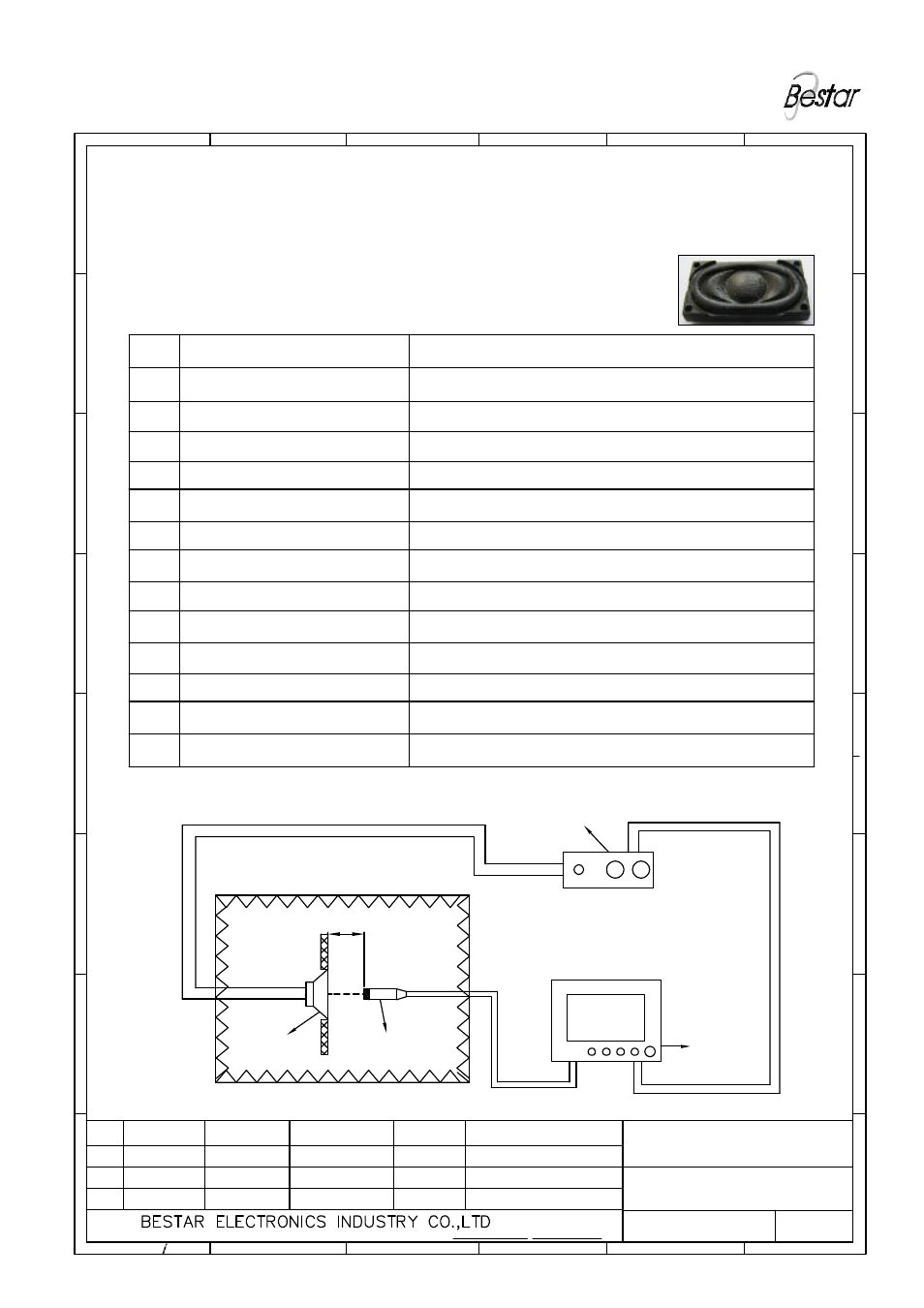

2. Characteristics
2.1 Electrical and Mechanical Characteristics
No. Item Specification
1. Dimension 25 x 14 x 5 (mm)
2. AC Impedance 8
Ω
± 15% at 1.5KHz
3. Rated Input Power 1.0W
4. Maximum Input Power 1.5W
5. Resonance Frequency
700Hz
± 20%
6. Frequency Response F0~20KHz
7. S.P.L 81± 3dB/1W /0.5m at 0.8,1.0,1.2,1.5KHz average
8. T.H.D ≤
5%
at 0.1W/1KHz
9. Buzzes & Rattles Must be normal at sine wave 2.83Vrms
10. Polarity Positive voltage to (+),Diaphragm moves forward
11. Operating Temperature -20~+ 65
° C
12. Storage Temperature -20~+ 70
° C
13. Weight ~2.1g
