B. Install Camera with Mount Kit
1) Make a cable entry hole on the wall/ ceiling to insert the cable(s).
2) Mount the Speed Dome camera according to the “Speed Dome
Mounting Accessories Installation Guide”.
3) Attach the waterproof rubber to the selected mount kit.
4) Route the Ethernet and I/O cables through the top holder and join
the selected mount kit with supplied screws and washers. Then
adjust the Waterproof Rubber over the joint.
5) Connect the Ethernet and I/O cables and hook the safety wired to
the camera.
6) Attach the camera to the top cover with the supplied screw and
washers.

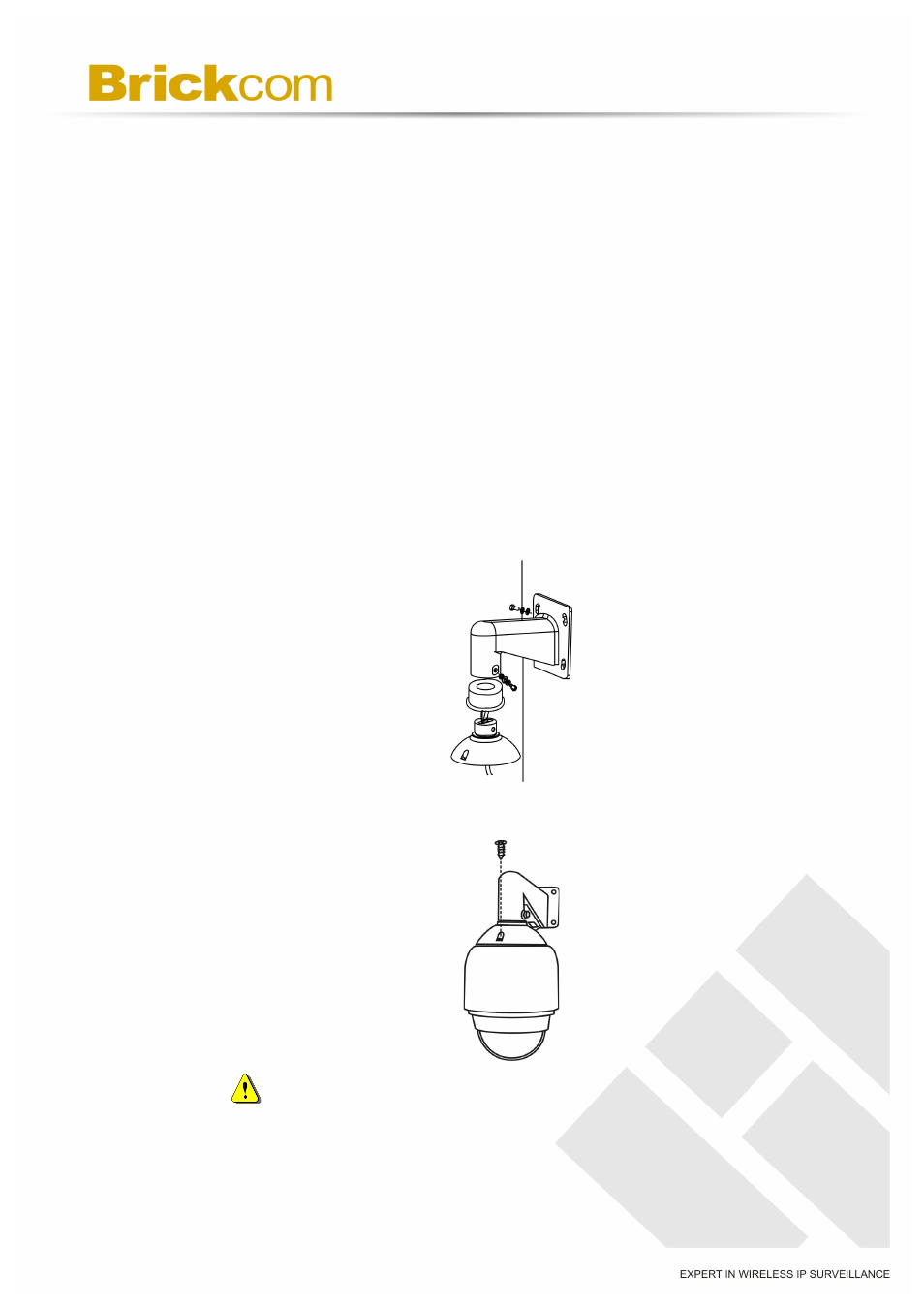

Wall Mounting: Pendant Mount (mounting example)
NOTE - Refer to the mounting instruction in the “Speed Dome
Mounting Accessories Installation Guide” for more details.
