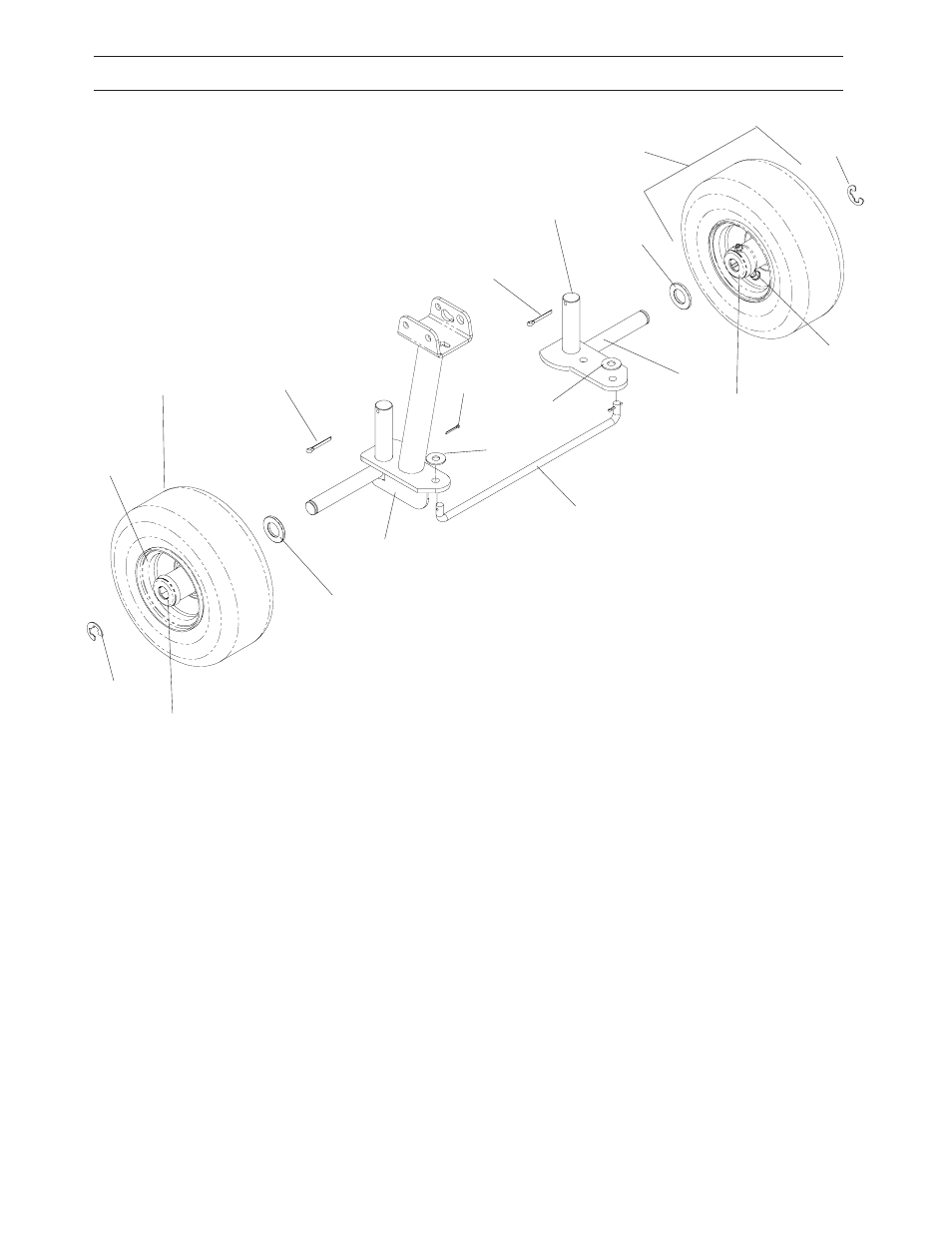

STEERING
ITEM PART NO. QTY. DESCRIPTION
1 ........ 109740 ........ 1 ........ ARM WELDMENT, RIGHT
2 ........ 109525 ........ 1 ........ STEERING ROD
3 ........ 990517 ........ 2 ........ WASHER, 3/8
4 ........ 990037 ........ 2 ........ PIN, COTTER, 3/32 X 3/4
5 ........ 109742 ........ 1 ........ ARM WELDMENT, LEFT
6 ........ 990654 ........ 2 ........ COTTER PIN, 5/32 X 1 1/4
7 ........ 109333 ........ 2 ........ WASHER, 3/4, SAE
8 ........ 102454 ........ 2 ........ E-RING, 3/4”
9 ........ 104556 ........ 2 ........ WHEEL ASSEMBLY
10 ...... 101905 ........ 1 ........ TIRE
11 ...... 104618 ........ 1 ........ RIM
12 ...... 912234 ........ 1 ........ AIR VALVE
13 ...... 923557 ........ 1 ........ ENDCAP
14 ...... 977356 ........ 1 ........ NOTCHED ENDCAP
.......... 977353 ........ 2 ........ ROLLER BEARING (NOT SHOWN)
