BCM9745P-44
Microphone
6
7
Frequency Response 20Hz-20kHz
Rate Voltage 2.5V
8
9

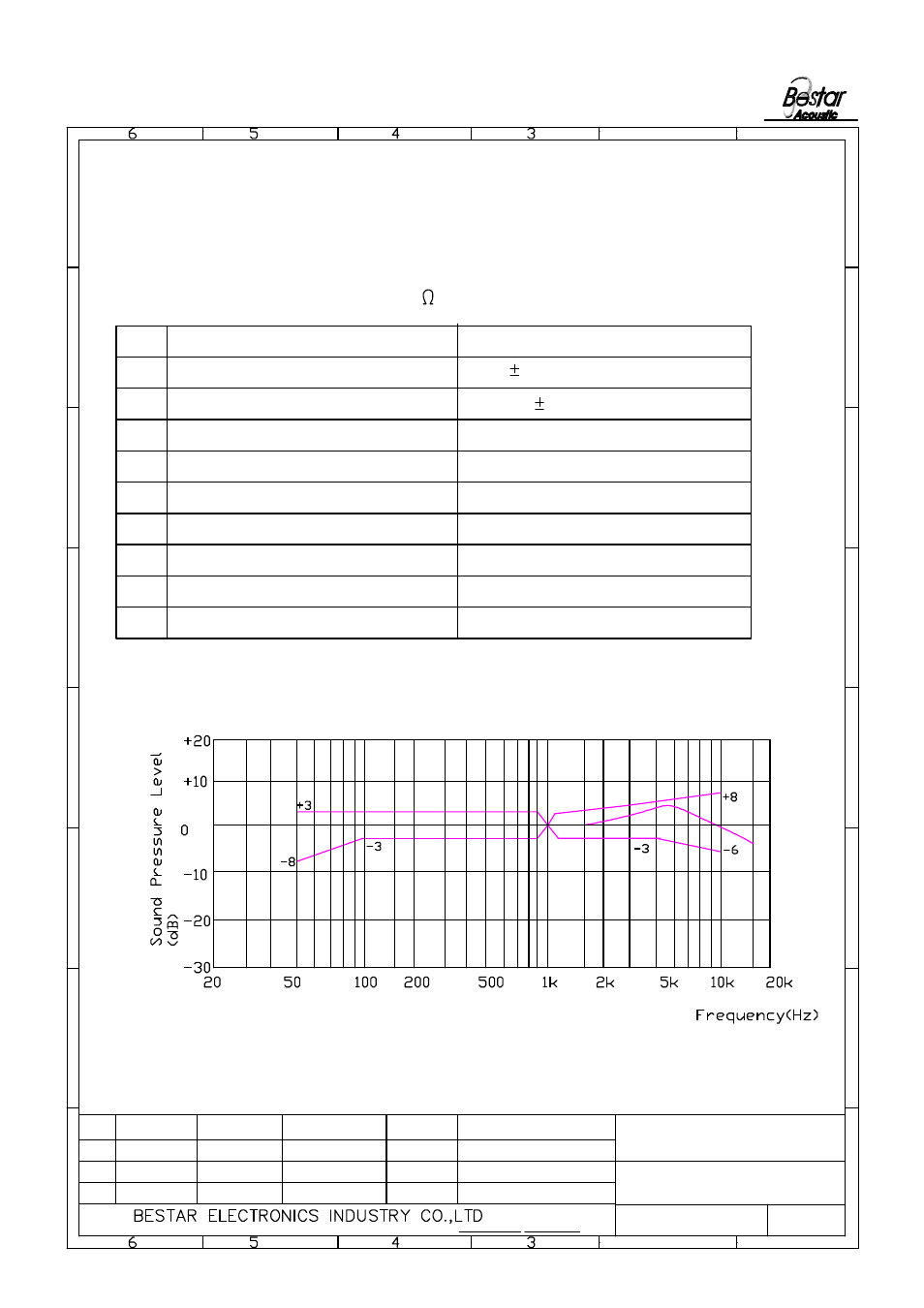

★Frequency Resonse Curve
Decreaing Voltage characteristic -3dB(V
s
=1.5V)
Operating Voltage 1.5-10V
No. Item Specifications
1 Sensitivity -44 3dB(0dB=1V/Pa,1kHz)
2 Impedance 2.2K Ω 30% at1kHz
3 Directional Omnidirectional
4 S/N Ratio more than60dB(0dB=1V/Pa,1kHz)
5 Max. Input Sound Level 100dB S.P.L
1. Characteristics
Test Condition (Vs=2.5V RL=2.2K Ta=20 °c R.H.=65%)
